ACE_Process_Manager Class Reference

Manages a group of processes. More...

#include <Process_Manager.h>

Inheritance diagram for ACE_Process_Manager:

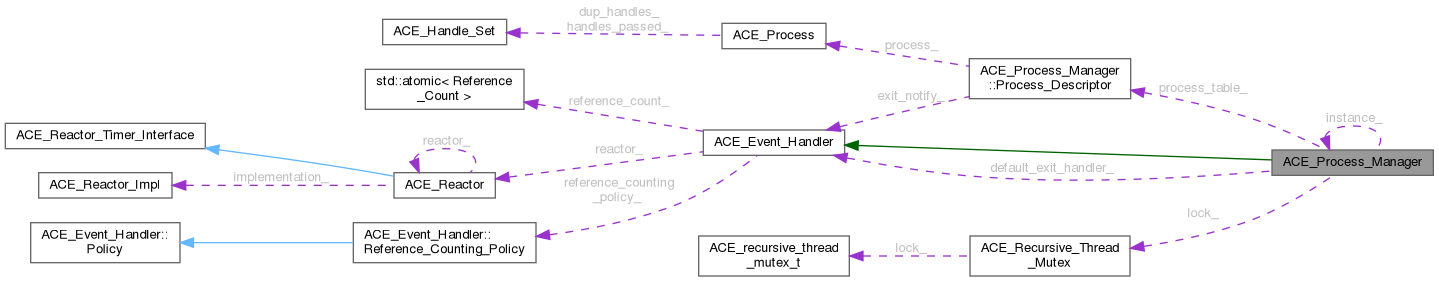

Collaboration diagram for ACE_Process_Manager:

Classes
struct	Process_Descriptor
	Information describing each process that's controlled by an ACE_Process_Manager. More...

Public Types
enum	{ DEFAULT_SIZE = 100 }

Public Member Functions
Initialization and termination methods
	ACE_Process_Manager (size_t size=ACE_Process_Manager::DEFAULT_SIZE, ACE_Reactor *reactor=0)
int	open (size_t size=ACE_Process_Manager::DEFAULT_SIZE, ACE_Reactor *r=0)
int	close ()
	Release all resources. Do not wait for processes to exit.
virtual	~ACE_Process_Manager ()
Process creation methods
pid_t	spawn (ACE_Process *proc, ACE_Process_Options &options, ACE_Event_Handler *event_handler=0)
pid_t	spawn (ACE_Process_Options &options, ACE_Event_Handler *event_handler=0)
int	spawn_n (size_t n, ACE_Process_Options &options, pid_t *child_pids=0, ACE_Event_Handler *event_Handler=0)
Process synchronization operations
int	terminate (pid_t pid)
int	terminate (pid_t pid, int sig)
int	wait (const ACE_Time_Value &timeout=ACE_Time_Value::max_time)
template<class Rep , class Period >
int	wait (const std::chrono::duration< Rep, Period > &timeout)
pid_t	wait (pid_t pid, const ACE_Time_Value &timeout, ACE_exitcode *status=0)
template<class Rep , class Period >
pid_t	wait (pid_t pid, const std::chrono::duration< Rep, Period > &timeout, ACE_exitcode *status=0)
pid_t	wait (pid_t pid, ACE_exitcode *status=0)

Static Public Member Functions
Singleton access and control
static ACE_Process_Manager *	instance ()
	Get pointer to a process-wide ACE_Process_Manager.
static ACE_Process_Manager *	instance (ACE_Process_Manager *)
static void	close_singleton ()
	Delete the dynamically allocated singleton.
static void	cleanup (void *instance, void *arg)

Friends
class	ACE_Process_Control

Utility methods
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Process_Descriptor *	process_table_
	Vector that describes process state within the Process_Manager.
size_t	max_process_table_size_
size_t	current_count_
	Current number of processes we are managing.
ACE_Event_Handler *	default_exit_handler_
ACE_Recursive_Thread_Mutex	lock_
	This lock protects access/ops on process_table_.
static ACE_Process_Manager *	instance_ = 0
	Singleton pointer.
static bool	delete_instance_ = false
int	register_handler (ACE_Event_Handler *event_handler, pid_t pid=ACE_INVALID_PID)
int	remove (pid_t pid)
size_t	managed () const
	Return the number of managed processes.
int	set_scheduler (const ACE_Sched_Params &params, pid_t pid)
int	set_scheduler_all (const ACE_Sched_Params &params)
void	dump () const
	Dump the state of an object.
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
int	resize (size_t)
	Resize the pool of Process_Descriptors.
ssize_t	find_proc (pid_t process_id)
ssize_t	find_proc (ACE_HANDLE process_handle)
int	insert_proc (ACE_Process *process, ACE_Event_Handler *event_handler=0)
int	append_proc (ACE_Process *process, ACE_Event_Handler *event_handler=0)
int	remove_proc (size_t n)
int	notify_proc_handler (size_t n, ACE_exitcode status)

Additional Inherited Members
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.
enum	{   LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) ,   WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) ,   TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) ,   ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority () const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference ()
	Increment reference count on the handler.
virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.
Static Protected Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
	Performs the inverse of the register_stdin_handler() method.
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

Manages a group of processes.

This class allows applications to control groups of processes, similar to the way ACE_Thread_Manager controls groups of threads. Naturally, it doesn't work at all on platforms, such as VxWorks or pSoS, that don't support multiple processes. There are two main ways of using ACE_Process_Manager, depending on how involved you wish to be with the termination of managed processes. If you want processes to simply go away when they're finished, register the ACE_Process_Manager with an ACE_Reactor that can handle notifications of child process exit:

ACE_Process_Manager mgr;
// ...
mgr.open (100, ACE_Reactor::instance ());

In this usage scenario, the ACE_Process_Manager will clean up after any processes that it spawns. (On Unix, this means executing a wait(2) to collect the exit status and avoid zombie processes; on Win32, it means closing the process and thread HANDLEs that are created when CreateProcess is called.)

Note

When you register a ACE_Process_Manager with a ACE_Reactor, the reactor's notification pipe is used to help reap the available process exit statuses. Therefore, you must not use a reactor whose notify pipe has been disabled. Here's the sequence of steps used to reap the exit statuses in this case:

1. The ACE_Process_Manager registers a signal handler for SIGCHLD.
2. The SIGCHLD handler, when invoked, uses the ACE_Reactor's notify() method to inform the ACE_Reactor to wake up.
3. The ACE_Reactor calls the ACE_Process_Manager's handle_input() method; this happens synchronously, not in signal context.
4. The handle_input() method collects all available exit statuses.

If, on the other hand you want to wait "in line" to handle the terminated process cleanup code, call one of the wait functions whenever there might be managed processes that have exited.

Note that in either case, ACE_Process_Manager allows you to register an ACE_Event_Handler to be called when a specific spawned process exits, or when any process without a specific ACE_Event_Handler exits. When a process exits, the appropriate ACE_Event_Handler's handle_input() method is called; the ACE_HANDLE passed is either the process's HANDLE (on Windows), or its pid cast to an ACE_HANDLE (on POSIX). It is also possible to call the wait() functions even when the ACE_Process_Manager is registered with a reactor.

Note

Be aware that the wait functions are "sloppy" on Unix, because there's no good way to wait for a subset of the children of a process. The wait functions may end up collecting the exit status of a process that's not managed by the ACE_Process_Manager whose wait() you invoked. It's best to only use a single ACE_Process_Manager, and to create all subprocesses by calling that manager's spawn() method.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
DEFAULT_SIZE

Constructor & Destructor Documentation

ACE_Process_Manager()

ACE_Process_Manager::ACE_Process_Manager	(	size_t	size = ACE_Process_Manager::DEFAULT_SIZE,
		ACE_Reactor *	reactor = 0 )

Initialize an ACE_Process_Manager with a table containing up to size processes. This table resizes itself automatically as needed. If a reactor is provided, this ACE_Process_Manager uses it to notify an application when a process it controls exits. By default, however, we don't use an ACE_Reactor.

~ACE_Process_Manager()

ACE_Process_Manager::~ACE_Process_Manager ( )

virtual

Destructor releases all resources and does not wait for processes to exit.

Member Function Documentation

append_proc()

int ACE_Process_Manager::append_proc ( ACE_Process * process, ACE_Event_Handler * event_handler = 0 )

private

Append information about a process, i.e., its <process_id> in the process_table_. Each entry is added at the end, growing the table if necessary. Register event_handler to be called back when the process exits.

cleanup()

void ACE_Process_Manager::cleanup ( void * instance, void * arg )

static

Cleanup method, used by the ACE_Object_Manager to destroy the singleton.

close()

int ACE_Process_Manager::close

(

)

Release all resources. Do not wait for processes to exit.

close_singleton()

void ACE_Process_Manager::close_singleton ( )

static

Delete the dynamically allocated singleton.

dump()

void ACE_Process_Manager::dump

(

)

const

Dump the state of an object.

find_proc() [1/2]

ssize_t ACE_Process_Manager::find_proc ( ACE_HANDLE process_handle )

private

Locate the index of the table slot occupied by process_handle. Returns ~0 if process_handle is not in the process_table_

find_proc() [2/2]

ssize_t ACE_Process_Manager::find_proc ( pid_t process_id )

private

Locate the index of the table slot occupied by process_id. Returns -1 if process_id is not in the process_table_

handle_signal()

int ACE_Process_Manager::handle_signal ( int signum, siginfo_t * si = 0, ucontext_t * = 0 )

protectedvirtual

On Unix, this routine is called asynchronously when a SIGCHLD is received. We just tweak the reactor so that it'll call back our <handle_input> function, which allows us to handle Process exits synchronously.

On Win32, this routine is called synchronously, and is passed the HANDLE of the Process that exited, so we can do all our work here

Reimplemented from ACE_Event_Handler.

insert_proc()

int ACE_Process_Manager::insert_proc ( ACE_Process * process, ACE_Event_Handler * event_handler = 0 )

private

Insert a process in the table (checks for duplicates). Omitting the process handle won't work on Win32... Register event_handler to be called back when the process exits.

instance() [1/2]

ACE_Process_Manager * ACE_Process_Manager::instance ( )

static

Get pointer to a process-wide ACE_Process_Manager.

instance() [2/2]

ACE_Process_Manager * ACE_Process_Manager::instance ( ACE_Process_Manager * tm )

static

Set pointer to a process-wide ACE_Process_Manager and return existing pointer.

managed()

size_t ACE_Process_Manager::managed ( ) const

inline

Return the number of managed processes.

notify_proc_handler()

int ACE_Process_Manager::notify_proc_handler ( size_t n, ACE_exitcode status )

private

If there's a specific handler for the Process at index n in the table, or there's a default handler, call it.

open()

int ACE_Process_Manager::open	(	size_t	size = ACE_Process_Manager::DEFAULT_SIZE,
		ACE_Reactor *	r = 0 )

Initialize an ACE_Process_Manager with a table containing up to size processes. This table resizes itself automatically as needed. If a reactor is provided, this ACE_Process_Manager uses it to notify an application when a process it controls exits. By default, however, we don't use an ACE_Reactor.

register_handler()

int ACE_Process_Manager::register_handler	(	ACE_Event_Handler *	event_handler,
		pid_t	pid = ACE_INVALID_PID )

Register an event handler to be called back when the specified process exits. If pid == ACE_INVALID_PID this handler is called when any process with no specific handler exits.

Warning

In multithreaded applications, there is a race condition if a process exits between the time it is spawned and when its handler is registered. To avoid this, register the handler at the time the process is spawned.

remove()

int ACE_Process_Manager::remove

(

pid_t

pid

)

Remove process pid from the ACE_Process_Manager's internal records. This is called automatically by the wait() method if the waited process exits. This method can also be called after calling terminate() if there's no need to wait() for the terminated process.

remove_proc()

int ACE_Process_Manager::remove_proc ( size_t n )

private

Actually removes the process at index n from the table. This method must be called with locks held.

resize()

int ACE_Process_Manager::resize ( size_t size )

private

Resize the pool of Process_Descriptors.

set_scheduler()

int ACE_Process_Manager::set_scheduler	(	const ACE_Sched_Params &	params,
		pid_t	pid )

Sets the scheduling parameters for process identified by pid by passing params, pid to ACE_OS::sched_params().

Return values

0	on success, -1 on failure, and ACE_INVALID_PID when the specified pid is not managed by this ACE_Process_Manager.

set_scheduler_all()

int ACE_Process_Manager::set_scheduler_all

(

const ACE_Sched_Params &

params

)

Sets the scheduling parameters for all the processes managed by this ACE_Process_Manager by passing params to ACE_OS::sched_params().

Return values

0	on success, -1 on failure.

spawn() [1/2]

pid_t ACE_Process_Manager::spawn	(	ACE_Process *	proc,
		ACE_Process_Options &	options,
		ACE_Event_Handler *	event_handler = 0 )

Create a new process with specified options. Register event_handler to be called back when the process exits. The proc object's ACE_Process::unmanage() method is called when the process is removed from ACE_Process_Manager.

On success, returns the process id of the child that was created. On failure, returns ACE_INVALID_PID.

spawn() [2/2]

pid_t ACE_Process_Manager::spawn	(	ACE_Process_Options &	options,
		ACE_Event_Handler *	event_handler = 0 )

Create a new process with the specified options. Register event_handler to be called back when the process exits.

On success, returns the process id of the child that was created. On failure, returns ACE_INVALID_PID.

spawn_n()

int ACE_Process_Manager::spawn_n	(	size_t	n,
		ACE_Process_Options &	options,
		pid_t *	child_pids = 0,
		ACE_Event_Handler *	event_Handler = 0 )

Create n new processes with the same options. If child_pids is non-0 it is expected to be an array of at least n pid_t, which are filled in with the process IDs of the spawned processes. Register event_handler to be called back when each process exits. Returns 0 on success and -1 on failure.

terminate() [1/2]

int ACE_Process_Manager::terminate

(

pid_t

pid

)

Abruptly terminate a single process with id pid using the ACE::terminate_process() method which works on both signal-capable systems and on Windows.

Note

This call is potentially dangerous to use since the process being terminated may not have a chance to cleanup before it shuts down. The process's entry is also not removed from this class's process table. Calling either wait() or remove() after terminate() is advisable.

Return values

0	on success and -1 on failure.

terminate() [2/2]

int ACE_Process_Manager::terminate	(	pid_t	pid,
		int	sig )

Sends the specified signal to the specified process.

Note

This only works on platforms that have signal capability. In particular, it doesn't work on Windows.

Return values

0	on success and -1 on failure.

wait() [1/5]

int ACE_Process_Manager::wait

(

const ACE_Time_Value &

timeout = ACE_Time_Value::max_time

)

Block until there are no more child processes running that were spawned by this ACE_Process_Manager. Unlike the wait() method below, this method does not require a signal handler or use of ACE_OS::sigwait() because it simply blocks synchronously waiting for all the children managed by this ACE_Process_Manager to exit. Note that this does not return any status information about the success or failure of exiting child processes, although any registered exit handlers are called.

Parameters

timeout

Relative time to wait for processes to terminate.

Return values

0	on success; -1 on failure.

wait() [2/5]

template<class Rep , class Period >

int ACE_Process_Manager::wait ( const std::chrono::duration< Rep, Period > & timeout )

inline

See also

wait

wait() [3/5]

pid_t ACE_Process_Manager::wait	(	pid_t	pid,
		ACE_exitcode *	status = 0 )

Wait indefinitely for a single, specified process to terminate. If pid is 0, waits for any of the managed processes (but see the note concerning "sloppy process cleanup on unix"). If pid != 0, this method waits for that process only.

Return values

The	pid of the process which exited, or ACE_INVALID_PID on error.

wait() [4/5]

pid_t ACE_Process_Manager::wait	(	pid_t	pid,
		const ACE_Time_Value &	timeout,
		ACE_exitcode *	status = 0 )

Wait up to timeout for a single specified process to terminate. If pid is 0, this method waits for any of the managed processes (but see the note concerning "sloppy process cleanup on unix"). If pid != 0, waits for that process only.

Parameters

pid	Process ID
timeout	Relative time to wait for process to terminate
status	Exit status of terminated process

Return values

The	pid of the process which exited, 0 if a timeout occurred, or ACE_INVALID_PID on error.

wait() [5/5]

template<class Rep , class Period >

pid_t ACE_Process_Manager::wait ( pid_t pid, const std::chrono::duration< Rep, Period > & timeout, ACE_exitcode * status = 0 )

inline

See also

wait

Friends And Related Symbol Documentation

ACE_Process_Control

friend class ACE_Process_Control

friend

Member Data Documentation

ACE_ALLOC_HOOK_DECLARE

ACE_Process_Manager::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

current_count_

size_t ACE_Process_Manager::current_count_

private

Current number of processes we are managing.

default_exit_handler_

ACE_Event_Handler* ACE_Process_Manager::default_exit_handler_

private

This event handler is used to notify when a process we control exits.

delete_instance_

bool ACE_Process_Manager::delete_instance_ = false

staticprivate

Controls whether the <Process_Manager> is deleted when we shut down (we can only delete it safely if we created it!)

instance_

ACE_Process_Manager * ACE_Process_Manager::instance_ = 0

staticprivate

Singleton pointer.

lock_

ACE_Recursive_Thread_Mutex ACE_Process_Manager::lock_

private

This lock protects access/ops on process_table_.

max_process_table_size_

size_t ACE_Process_Manager::max_process_table_size_

private

Maximum number of processes we can manage (should be dynamically allocated).

process_table_

Process_Descriptor* ACE_Process_Manager::process_table_

private

Vector that describes process state within the Process_Manager.

---

The documentation for this class was generated from the following files:

• Process_Manager.h
• Process_Manager.cpp
• Process_Manager.inl
