ACE_Proactor_Impl Class Reference

A manager for asynchronous event demultiplexing. This class is the base class for all the concrete implementation classes. More...

#include <Proactor_Impl.h>

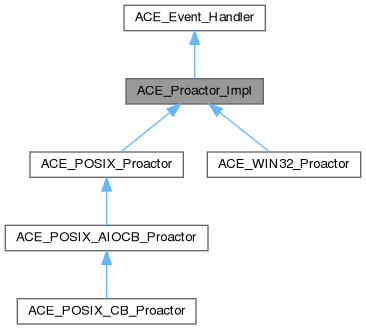

Inheritance diagram for ACE_Proactor_Impl:

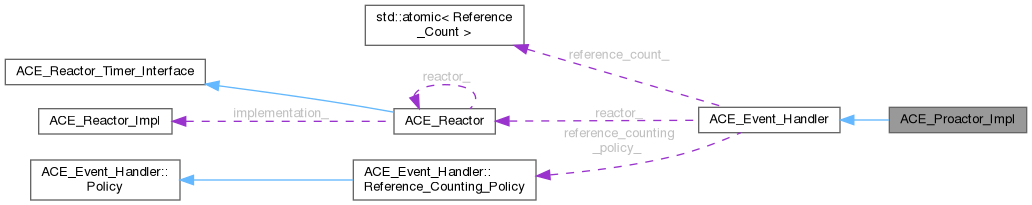

Collaboration diagram for ACE_Proactor_Impl:

Public Member Functions
virtual	~ACE_Proactor_Impl ()
	Virtual destruction.
virtual int	close ()=0
	Close the IO completion port.
virtual int	register_handle (ACE_HANDLE handle, const void *completion_key)=0
virtual int	handle_events (ACE_Time_Value &wait_time)=0
virtual int	handle_events ()=0
virtual int	wake_up_dispatch_threads ()=0
	Add wakeup dispatch threads (reinit).
virtual int	close_dispatch_threads (int wait)=0
	Close all dispatch threads.
virtual size_t	number_of_threads () const =0
	Get number of thread used as a parameter to CreatIoCompletionPort.
virtual void	number_of_threads (size_t threads)=0
	Set number of thread used as a parameter to CreatIoCompletionPort.
virtual ACE_HANDLE	get_handle () const =0
	Get the event handle.
virtual ACE_Asynch_Read_Stream_Impl *	create_asynch_read_stream ()=0
	Create the correct implementation class for doing Asynch_Read_Stream.
virtual ACE_Asynch_Write_Stream_Impl *	create_asynch_write_stream ()=0
	Create the correct implementation class for doing Asynch_Write_Stream.
virtual ACE_Asynch_Read_File_Impl *	create_asynch_read_file ()=0
	Create the correct implementation class for doing Asynch_Read_File.
virtual ACE_Asynch_Write_File_Impl *	create_asynch_write_file ()=0
	Create the correct implementation class for doing Asynch_Write_File.
virtual ACE_Asynch_Accept_Impl *	create_asynch_accept ()=0
	Create the correct implementation class for doing Asynch_Accept.
virtual ACE_Asynch_Connect_Impl *	create_asynch_connect ()=0
	Create the correct implementation class for doing Asynch_Connect.
virtual ACE_Asynch_Transmit_File_Impl *	create_asynch_transmit_file ()=0
	Create the correct implementation class for doing Asynch_Transmit_File.
virtual ACE_Asynch_Read_Dgram_Impl *	create_asynch_read_dgram ()=0
virtual ACE_Asynch_Write_Dgram_Impl *	create_asynch_write_dgram ()=0
virtual ACE_Asynch_Read_Stream_Result_Impl *	create_asynch_read_stream_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.
virtual ACE_Asynch_Write_Stream_Result_Impl *	create_asynch_write_stream_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Write_Stream::Result.
virtual ACE_Asynch_Read_File_Result_Impl *	create_asynch_read_file_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Read_File::Result.
virtual ACE_Asynch_Write_File_Result_Impl *	create_asynch_write_file_result (const ACE_Handler::Proxy_Ptr &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Write_File::Result.
virtual ACE_Asynch_Read_Dgram_Result_Impl *	create_asynch_read_dgram_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.
virtual ACE_Asynch_Write_Dgram_Result_Impl *	create_asynch_write_dgram_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.
virtual ACE_Asynch_Accept_Result_Impl *	create_asynch_accept_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Accept::Result.
virtual ACE_Asynch_Connect_Result_Impl *	create_asynch_connect_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Connect::Result.
virtual ACE_Asynch_Transmit_File_Result_Impl *	create_asynch_transmit_file_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
	Create the correct implementation class for ACE_Asynch_Transmit_File::Result.
virtual ACE_Asynch_Result_Impl *	create_asynch_timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=0)=0
virtual int	post_wakeup_completions (int how_many)=0
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority () const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference ()
	Increment reference count on the handler.
virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{   LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) ,   WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) ,   TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) ,   ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
	Performs the inverse of the register_stdin_handler() method.
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

A manager for asynchronous event demultiplexing. This class is the base class for all the concrete implementation classes.

See the Proactor pattern description at http://www.dre.vanderbilt.edu/~schmidt/PDF/proactor.pdf for more details.

Constructor & Destructor Documentation

~ACE_Proactor_Impl()

ACE_Proactor_Impl::~ACE_Proactor_Impl ( )

virtual

Virtual destruction.

Member Function Documentation

close()

virtual int ACE_Proactor_Impl::close ( )

pure virtual

Close the IO completion port.

Implemented in ACE_POSIX_Proactor, ACE_POSIX_AIOCB_Proactor, and ACE_WIN32_Proactor.

close_dispatch_threads()

virtual int ACE_Proactor_Impl::close_dispatch_threads ( int wait )

pure virtual

Close all dispatch threads.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_accept()

virtual ACE_Asynch_Accept_Impl * ACE_Proactor_Impl::create_asynch_accept ( )

pure virtual

Create the correct implementation class for doing Asynch_Accept.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_accept_result()

virtual ACE_Asynch_Accept_Result_Impl * ACE_Proactor_Impl::create_asynch_accept_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block & message_block, size_t bytes_to_read, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Accept::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_connect()

virtual ACE_Asynch_Connect_Impl * ACE_Proactor_Impl::create_asynch_connect ( )

pure virtual

Create the correct implementation class for doing Asynch_Connect.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_connect_result()

virtual ACE_Asynch_Connect_Result_Impl * ACE_Proactor_Impl::create_asynch_connect_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE connect_handle, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Connect::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_read_dgram()

virtual ACE_Asynch_Read_Dgram_Impl * ACE_Proactor_Impl::create_asynch_read_dgram ( )

pure virtual

Create the correct implementation class for doing Asynch_Read_Dgram.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_read_dgram_result()

virtual ACE_Asynch_Read_Dgram_Result_Impl * ACE_Proactor_Impl::create_asynch_read_dgram_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE handle, ACE_Message_Block * message_block, size_t bytes_to_read, int flags, int protocol_family, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_read_file()

virtual ACE_Asynch_Read_File_Impl * ACE_Proactor_Impl::create_asynch_read_file ( )

pure virtual

Create the correct implementation class for doing Asynch_Read_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_read_file_result()

virtual ACE_Asynch_Read_File_Result_Impl * ACE_Proactor_Impl::create_asynch_read_file_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE handle, ACE_Message_Block & message_block, size_t bytes_to_read, const void * act, u_long offset, u_long offset_high, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Read_File::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_read_stream()

virtual ACE_Asynch_Read_Stream_Impl * ACE_Proactor_Impl::create_asynch_read_stream ( )

pure virtual

Create the correct implementation class for doing Asynch_Read_Stream.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_read_stream_result()

virtual ACE_Asynch_Read_Stream_Result_Impl * ACE_Proactor_Impl::create_asynch_read_stream_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE handle, ACE_Message_Block & message_block, size_t bytes_to_read, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_timer()

virtual ACE_Asynch_Result_Impl * ACE_Proactor_Impl::create_asynch_timer ( const ACE_Handler::Proxy_Ptr & handler_proxy, const void * act, const ACE_Time_Value & tv, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = 0 )

pure virtual

Create the correct implementation object for the Timer result. POSIX_SIG_Proactor will create a Timer object with a meaningful signal number, if you leave the signal number as 0.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_transmit_file()

virtual ACE_Asynch_Transmit_File_Impl * ACE_Proactor_Impl::create_asynch_transmit_file ( )

pure virtual

Create the correct implementation class for doing Asynch_Transmit_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_transmit_file_result()

virtual ACE_Asynch_Transmit_File_Result_Impl * ACE_Proactor_Impl::create_asynch_transmit_file_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer * header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_write_dgram()

virtual ACE_Asynch_Write_Dgram_Impl * ACE_Proactor_Impl::create_asynch_write_dgram ( )

pure virtual

Create the correct implementation class for doing Asynch_Write_Dgram.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_write_dgram_result()

virtual ACE_Asynch_Write_Dgram_Result_Impl * ACE_Proactor_Impl::create_asynch_write_dgram_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE handle, ACE_Message_Block * message_block, size_t bytes_to_write, int flags, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_write_file()

virtual ACE_Asynch_Write_File_Impl * ACE_Proactor_Impl::create_asynch_write_file ( )

pure virtual

Create the correct implementation class for doing Asynch_Write_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_write_file_result()

virtual ACE_Asynch_Write_File_Result_Impl * ACE_Proactor_Impl::create_asynch_write_file_result ( const ACE_Handler::Proxy_Ptr & handler, ACE_HANDLE handle, ACE_Message_Block & message_block, size_t bytes_to_write, const void * act, u_long offset, u_long offset_high, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Write_File::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

create_asynch_write_stream()

virtual ACE_Asynch_Write_Stream_Impl * ACE_Proactor_Impl::create_asynch_write_stream ( )

pure virtual

Create the correct implementation class for doing Asynch_Write_Stream.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

create_asynch_write_stream_result()

virtual ACE_Asynch_Write_Stream_Result_Impl * ACE_Proactor_Impl::create_asynch_write_stream_result ( const ACE_Handler::Proxy_Ptr & handler_proxy, ACE_HANDLE handle, ACE_Message_Block & message_block, size_t bytes_to_write, const void * act, ACE_HANDLE event = ACE_INVALID_HANDLE, int priority = 0, int signal_number = ACE_SIGRTMIN )

pure virtual

Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

Implemented in ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

get_handle()

virtual ACE_HANDLE ACE_Proactor_Impl::get_handle ( ) const

pure virtual

Get the event handle.

Reimplemented from ACE_Event_Handler.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

handle_events() [1/2]

virtual int ACE_Proactor_Impl::handle_events ( )

pure virtual

Block indefinitely until at least one event is dispatched. Dispatch a single set of events. If <wait_time> elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implemented in ACE_POSIX_CB_Proactor, ACE_POSIX_AIOCB_Proactor, ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

handle_events() [2/2]

virtual int ACE_Proactor_Impl::handle_events ( ACE_Time_Value & wait_time )

pure virtual

Dispatch a single set of events. If wait_time elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implemented in ACE_POSIX_CB_Proactor, ACE_POSIX_AIOCB_Proactor, ACE_WIN32_Proactor, and ACE_POSIX_Proactor.

number_of_threads() [1/2]

virtual size_t ACE_Proactor_Impl::number_of_threads ( ) const

pure virtual

Get number of thread used as a parameter to CreatIoCompletionPort.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

number_of_threads() [2/2]

virtual void ACE_Proactor_Impl::number_of_threads ( size_t threads )

pure virtual

Set number of thread used as a parameter to CreatIoCompletionPort.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

post_wakeup_completions()

virtual int ACE_Proactor_Impl::post_wakeup_completions ( int how_many )

pure virtual

Post how_many completions to the completion port so that all threads can wake up. This is used in conjunction with the <run_event_loop>.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

register_handle()

virtual int ACE_Proactor_Impl::register_handle ( ACE_HANDLE handle, const void * completion_key )

pure virtual

This method adds the handle to the I/O completion port. This function is a no-op function for Unix systems.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

wake_up_dispatch_threads()

virtual int ACE_Proactor_Impl::wake_up_dispatch_threads ( )

pure virtual

Add wakeup dispatch threads (reinit).

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

---

The documentation for this class was generated from the following files:

• Proactor_Impl.h
• Proactor_Impl.cpp
