ACE_Notification_Queue Class Reference

Implements a user-space queue to send Reactor notifications. More...

#include <Notification_Queue.h>

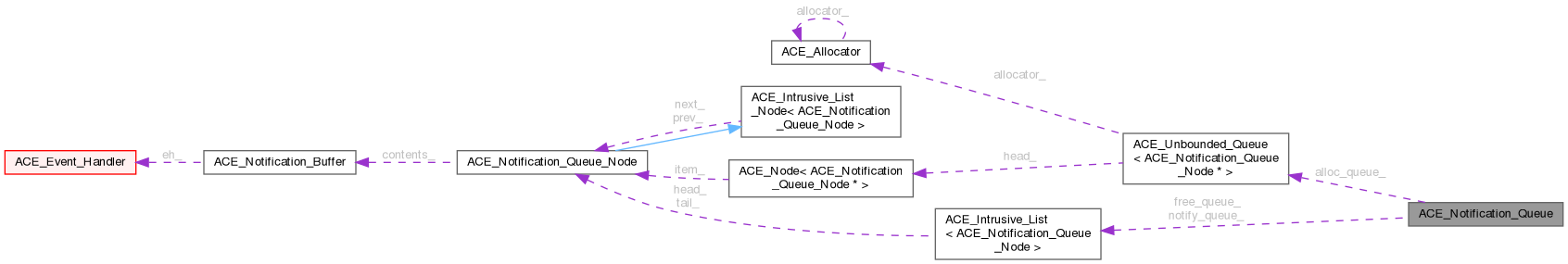

Collaboration diagram for ACE_Notification_Queue:

Public Member Functions
	ACE_Notification_Queue ()
	~ACE_Notification_Queue ()
int	open ()
	Pre-allocate resources in the queue.
void	reset ()
	Release all resources in the queue.
int	purge_pending_notifications (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
	Remove all elements in the queue matching eh and mask.
int	push_new_notification (ACE_Notification_Buffer const &buffer)
	Add a new notification to the queue.
int	pop_next_notification (ACE_Notification_Buffer &current, bool &more_messages_queued, ACE_Notification_Buffer &next)
	Extract the next notification from the queue.

Private Types
typedef ACE_Intrusive_List< ACE_Notification_Queue_Node >	Buffer_List

Private Member Functions
int	allocate_more_buffers ()
	Allocate more memory for the queue.
	ACE_Notification_Queue (const ACE_Notification_Queue &)=delete
	ACE_Notification_Queue (ACE_Notification_Queue &&)=delete
ACE_Notification_Queue &	operator= (const ACE_Notification_Queue &)=delete
ACE_Notification_Queue &	operator= (ACE_Notification_Queue &&)=delete

Private Attributes
ACE_Unbounded_Queue< ACE_Notification_Queue_Node * >	alloc_queue_
Buffer_List	notify_queue_
	Keeps track of all pending notifications.
Buffer_List	free_queue_
	Keeps track of all free buffers.
ACE_SYNCH_MUTEX	notify_queue_lock_
	Synchronization for handling of queues.

Detailed Description

Implements a user-space queue to send Reactor notifications.

The ACE_Reactor uses a pipe to send wake up the thread running the event loop from other threads. This pipe can be limited in size under some operating systems. For some applications, this limit presents a problem. A user-space notification queue is used to overcome those limitations. The queue tries to use as few resources on the pipe as possible, while keeping all the data in user space.

This code was refactored from Select_Reactor_Base.

Member Typedef Documentation

Buffer_List

typedef ACE_Intrusive_List<ACE_Notification_Queue_Node> ACE_Notification_Queue::Buffer_List

private

Constructor & Destructor Documentation

ACE_Notification_Queue() [1/3]

ACE_Notification_Queue::ACE_Notification_Queue

(

)

~ACE_Notification_Queue()

ACE_Notification_Queue::~ACE_Notification_Queue

(

)

ACE_Notification_Queue() [2/3]

ACE_Notification_Queue::ACE_Notification_Queue ( const ACE_Notification_Queue & )

privatedelete

ACE_Notification_Queue() [3/3]

ACE_Notification_Queue::ACE_Notification_Queue ( ACE_Notification_Queue && )

privatedelete

Member Function Documentation

allocate_more_buffers()

int ACE_Notification_Queue::allocate_more_buffers ( )

private

Allocate more memory for the queue.

open()

int ACE_Notification_Queue::open

(

)

Pre-allocate resources in the queue.

operator=() [1/2]

ACE_Notification_Queue & ACE_Notification_Queue::operator= ( ACE_Notification_Queue && )

privatedelete

operator=() [2/2]

ACE_Notification_Queue & ACE_Notification_Queue::operator= ( const ACE_Notification_Queue & )

privatedelete

pop_next_notification()

int ACE_Notification_Queue::pop_next_notification	(	ACE_Notification_Buffer &	current,
		bool &	more_messages_queued,
		ACE_Notification_Buffer &	next )

Extract the next notification from the queue.

Returns

-1 on failure, 1 if a message was popped, 0 otherwise

purge_pending_notifications()

int ACE_Notification_Queue::purge_pending_notifications	(	ACE_Event_Handler *	eh,
		ACE_Reactor_Mask	mask )

Remove all elements in the queue matching eh and mask.

I suggest reading the documentation in ACE_Reactor to find a more detailed description. This is just a helper function.

push_new_notification()

int ACE_Notification_Queue::push_new_notification

(

ACE_Notification_Buffer const &

buffer

)

Add a new notification to the queue.

Returns

-1 on failure, 1 if a new message should be sent through the pipe and 0 otherwise.

reset()

void ACE_Notification_Queue::reset

(

)

Release all resources in the queue.

Member Data Documentation

alloc_queue_

ACE_Unbounded_Queue<ACE_Notification_Queue_Node*> ACE_Notification_Queue::alloc_queue_

private

Keeps track of allocated arrays of type ACE_Notification_Buffer. The idea is to amortize allocation costs by allocating multiple ACE_Notification_Buffer objects at a time.

free_queue_

Buffer_List ACE_Notification_Queue::free_queue_

private

Keeps track of all free buffers.

notify_queue_

Buffer_List ACE_Notification_Queue::notify_queue_

private

Keeps track of all pending notifications.

notify_queue_lock_

ACE_SYNCH_MUTEX ACE_Notification_Queue::notify_queue_lock_

private

Synchronization for handling of queues.

---

The documentation for this class was generated from the following files:

• Notification_Queue.h
• Notification_Queue.cpp
