Proxy for dealing with remote server process managing NET_LOCAL NameBindings. More...

#include <Name_Proxy.h>

Inheritance diagram for ACE_Name_Proxy:

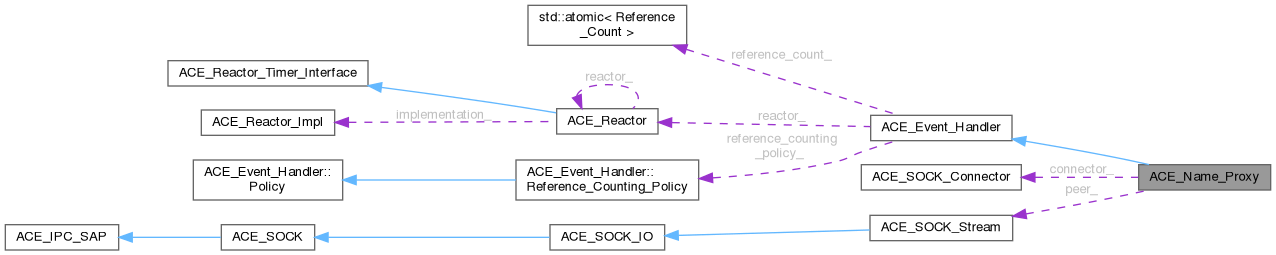

Collaboration diagram for ACE_Name_Proxy:

[legend]

Public Member Functions
	ACE_Name_Proxy ()
	Default constructor.

	ACE_Name_Proxy (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
	Establish binding with the ACE_Name Server at remote_addr.

int	open (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
	Establish binding with the ACE_Name Server at remote_addr.

int	request_reply (ACE_Name_Request &request)
	Perform the request and wait for the reply.

int	send_request (ACE_Name_Request &request)
	Perform the request.

int	recv_reply (ACE_Name_Request &reply)
	Receive the reply.

virtual ACE_HANDLE	get_handle () const
	Obtain underlying handle.

virtual	~ACE_Name_Proxy ()
	Close down the connection to the server.

void	dump () const
	Dump the state of the object;.

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.

virtual int	priority () const

virtual void	priority (int priority)
	Set the priority of the Event_Handler.

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits.

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.

virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.

virtual Reference_Count	add_reference ()
	Increment reference count on the handler.

virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.

Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Private Member Functions
	ACE_Name_Proxy (const ACE_Name_Proxy &)=delete

ACE_Name_Proxy &	operator= (const ACE_Name_Proxy &)=delete

Private Attributes
ACE_SOCK_Connector	connector_
	ACE_Connector factory used to establish connections actively.

ACE_SOCK_Stream	peer_
	Connection to ACE_Name Server peer.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) , WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) , TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) , ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type.

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method.

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

Proxy for dealing with remote server process managing NET_LOCAL NameBindings.

Shields applications from details of interacting with the ACE_Name Server.

Constructor & Destructor Documentation

◆ ACE_Name_Proxy() [1/3]

ACE_Name_Proxy::ACE_Name_Proxy ( )

Default constructor.

◆ ACE_Name_Proxy() [2/3]

ACE_Name_Proxy::ACE_Name_Proxy	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = ACE_Synch_Options::defaults )

Establish binding with the ACE_Name Server at remote_addr.

◆ ~ACE_Name_Proxy()

ACE_Name_Proxy::~ACE_Name_Proxy ( )

virtual

Close down the connection to the server.

◆ ACE_Name_Proxy() [3/3]

ACE_Name_Proxy::ACE_Name_Proxy ( const ACE_Name_Proxy & )

privatedelete

Member Function Documentation

◆ dump()

void ACE_Name_Proxy::dump ( ) const

Dump the state of the object;.

◆ get_handle()

ACE_HANDLE ACE_Name_Proxy::get_handle ( ) const

virtual

Obtain underlying handle.

Reimplemented from ACE_Event_Handler.

◆ open()

int ACE_Name_Proxy::open	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = ACE_Synch_Options::defaults )

Establish binding with the ACE_Name Server at remote_addr.

◆ operator=()

ACE_Name_Proxy & ACE_Name_Proxy::operator= ( const ACE_Name_Proxy & )

privatedelete

◆ recv_reply()

int ACE_Name_Proxy::recv_reply ( ACE_Name_Request & reply )

Receive the reply.

◆ request_reply()

int ACE_Name_Proxy::request_reply ( ACE_Name_Request & request )

Perform the request and wait for the reply.

◆ send_request()

int ACE_Name_Proxy::send_request ( ACE_Name_Request & request )

Perform the request.

Member Data Documentation

◆ connector_

ACE_SOCK_Connector ACE_Name_Proxy::connector_

private

ACE_Connector factory used to establish connections actively.

◆ peer_

ACE_SOCK_Stream ACE_Name_Proxy::peer_
