Automates periodic updating of monitor point classes. More...

#include <Monitor_Admin.h>

Inheritance diagram for ACE::Monitor_Control::Monitor_Point_Auto_Updater:

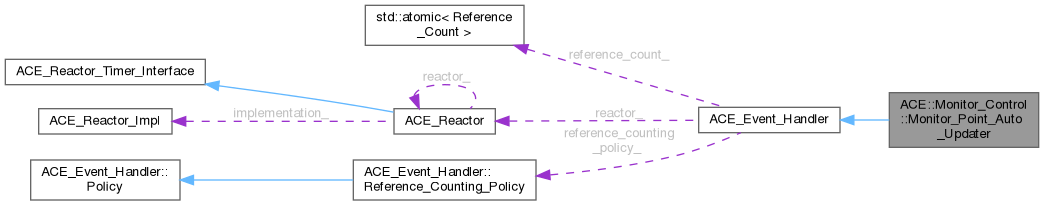

Collaboration diagram for ACE::Monitor_Control::Monitor_Point_Auto_Updater:

[legend]

Public Member Functions
virtual int	handle_timeout (const ACE_Time_Value &interval, const void *monitor_point)
	Override of ACE base class method.

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.

virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.

virtual int	priority () const

virtual void	priority (int priority)
	Set the priority of the Event_Handler.

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).

virtual int	handle_exit (ACE_Process *)
	Called when a process exits.

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.

virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.

virtual Reference_Count	add_reference ()
	Increment reference count on the handler.

virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.

Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) , WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) , TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) , ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type.

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method.

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

Automates periodic updating of monitor point classes.

A single instance of this class is held by the Admin class below. For a monitor point that must periodically check what they are monitoring, the admin class registers the monitor point with the ACE reactor. Each time the interval times out, the reactor will call the handle_timeout() method below, and pass in the appropriate monitor point. The handle_timeout() method will in turn call the appropriate method on the monitor point to get it to update its data.

Member Function Documentation

◆ handle_timeout()

int ACE::Monitor_Control::Monitor_Point_Auto_Updater::handle_timeout	(	const ACE_Time_Value &	interval,
		const void *	monitor_point )

virtual

Override of ACE base class method.

Reimplemented from ACE_Event_Handler.

The documentation for this class was generated from the following files:
