SSLIOP-specific transport implementation. More...

#include <SSLIOP_Transport.h>

Inheritance diagram for TAO::SSLIOP::Transport:

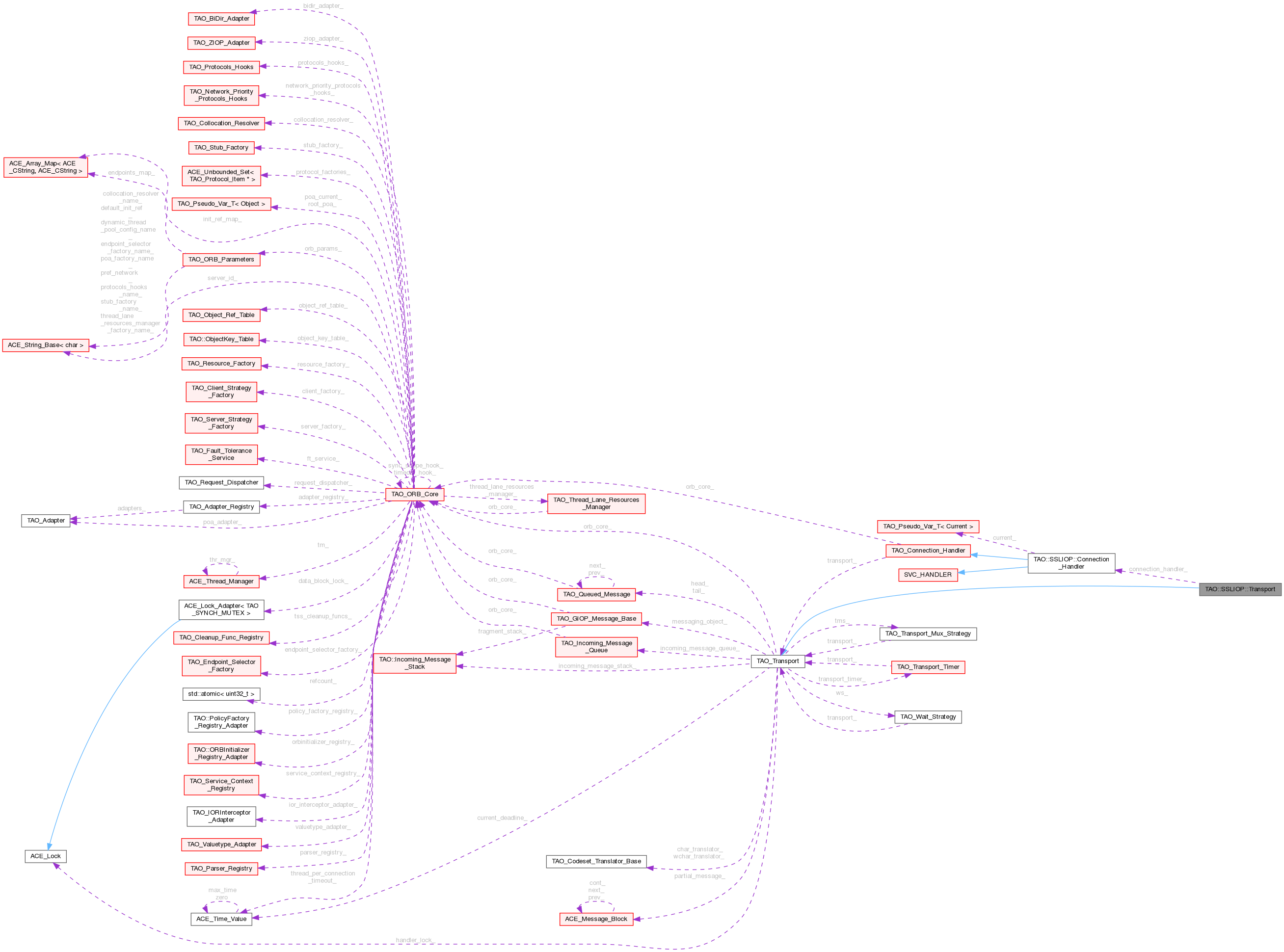

Collaboration diagram for TAO::SSLIOP::Transport:

[legend]

Public Member Functions
	Transport (Connection_Handler handler, TAO_ORB_Core orb_core)
	Constructor.

	~Transport ()
	Default destructor.

virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0)

Public Member Functions inherited from TAO_Transport
	TAO_Transport (CORBA::ULong tag, TAO_ORB_Core *orb_core, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE)

virtual	~TAO_Transport ()

CORBA::ULong	tag () const

TAO_ORB_Core *	orb_core () const

TAO_Transport_Mux_Strategy *	tms () const

TAO_Wait_Strategy *	wait_strategy () const

Drain_Result	handle_output (TAO::Transport::Drain_Constraints const &c)

int	bidirectional_flag () const

void	bidirectional_flag (int flag)

void	cache_map_entry (TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *entry)

TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *	cache_map_entry ()

size_t	id () const

void	id (size_t id)

TAO::Connection_Role	opened_as () const

void	opened_as (TAO::Connection_Role)

unsigned long	purging_order () const

void	purging_order (unsigned long value)

bool	queue_is_empty ()

bool	register_if_necessary ()

void	provide_handler (TAO::Connection_Handler_Set &handlers)

bool	provide_blockable_handler (TAO::Connection_Handler_Set &handlers)

virtual int	register_handler ()

virtual int	remove_handler ()

bool	idle_after_send ()

bool	idle_after_reply ()

virtual void	close_connection ()

void	messaging_init (TAO_GIOP_Message_Version const &version)

virtual bool	post_connect_hook ()

ACE_Event_Handler::Reference_Count	add_reference ()

ACE_Event_Handler::Reference_Count	remove_reference ()

TAO_GIOP_Message_Base *	messaging_object ()

bool	is_connected () const

bool	connection_closed_on_read () const

bool	post_open (size_t id)

void	pre_close ()

TAO_Connection_Handler *	connection_handler ()

TAO_OutputCDR &	out_stream ()

TAO_SYNCH_MUTEX &	output_cdr_lock ()

bool	can_be_purged ()

int	generate_locate_request (TAO_Target_Specification &spec, TAO_Operation_Details &opdetails, TAO_OutputCDR &output)

virtual int	generate_request_header (TAO_Operation_Details &opd, TAO_Target_Specification &spec, TAO_OutputCDR &msg)

int	recache_transport (TAO_Transport_Descriptor_Interface *desc)

virtual int	send_message_shared (TAO_Stub stub, TAO_Message_Semantics message_semantics, const ACE_Message_Block message_block, ACE_Time_Value *max_wait_time)

int	format_queue_message (TAO_OutputCDR &stream, ACE_Time_Value max_wait_time, TAO_Stub stub)

int	send_message_block_chain (const ACE_Message_Block message_block, size_t &bytes_transferred, ACE_Time_Value max_wait_time=0)

int	send_message_block_chain_i (const ACE_Message_Block *message_block, size_t &bytes_transferred, TAO::Transport::Drain_Constraints const &dc)

int	purge_entry ()

int	make_idle ()

int	update_transport ()

int	handle_timeout (const ACE_Time_Value &current_time, const void *act)

size_t	recv_buffer_size () const

size_t	sent_byte_count () const

TAO_Codeset_Translator_Base *	char_translator () const

TAO_Codeset_Translator_Base *	wchar_translator () const

void	char_translator (TAO_Codeset_Translator_Base *)

void	wchar_translator (TAO_Codeset_Translator_Base *)

void	assign_translators (TAO_InputCDR , TAO_OutputCDR )

void	clear_translators (TAO_InputCDR , TAO_OutputCDR )

CORBA::Boolean	is_tcs_set () const

void	first_request_sent (bool flag=false)

bool	first_request () const

void	send_connection_closed_notifications ()

TAO::Transport::Stats *	stats () const

bool	idle_after_send ()

bool	idle_after_reply ()

virtual void	close_connection ()

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
Connection_Handler *	connection_handler_

virtual int	send_request (TAO_Stub stub, TAO_ORB_Core orb_core, TAO_OutputCDR &stream, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)

virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub stub=0, TAO_ServerRequest request=0, TAO_Message_Semantics message_semantics=TAO_Message_Semantics(), ACE_Time_Value *max_time_wait=0)

virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
	Open the service context list and process it.

virtual ACE_Event_Handler *	event_handler_i ()

virtual TAO_Connection_Handler *	connection_handler_i ()

virtual ssize_t	send (iovec iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value timeout=0)
	Write the complete Message_Block chain to the connection.

virtual ssize_t	recv (char buf, size_t len, const ACE_Time_Value s=0)
	Read len bytes from into buf.

void	set_bidir_context_info (TAO_Operation_Details &opdetails)

int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)

Additional Inherited Members
Public Types inherited from TAO_Transport
enum	Drain_Result_Enum

Public Attributes inherited from TAO_Transport
	DR_ERROR

	DR_OK

	DR_QUEUE_EMPTY

	DR_WOULDBLOCK

Protected Member Functions inherited from TAO_Transport
int	process_parsed_messages (TAO_Queued_Data *qd, TAO_Resume_Handle &rh)

int	send_message_shared_i (TAO_Stub stub, TAO_Message_Semantics message_semantics, const ACE_Message_Block message_block, ACE_Time_Value *max_wait_time)

int	queue_message_i (const ACE_Message_Block message_block, ACE_Time_Value max_wait_time, bool back=true)

ACE_Time_Value const *	io_timeout (TAO::Transport::Drain_Constraints const &dc) const

int	notify_reactor_now ()

Protected Attributes inherited from TAO_Transport
CORBA::ULong const	tag_

TAO_ORB_Core *const	orb_core_

TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *	cache_map_entry_

TAO_Transport_Mux_Strategy *	tms_

TAO_Wait_Strategy *	ws_

int	bidirectional_flag_

TAO::Connection_Role	opening_connection_role_

TAO_Queued_Message *	head_

TAO_Queued_Message *	tail_

TAO_Incoming_Message_Queue	incoming_message_queue_

TAO::Incoming_Message_Stack	incoming_message_stack_

ACE_Time_Value	current_deadline_

long	flush_timer_id_

TAO_Transport_Timer	transport_timer_

ACE_Lock *	handler_lock_

size_t	id_

unsigned long	purging_order_

size_t	recv_buffer_size_

size_t	sent_byte_count_

bool	is_connected_

bool	connection_closed_on_read_

Detailed Description

SSLIOP-specific transport implementation.

Constructor & Destructor Documentation

◆ Transport()

TAO::SSLIOP::Transport::Transport	(	Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core )

Constructor.

◆ ~Transport()

TAO::SSLIOP::Transport::~Transport ( )

Default destructor.

Member Function Documentation

◆ connection_handler_i()

TAO_Connection_Handler * TAO::SSLIOP::Transport::connection_handler_i ( )

protectedvirtual

The connection service handler used for accessing lower layer communication protocols.

Implements TAO_Transport.

◆ event_handler_i()

ACE_Event_Handler * TAO::SSLIOP::Transport::event_handler_i ( )

protectedvirtual

The connection service handler used for accessing lower layer communication protocols.

Implements TAO_Transport.

◆ get_listen_point()

int TAO::SSLIOP::Transport::get_listen_point	(	IIOP::ListenPointList &	listen_point_list,
		TAO_Acceptor *	acceptor )

private

Add the listen points in acceptor to the listen_point_list if this connection is in the same interface as that of the endpoints in the acceptor.

◆ handle_input()

int TAO::SSLIOP::Transport::handle_input	(	TAO_Resume_Handle &	rh,
		ACE_Time_Value *	max_wait_time = 0 )

virtual

Overload of the handle_input () in the TAO_Transport class. This is required to set up the state guard. The thread-per-connection and wait on RW strategies call this handle_input ().

Reimplemented from TAO_Transport.

◆ recv()

ssize_t TAO::SSLIOP::Transport::recv	(	char *	buf,
		size_t	len,
		const ACE_Time_Value *	s = 0 )

protectedvirtual

Read len bytes from into buf.

Implements TAO_Transport.

◆ send()

ssize_t TAO::SSLIOP::Transport::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	timeout = 0 )

protectedvirtual

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

◆ send_message()

int TAO::SSLIOP::Transport::send_message	(	TAO_OutputCDR &	stream,
		TAO_Stub *	stub = 0,
		TAO_ServerRequest *	request = 0,
		TAO_Message_Semantics	message_semantics = TAO_Message_Semantics (),
		ACE_Time_Value *	max_time_wait = 0 )

virtual

The connection service handler used for accessing lower layer communication protocols.

Implements TAO_Transport.

◆ send_request()

int TAO::SSLIOP::Transport::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	stream,
		TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	max_wait_time )

virtual

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

◆ set_bidir_context_info()

void TAO::SSLIOP::Transport::set_bidir_context_info ( TAO_Operation_Details & opdetails )

privatevirtual

Set the Bidirectional context info in the service context list.

Reimplemented from TAO_Transport.

◆ tear_listen_point_list()

int TAO::SSLIOP::Transport::tear_listen_point_list ( TAO_InputCDR & cdr )

virtual

Open the service context list and process it.

Reimplemented from TAO_Transport.

Member Data Documentation

◆ connection_handler_

Connection_Handler* TAO::SSLIOP::Transport::connection_handler_

private

The connection service handler used for accessing lower layer communication protocols.

The documentation for this class was generated from the following files:
