SSLIOP-specific implementation of the SecurityLevel3::Credentials interface. More...

#include <SSLIOP_Credentials.h>

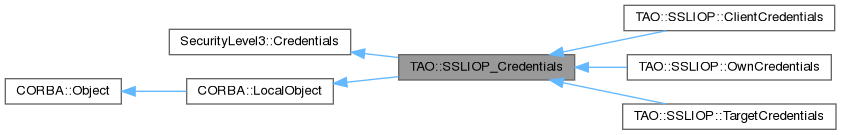

Inheritance diagram for TAO::SSLIOP_Credentials:

[legend]

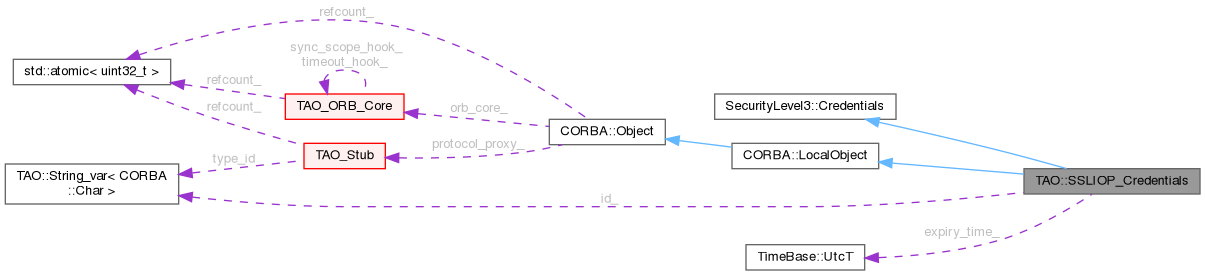

Collaboration diagram for TAO::SSLIOP_Credentials:

[legend]

Public Types
typedef SSLIOP::Credentials_ptr	_ptr_type

typedef SSLIOP::Credentials_var	_var_type

typedef SSLIOP::Credentials_out	_out_type

Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type

typedef LocalObject_var	_var_type

typedef LocalObject_out	_out_type

Public Types inherited from CORBA::Object
typedef Object_ptr	_ptr_type

typedef Object_var	_var_type

typedef Object_out	_out_type

Public Member Functions
	SSLIOP_Credentials (::X509 cert, ::EVP_PKEY evp)
	Constructor.

Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject ()

virtual CORBA::Boolean	_non_existent ()

virtual char *	_repository_id ()

virtual CORBA::InterfaceDef_ptr	_get_interface ()

virtual CORBA::Object_ptr	_get_component ()

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual CORBA::Request_ptr	_request (const char *operation)

virtual CORBA::ULong	_hash (CORBA::ULong maximum)

virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)

virtual CORBA::ORB_ptr	_get_orb ()

virtual TAO::ObjectKey *	_key ()

Public Member Functions inherited from CORBA::Object
virtual	~Object ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

virtual CORBA::ULong	_refcount_value () const

virtual TAO_Abstract_ServantBase *	_servant () const

virtual CORBA::Boolean	_is_collocated () const

virtual CORBA::Boolean	_is_local () const

	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)

	Object (IOP::IOR ior, TAO_ORB_Core orb_core)

virtual TAO_Stub *	_stubobj () const

virtual TAO_Stub *	_stubobj ()

virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)

virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)

CORBA::Boolean	is_evaluated () const

TAO_ORB_Core *	orb_core () const

IOP::IOR *	steal_ior ()

const IOP::IOR &	ior () const

virtual bool	can_convert_to_ior () const

virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const

void	_decr_refcount ()

virtual CORBA::Boolean	_is_a (const char *logical_type_id)

virtual const char *	_interface_repository_id () const

SecurityLevel3::Credentials Methods
Methods required by the SecurityLevel3::Credentials interface.
SSLIOP::X509_var	x509_

SSLIOP::EVP_PKEY_var	evp_

CORBA::String_var	id_
	Credentials Identifier.

SecurityLevel3::CredentialsUsage	creds_usage_
	The intended usage of the Credentials.

TimeBase::UtcT	expiry_time_
	The time these Credentials expire.

SecurityLevel3::CredentialsState	creds_state_
	The validity of the Credentials.

virtual char *	creds_id ()

virtual SecurityLevel3::CredentialsType	creds_type ()=0

virtual SecurityLevel3::CredentialsUsage	creds_usage ()

virtual TimeBase::UtcT	expiry_time ()

virtual SecurityLevel3::CredentialsState	creds_state ()

virtual char *	add_relinquished_listener (SecurityLevel3::RelinquishedCredentialsListener_ptr listener)

virtual void	remove_relinquished_listener (const char *id)

::X509 *	x509 ()
	Return a pointer to the underlying X.509 certificate.

::EVP_PKEY *	evp ()
	Return a pointer to the underlying private key.

bool	operator== (const SSLIOP_Credentials &rhs)

CORBA::ULong	hash () const

static SSLIOP::Credentials_ptr	_duplicate (SSLIOP::Credentials_ptr obj)

static SSLIOP::Credentials_ptr	_narrow (CORBA::Object_ptr obj)

static SSLIOP::Credentials_ptr	_nil ()

	~SSLIOP_Credentials ()
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)

static LocalObject_ptr	_nil ()

static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)

Static Public Member Functions inherited from CORBA::Object
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)

static void	_tao_any_destructor (void *)

static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)

static void	tao_object_initialize (Object *)

static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)

static CORBA::Object_ptr	_nil ()

static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)

Protected Member Functions inherited from CORBA::LocalObject
	LocalObject ()

Protected Member Functions inherited from CORBA::Object
	Object (int dummy=0)

TAO::Object_Proxy_Broker *	proxy_broker () const

Protected Attributes inherited from CORBA::Object
std::atomic< uint32_t >	refcount_

Detailed Description

SSLIOP-specific implementation of the SecurityLevel3::Credentials interface.

This class encapsulates the X.509 certificate associated with a given a principal.

Note: Why is this class not the TAO::SSLIOP namespace? Because brain damaged MSVC++ 6 cannot call a base class constructor of class declared in a namespace that is more than one level deep in a sub-class base member initializer list.

Member Typedef Documentation

◆ _out_type

typedef SSLIOP::Credentials_out TAO::SSLIOP_Credentials::_out_type

◆ _ptr_type

typedef SSLIOP::Credentials_ptr TAO::SSLIOP_Credentials::_ptr_type

◆ _var_type

typedef SSLIOP::Credentials_var TAO::SSLIOP_Credentials::_var_type

Constructor & Destructor Documentation

◆ SSLIOP_Credentials()

TAO::SSLIOP_Credentials::SSLIOP_Credentials	(	::X509 *	cert,
		::EVP_PKEY *	evp )

Constructor.

◆ ~SSLIOP_Credentials()

TAO::SSLIOP_Credentials::~SSLIOP_Credentials ( )

protected

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Member Function Documentation

◆ _duplicate()

TAO::SSLIOP::Credentials_ptr TAO::SSLIOP_Credentials::_duplicate ( SSLIOP::Credentials_ptr obj )

static

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ _narrow()

TAO::SSLIOP::Credentials_ptr TAO::SSLIOP_Credentials::_narrow ( CORBA::Object_ptr obj )

static

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ _nil()

static SSLIOP::Credentials_ptr TAO::SSLIOP_Credentials::_nil ( )

inlinestatic

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ add_relinquished_listener()

char * TAO::SSLIOP_Credentials::add_relinquished_listener ( SecurityLevel3::RelinquishedCredentialsListener_ptr listener )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ creds_id()

char * TAO::SSLIOP_Credentials::creds_id ( )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ creds_state()

SecurityLevel3::CredentialsState TAO::SSLIOP_Credentials::creds_state ( )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ creds_type()

virtual SecurityLevel3::CredentialsType TAO::SSLIOP_Credentials::creds_type ( )

pure virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

Implemented in TAO::SSLIOP::ClientCredentials, TAO::SSLIOP::OwnCredentials, and TAO::SSLIOP::TargetCredentials.

◆ creds_usage()

SecurityLevel3::CredentialsUsage TAO::SSLIOP_Credentials::creds_usage ( )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ evp()

EVP_PKEY * TAO::SSLIOP_Credentials::evp ( )

Return a pointer to the underlying private key.

Returns: Non-zero value if private key is used.

Note: Caller owns the returned object. Use a TAO::SSLIOP::EVP_PKEY_var.

◆ expiry_time()

TimeBase::UtcT TAO::SSLIOP_Credentials::expiry_time ( )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ hash()

CORBA::ULong TAO::SSLIOP_Credentials::hash ( ) const

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ operator==()

bool TAO::SSLIOP_Credentials::operator== ( const SSLIOP_Credentials & rhs )

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ remove_relinquished_listener()

void TAO::SSLIOP_Credentials::remove_relinquished_listener ( const char * id )

virtual

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

◆ x509()

X509 * TAO::SSLIOP_Credentials::x509 ( )

Return a pointer to the underlying X.509 certificate.

Note: Caller owns the returned object. Use a TAO::SSLIOP::X509_var.

Member Data Documentation

◆ creds_state_

SecurityLevel3::CredentialsState TAO::SSLIOP_Credentials::creds_state_

protected

The validity of the Credentials.

◆ creds_usage_

SecurityLevel3::CredentialsUsage TAO::SSLIOP_Credentials::creds_usage_

protected

The intended usage of the Credentials.

◆ evp_

SSLIOP::EVP_PKEY_var TAO::SSLIOP_Credentials::evp_

protected

Reference to the private key associated with the X.509 certificate.

◆ expiry_time_

TimeBase::UtcT TAO::SSLIOP_Credentials::expiry_time_

protected

The time these Credentials expire.

◆ id_

CORBA::String_var TAO::SSLIOP_Credentials::id_

protected

Credentials Identifier.

◆ x509_

SSLIOP::X509_var TAO::SSLIOP_Credentials::x509_

protected

Reference to the X.509 certificate associated with this SSLIOP Credentials object.
