TAO::PG_Property_Set Class Reference

#include <PG_Property_Set.h>

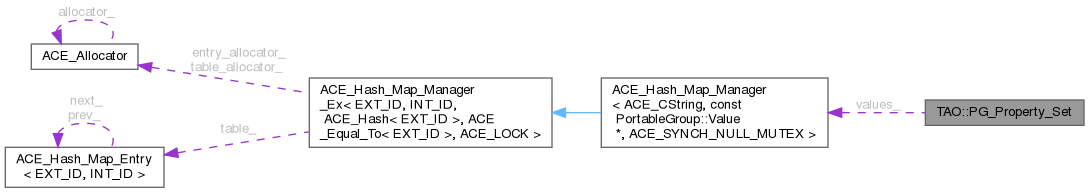

Collaboration diagram for TAO::PG_Property_Set:

Public Member Functions
	PG_Property_Set ()
	PG_Property_Set (const PortableGroup::Properties &property_set)
	PG_Property_Set (const PortableGroup::Properties &property_set, const PG_Property_Set_var &defaults)
	PG_Property_Set (const PG_Property_Set_var &defaults)
	~PG_Property_Set ()
int	find (const ACE_CString &key, const PortableGroup::Value *&pValue) const
void	decode (const PortableGroup::Properties &property_set)
void	clear ()
void	remove (const PortableGroup::Properties &property_set)
void	set_property (const char *name, const PortableGroup::Value &value)
void	export_properties (PortableGroup::Properties &property_set) const

Private Types
typedef ACE_Hash_Map_Manager< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX >	ValueMap
typedef ACE_Hash_Map_Iterator< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX >	ValueMapIterator

Private Member Functions
void	merge_properties (ValueMap &merged_values) const
	PG_Property_Set (const PG_Property_Set &rhs)=delete
PG_Property_Set &	operator= (const PG_Property_Set &rhs)=delete

Private Attributes
TAO_SYNCH_MUTEX	internals_
ValueMap	values_
PG_Property_Set_var	defaults_

Detailed Description

The PG_Property_Set captures the set of properties from a PortableGroup::Properties structure in a more usable format (a hash map), and provides methods for operating on these properties.

It supports "chains" of property sets to implement default value semantics. If a requested property is not found in this set, the default set(s) are searched. Thus, any property found at this level overrides the defaults.

See: PG_Properties_Support for more details on use of this object.

A PG_Property_Set may also be used for it's original purpose as a stand-alone helper class for extracting values from PortableGroup::Properties.

Member Typedef Documentation

ValueMap

typedef ACE_Hash_Map_Manager< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX> TAO::PG_Property_Set::ValueMap

private

ValueMapIterator

typedef ACE_Hash_Map_Iterator< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX> TAO::PG_Property_Set::ValueMapIterator

private

Constructor & Destructor Documentation

PG_Property_Set() [1/5]

TAO::PG_Property_Set::PG_Property_Set

(

)

constructor: empty set with no defaults.

PG_Property_Set() [2/5]

TAO::PG_Property_Set::PG_Property_Set

(

const PortableGroup::Properties &

property_set

)

constructor

Parameters

property_set

the properties to be decoded

PG_Property_Set() [3/5]

TAO::PG_Property_Set::PG_Property_Set	(	const PortableGroup::Properties &	property_set,
		const PG_Property_Set_var &	defaults )

constructor with defaults

Parameters

property_set	the properties to be decoded
defaults	a propert set decoder that supplies default values.

PG_Property_Set() [4/5]

TAO::PG_Property_Set::PG_Property_Set

(

const PG_Property_Set_var &

defaults

)

constructor with defaults, but no properties (yet) (note this is not a copy constructor)

Parameters

defaults

a propert set decoder that supplies default values.

~PG_Property_Set()

TAO::PG_Property_Set::~PG_Property_Set

(

)

PG_Property_Set() [5/5]

TAO::PG_Property_Set::PG_Property_Set ( const PG_Property_Set & rhs )

privatedelete

Member Function Documentation

clear()

void TAO::PG_Property_Set::clear

(

)

Clear properties Does not clear default properties.

decode()

void TAO::PG_Property_Set::decode

(

const PortableGroup::Properties &

property_set

)

Decode additional properties Duplicate values replace previous values.

Parameters

property_set

the properties to be decoded

export_properties()

void TAO::PG_Property_Set::export_properties

(

PortableGroup::Properties &

property_set

)

const

Export the properties to a PortableGroup::Properties

This method is intended to be used to implement the PropertyManager::get_*_properties methods. If you want to access the properties for any purpose other than exporting them across a CORBA interface, it is much more efficient to use the find interface.

find()

int TAO::PG_Property_Set::find	(	const ACE_CString &	key,
		const PortableGroup::Value *&	pValue ) const

general purpose find. returns a pointer to an Any if templated methods were available: template <typename TYPE > int find (const ACE_CString & key, TYPE & value) const; instead, see global function below

Parameters

key	the (simple) name of the property
pValue	an out parameter to receive a pointer to the Any containing the value

Returns

boolean true if found

merge_properties()

void TAO::PG_Property_Set::merge_properties ( ValueMap & merged_values ) const

private

populate a ValueMap with the properties known to this decoder including but overriding default values

operator=()

PG_Property_Set & TAO::PG_Property_Set::operator= ( const PG_Property_Set & rhs )

privatedelete

remove()

void TAO::PG_Property_Set::remove

(

const PortableGroup::Properties &

property_set

)

set_property()

void TAO::PG_Property_Set::set_property	(	const char *	name,
		const PortableGroup::Value &	value )

set or replace a single property

Member Data Documentation

defaults_

PG_Property_Set_var TAO::PG_Property_Set::defaults_

private

a parent to another property decoder that provides default values these can be chained indefinitely.

internals_

TAO_SYNCH_MUTEX TAO::PG_Property_Set::internals_

mutableprivate

Protect internal state.

values_

ValueMap TAO::PG_Property_Set::values_

private

---

The documentation for this class was generated from the following files:

• PG_Property_Set.h
• PG_Property_Set.cpp
