TAO_DII_Reply_Handler Class Reference

The class for DII reply handler. More...

#include <DII_Reply_Handler.h>

Inheritance diagram for TAO_DII_Reply_Handler:

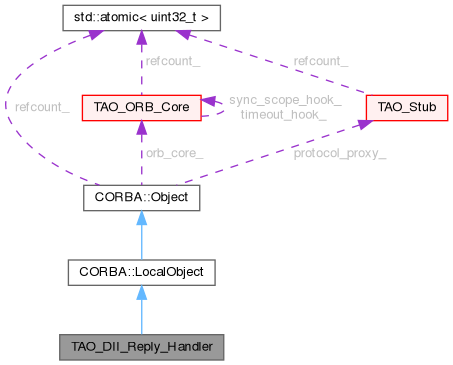

Collaboration diagram for TAO_DII_Reply_Handler:

Public Types
typedef TAO_DII_Reply_Handler_ptr	_ptr_type
typedef TAO_DII_Reply_Handler_var	_var_type
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type
typedef LocalObject_var	_var_type
typedef LocalObject_out	_out_type
Public Types inherited from CORBA::Object
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
typedef Object_out	_out_type

Public Member Functions
	TAO_DII_Reply_Handler ()=default
virtual	~TAO_DII_Reply_Handler ()
virtual void	handle_response (TAO_InputCDR &incoming)=0
	Callback method for asynchronous requests.
virtual void	handle_excep (TAO_InputCDR &incoming, CORBA::ULong reply_status)=0
virtual void	handle_location_forward (TAO_InputCDR &incoming, CORBA::ULong reply_status)
	TAO_DII_Reply_Handler (const TAO_DII_Reply_Handler &)=delete
TAO_DII_Reply_Handler &	operator= (const TAO_DII_Reply_Handler &)=delete
Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject ()
virtual CORBA::Boolean	_non_existent ()
virtual char *	_repository_id ()
virtual CORBA::InterfaceDef_ptr	_get_interface ()
virtual CORBA::Object_ptr	_get_component ()
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual CORBA::Request_ptr	_request (const char *operation)
virtual CORBA::ULong	_hash (CORBA::ULong maximum)
virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)
virtual CORBA::ORB_ptr	_get_orb ()
virtual TAO::ObjectKey *	_key ()
Public Member Functions inherited from CORBA::Object
virtual	~Object ()
virtual void	_add_ref ()
virtual void	_remove_ref ()
virtual CORBA::ULong	_refcount_value () const
virtual TAO_Abstract_ServantBase *	_servant () const
virtual CORBA::Boolean	_is_collocated () const
virtual CORBA::Boolean	_is_local () const
	Object (TAO_Stub *p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase *servant=0, TAO_ORB_Core *orb_core=0)
	Object (IOP::IOR *ior, TAO_ORB_Core *orb_core)
virtual TAO_Stub *	_stubobj () const
virtual TAO_Stub *	_stubobj ()
virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)
CORBA::Boolean	is_evaluated () const
TAO_ORB_Core *	orb_core () const
IOP::IOR *	steal_ior ()
const IOP::IOR &	ior () const
virtual bool	can_convert_to_ior () const
virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const
void	_decr_refcount ()
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
virtual const char *	_interface_repository_id () const

Static Public Member Functions
static TAO_DII_Reply_Handler *	_duplicate (TAO_DII_Reply_Handler_ptr)
	CORBA Object related methods.
static TAO_DII_Reply_Handler *	_nil ()
static TAO_DII_Reply_Handler *	_narrow (CORBA::Object_ptr)
static TAO_DII_Reply_Handler *	_unchecked_narrow (CORBA::Object_ptr)
Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)
static LocalObject_ptr	_nil ()
static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)
Static Public Member Functions inherited from CORBA::Object
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)
static void	_tao_any_destructor (void *)
static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)
static void	tao_object_initialize (Object *)
static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)
static CORBA::Object_ptr	_nil ()
static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)

Static Public Attributes
static int	_tao_class_id = 0

Additional Inherited Members
Protected Member Functions inherited from CORBA::LocalObject
	LocalObject ()
Protected Member Functions inherited from CORBA::Object
	Object (int dummy=0)
TAO::Object_Proxy_Broker *	proxy_broker () const
Protected Attributes inherited from CORBA::Object
std::atomic< uint32_t >	refcount_

Detailed Description

The class for DII reply handler.

Provides a way to create requests and populate it with parameters for use in the Dynamic Invocation Interface.

Member Typedef Documentation

_ptr_type

typedef TAO_DII_Reply_Handler_ptr TAO_DII_Reply_Handler::_ptr_type

_var_type

typedef TAO_DII_Reply_Handler_var TAO_DII_Reply_Handler::_var_type

Constructor & Destructor Documentation

TAO_DII_Reply_Handler() [1/2]

TAO_DII_Reply_Handler::TAO_DII_Reply_Handler ( )

default

~TAO_DII_Reply_Handler()

TAO_DII_Reply_Handler::~TAO_DII_Reply_Handler ( )

virtual

TAO_DII_Reply_Handler() [2/2]

TAO_DII_Reply_Handler::TAO_DII_Reply_Handler ( const TAO_DII_Reply_Handler & )

delete

Member Function Documentation

_duplicate()

TAO_DII_Reply_Handler_ptr TAO_DII_Reply_Handler::_duplicate ( TAO_DII_Reply_Handler_ptr x )

static

CORBA Object related methods.

_narrow()

TAO_DII_Reply_Handler_ptr TAO_DII_Reply_Handler::_narrow ( CORBA::Object_ptr obj )

static

_nil()

TAO_DII_Reply_Handler_ptr TAO_DII_Reply_Handler::_nil ( )

static

_unchecked_narrow()

TAO_DII_Reply_Handler_ptr TAO_DII_Reply_Handler::_unchecked_narrow ( CORBA::Object_ptr obj )

static

handle_excep()

virtual void TAO_DII_Reply_Handler::handle_excep ( TAO_InputCDR & incoming, CORBA::ULong reply_status )

pure virtual

handle_location_forward()

void TAO_DII_Reply_Handler::handle_location_forward ( TAO_InputCDR & incoming, CORBA::ULong reply_status )

virtual

Handle a location forward message. This one has a default method supplied that simply forwards to the handle_response, since that is what the legacy code did. This way we maintain backwards compatibility.

handle_response()

virtual void TAO_DII_Reply_Handler::handle_response ( TAO_InputCDR & incoming )

pure virtual

Callback method for asynchronous requests.

operator=()

TAO_DII_Reply_Handler & TAO_DII_Reply_Handler::operator= ( const TAO_DII_Reply_Handler & )

delete

Member Data Documentation

_tao_class_id

int TAO_DII_Reply_Handler::_tao_class_id = 0

static

---

The documentation for this class was generated from the following files:

• DII_Reply_Handler.h
• DII_Reply_Handler.cpp
• DII_Reply_Handler.inl
