TAO_Notify::XML_Topology_Factory Class Reference

Create XML topology savers and loaders. More...

#include <XML_Topology_Factory.h>

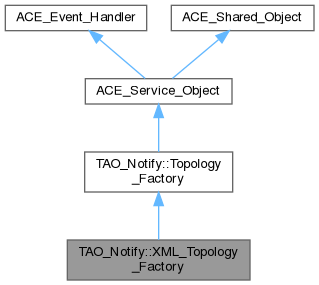

Inheritance diagram for TAO_Notify::XML_Topology_Factory:

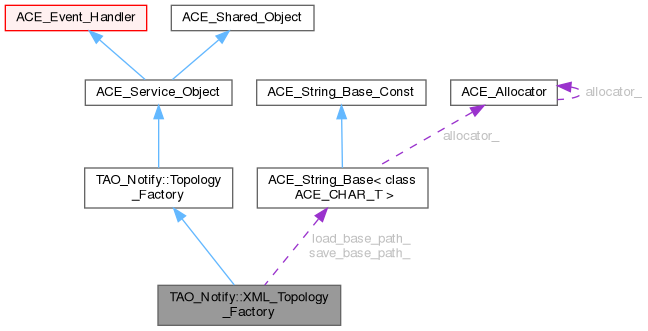

Collaboration diagram for TAO_Notify::XML_Topology_Factory:

Public Member Functions
	XML_Topology_Factory ()
	The constructor.
virtual	~XML_Topology_Factory ()
virtual Topology_Saver *	create_saver ()
virtual Topology_Loader *	create_loader ()
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini ()
Public Member Functions inherited from TAO_Notify::Topology_Factory
virtual	~Topology_Factory ()
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object ()
virtual int	suspend ()
virtual int	resume ()
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
virtual ACE_HANDLE	get_handle () const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority () const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor () const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
virtual Reference_Count	add_reference ()
virtual Reference_Count	remove_reference ()
Reference_Counting_Policy &	reference_counting_policy ()
Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()
virtual	~ACE_Shared_Object ()
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Attributes
ACE_TString	save_base_path_
ACE_TString	load_base_path_
size_t	backup_count_
bool	timestamp_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Create XML topology savers and loaders.

Loaded by a svc.conf line like: dynamic Topology_Factory Service_Object* TAO_CosNotificationd:_make_XML_Topology_Factory() "[arguments]" where arguments are: -base_path Base path (directory and filename) for both saving and loading. .xml will be appended to the base path Default is ./Notification_Service_Topology -save_base_path Base path for saving. -load_base_path Base path for loading. -file_count How many backup copies to keep. Default is 1 -no_timestamp Disable timestamping (makes files diffable) Note: you can set both saving and storing to the same file using -base_path Or you can set them independently using -save_base_path and -load_base_path

Constructor & Destructor Documentation

XML_Topology_Factory()

TAO_Notify::XML_Topology_Factory::XML_Topology_Factory

(

)

The constructor.

~XML_Topology_Factory()

TAO_Notify::XML_Topology_Factory::~XML_Topology_Factory ( )

virtual

Member Function Documentation

create_loader()

Topology_Loader * TAO_Notify::XML_Topology_Factory::create_loader ( )

virtual

Create a Loader

Returns

a pointer to a Topology_Loader which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

create_saver()

Topology_Saver * TAO_Notify::XML_Topology_Factory::create_saver ( )

virtual

Create a Saver.

Returns

a pointer to a Topology_Saver which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

fini()

int TAO_Notify::XML_Topology_Factory::fini ( )

virtual

Reimplemented from ACE_Shared_Object.

init()

int TAO_Notify::XML_Topology_Factory::init ( int argc, ACE_TCHAR * argv[] )

virtual

Reimplemented from ACE_Shared_Object.

Member Data Documentation

backup_count_

size_t TAO_Notify::XML_Topology_Factory::backup_count_

private

load_base_path_

ACE_TString TAO_Notify::XML_Topology_Factory::load_base_path_

private

save_base_path_

ACE_TString TAO_Notify::XML_Topology_Factory::save_base_path_

private

timestamp_

bool TAO_Notify::XML_Topology_Factory::timestamp_

private

---

The documentation for this class was generated from the following files:

• XML_Topology_Factory.h
• XML_Topology_Factory.cpp
