TAO_Notify_Method_Request_Dispatch Class Reference

#include <Method_Request_Dispatch.h>

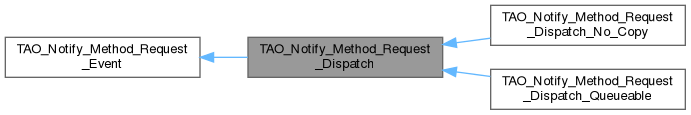

Inheritance diagram for TAO_Notify_Method_Request_Dispatch:

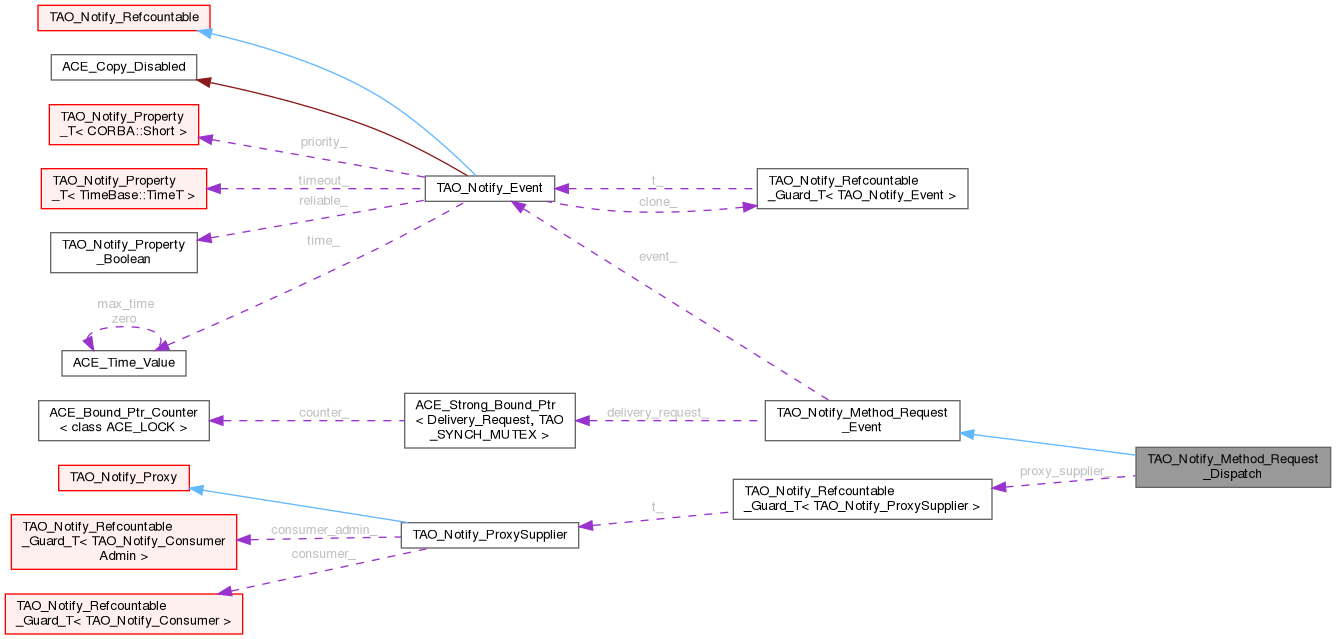

Collaboration diagram for TAO_Notify_Method_Request_Dispatch:

Public Types
enum	{ persistence_code = 1 }
	an arbitrary code (Octet) to identify this delivery method type in persistent storage More...

Public Member Functions
	TAO_Notify_Method_Request_Dispatch (const TAO_Notify_Event *event, TAO_Notify_ProxySupplier *proxy_supplier, bool filtering)
	Constuct from event.
	TAO_Notify_Method_Request_Dispatch (const TAO_Notify::Delivery_Request_Ptr &delivery, TAO_Notify_ProxySupplier *proxy_supplier, bool filtering)
	Construct from a delivery rquest.
	TAO_Notify_Method_Request_Dispatch (const TAO_Notify_Method_Request_Event &request, const TAO_Notify_Event *event, TAO_Notify_ProxySupplier *proxy_supplier, bool filtering)
virtual	~TAO_Notify_Method_Request_Dispatch ()
	Destructor.
Public Member Functions inherited from TAO_Notify_Method_Request_Event
	TAO_Notify_Method_Request_Event (const TAO_Notify_Event *)
	Construct from event.
	TAO_Notify_Method_Request_Event (const TAO_Notify::Delivery_Request_Ptr &delivery_request)
	Construct from a delivery request.
	TAO_Notify_Method_Request_Event (const TAO_Notify_Method_Request_Event &rhs, const TAO_Notify_Event *event)
virtual	~TAO_Notify_Method_Request_Event ()
	Destructor.
const TAO_Notify_Event *	event () const
void	complete ()
unsigned long	sequence ()
bool	should_retry ()

Static Public Member Functions
static TAO_Notify_Method_Request_Dispatch_Queueable *	unmarshal (TAO_Notify::Delivery_Request_Ptr &delivery_request, TAO_Notify_EventChannelFactory &ecf, TAO_InputCDR &cdr)
	Static method used to reconstruct a Method Request Dispatch.

Protected Member Functions
int	execute_i ()
	Execute the dispatch operation.

Protected Attributes
TAO_Notify_ProxySupplier::Ptr	proxy_supplier_
	The Proxy.
bool	filtering_
	Flag is true if we want to do filtering else false.
Protected Attributes inherited from TAO_Notify_Method_Request_Event
const TAO_Notify_Event *	event_
	The Event.
TAO_Notify::Delivery_Request_Ptr	delivery_request_
	Pointer to the routing slip's delivery request (if any)

Member Enumeration Documentation

anonymous enum

anonymous enum

an arbitrary code (Octet) to identify this delivery method type in persistent storage

Enumerator
persistence_code

Constructor & Destructor Documentation

TAO_Notify_Method_Request_Dispatch() [1/3]

TAO_Notify_Method_Request_Dispatch::TAO_Notify_Method_Request_Dispatch	(	const TAO_Notify_Event *	event,
		TAO_Notify_ProxySupplier *	proxy_supplier,
		bool	filtering )

Constuct from event.

TAO_Notify_Method_Request_Dispatch() [2/3]

TAO_Notify_Method_Request_Dispatch::TAO_Notify_Method_Request_Dispatch	(	const TAO_Notify::Delivery_Request_Ptr &	delivery,
		TAO_Notify_ProxySupplier *	proxy_supplier,
		bool	filtering )

Construct from a delivery rquest.

TAO_Notify_Method_Request_Dispatch() [3/3]

TAO_Notify_Method_Request_Dispatch::TAO_Notify_Method_Request_Dispatch	(	const TAO_Notify_Method_Request_Event &	request,
		const TAO_Notify_Event *	event,
		TAO_Notify_ProxySupplier *	proxy_supplier,
		bool	filtering )

Constuct from another method request+event event is passed separately because we may be using a copy of the one in the previous method request

~TAO_Notify_Method_Request_Dispatch()

TAO_Notify_Method_Request_Dispatch::~TAO_Notify_Method_Request_Dispatch ( )

virtual

Destructor.

Member Function Documentation

execute_i()

int TAO_Notify_Method_Request_Dispatch::execute_i ( )

protected

Execute the dispatch operation.

unmarshal()

TAO_Notify_Method_Request_Dispatch_Queueable * TAO_Notify_Method_Request_Dispatch::unmarshal ( TAO_Notify::Delivery_Request_Ptr & delivery_request, TAO_Notify_EventChannelFactory & ecf, TAO_InputCDR & cdr )

static

Static method used to reconstruct a Method Request Dispatch.

Member Data Documentation

filtering_

bool TAO_Notify_Method_Request_Dispatch::filtering_

protected

Flag is true if we want to do filtering else false.

proxy_supplier_

TAO_Notify_ProxySupplier::Ptr TAO_Notify_Method_Request_Dispatch::proxy_supplier_

protected

The Proxy.

---

The documentation for this class was generated from the following files:

• Method_Request_Dispatch.h
• Method_Request_Dispatch.cpp
