All the action for a synchronous twoway invocation happen here. More...

#include <Synch_Invocation.h>

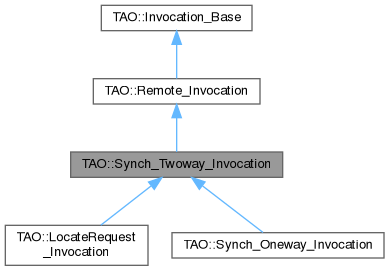

Inheritance diagram for TAO::Synch_Twoway_Invocation:

[legend]

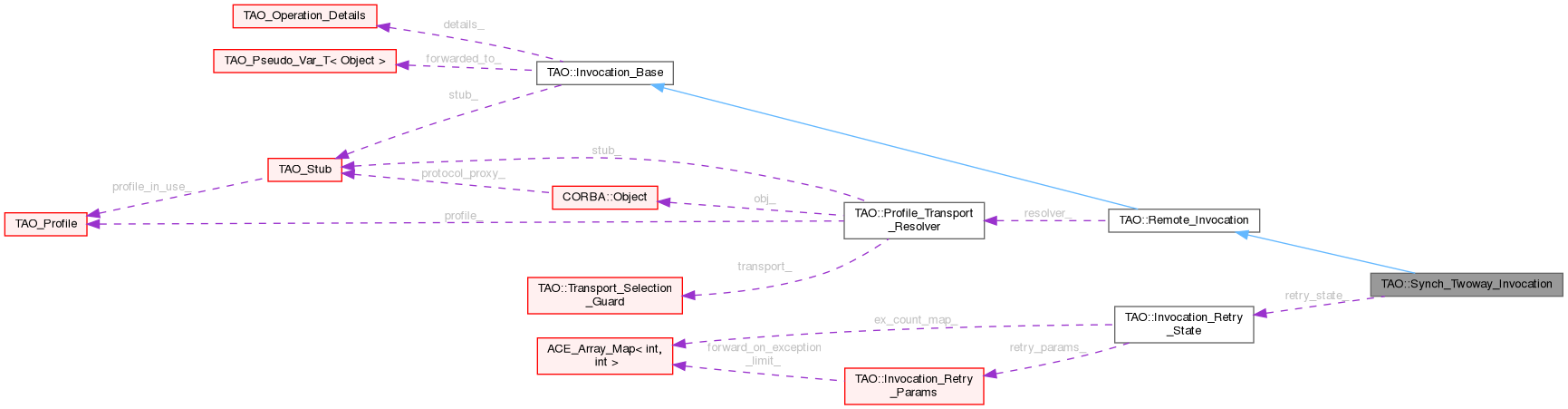

Collaboration diagram for TAO::Synch_Twoway_Invocation:

[legend]

Public Member Functions
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.

Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time)

void	set_retry_state (Invocation_Retry_State *retry_state)

Public Member Functions inherited from TAO::Remote_Invocation
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

void	_tao_byte_order (int byte_order)

int	_tao_byte_order ()

Public Member Functions inherited from TAO::Invocation_Base
virtual	~Invocation_Base ()

TAO_Stub *	stub () const
	Accessor and mutator methods.

CORBA::Object_ptr	forwarded_reference ()

void	forwarded_reference (CORBA::Object_ptr o)

TAO_Service_Context &	request_service_context ()
	Accessors for the service context list.

TAO_Service_Context &	reply_service_context ()

CORBA::Object_ptr	steal_forwarded_reference ()
	Return the forwarded object location by loosing ownership.

CORBA::Object_ptr	effective_target () const
	Return the effective target of the invocation.

CORBA::Object_ptr	target () const
	Return the target object.

CORBA::Boolean	response_expected () const
	Does this invocation return a response?

GIOP::ReplyStatusType	reply_status () const
	Accessor of reply_status of the invocation.

void	reply_status (GIOP::ReplyStatusType s)
	Mutator of reply_status of the invocation.

TAO_Operation_Details &	operation_details ()
	The operaton details of the invocation.

Protected Member Functions
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr)

Invocation_Status	location_forward (TAO_InputCDR &cdr)
	Helper method used to handle location forwarded replies.

Invocation_Status	handle_system_exception (TAO_InputCDR &cdr)

Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd)
	As the name suggests waits for a reply from the remote ORB.

Protected Member Functions inherited from TAO::Remote_Invocation
void	init_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &output)
	Initialize the spec.

void	write_header (TAO_OutputCDR &out_stream)
	Write the GIOP header into the stream.

void	marshal_data (TAO_OutputCDR &cdr)
	Marshal the arguments into the stream.

Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Write the message onto the socket.

Protected Member Functions inherited from TAO::Invocation_Base
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)

Protected Attributes
Invocation_Retry_State *	retry_state_

Protected Attributes inherited from TAO::Remote_Invocation
Profile_Transport_Resolver &	resolver_
	Our resolver.

int	byte_order_
	Intended byte order for message output stream.

Protected Attributes inherited from TAO::Invocation_Base
TAO_Operation_Details &	details_
	The operation details on which we are operating on.

CORBA::Object_var	forwarded_to_
	Forwarded object reference.

bool	response_expected_
	Is response expected?

GIOP::ReplyStatusType	reply_status_
	A GIOP reply status of the invocation.

Private Member Functions
Invocation_Status	check_reply_status (TAO_Synch_Reply_Dispatcher &rd)

Detailed Description

All the action for a synchronous twoway invocation happen here.

An object of this type is created by TAO::Invocation_Adapter and invokes a method on this class. The method takes care of creating and sending a request, waiting for a reply and demarshalling the reply for the client.

Constructor & Destructor Documentation

◆ Synch_Twoway_Invocation()

TAO::Synch_Twoway_Invocation::Synch_Twoway_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail,
		bool	response_expected = true )

Constructor used by TAO::Invocation_Adapter.

Parameters

otarget	The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver	The profile and transport holder.
detail	Operation details of the invocation on the target
response_expected	Flag to indicate whether the operation encapsulated by op returns a response or not.

Member Function Documentation

◆ check_reply_status()

Invocation_Status TAO::Synch_Twoway_Invocation::check_reply_status ( TAO_Synch_Reply_Dispatcher & rd )

private

Helper method that checks the reply status of the replies and takes appropriate action. This method returns an exception when there is an error.

◆ handle_system_exception()

Invocation_Status TAO::Synch_Twoway_Invocation::handle_system_exception ( TAO_InputCDR & cdr )

protected

Helper method used to handle system exceptions from the remote objects.

There has been a unanimous view that this is not the right way to do things. But a need to be compliant is forcing us into this.

Note: A location forwarding loop may occur where a client is bounced from the original target to the forwarded target and back if the application is not equipped to handle retries of previously called targets. TAO may be able to help in this case but it ultimately ends up being an application issue.

◆ handle_user_exception()

Invocation_Status TAO::Synch_Twoway_Invocation::handle_user_exception ( TAO_InputCDR & cdr )

protectedvirtual

This method is selectively made virtual, so that inherited classes can overload the user exception handling type. For example the DII needs a totally different method of user exception exception handling

◆ location_forward()

Invocation_Status TAO::Synch_Twoway_Invocation::location_forward ( TAO_InputCDR & cdr )

protected

Helper method used to handle location forwarded replies.

◆ remote_twoway()

Invocation_Status TAO::Synch_Twoway_Invocation::remote_twoway ( ACE_Time_Value * max_wait_time )

Method used by the adapter to kickstart an invocation to the remote object. There is a exception declaration in this method which ensures that the exceptions propagated by the remote objects are converted a CORBA exceptions for the clients. This method does a bunch of things necessary to create and send the invocation. This method is also nerve centre for the interceptor invocation points.

◆ set_retry_state()

void TAO::Synch_Twoway_Invocation::set_retry_state ( Invocation_Retry_State * retry_state )

Indicate that retry state should be tracked and controlled in the presence of exceptions.

◆ wait_for_reply()

Invocation_Status TAO::Synch_Twoway_Invocation::wait_for_reply	(	ACE_Time_Value *	max_wait_time,
		TAO_Synch_Reply_Dispatcher &	rd,
		TAO_Bind_Dispatcher_Guard &	bd )

protected

As the name suggests waits for a reply from the remote ORB.

This method returns an exception when there is an error.

Member Data Documentation

◆ retry_state_

Invocation_Retry_State* TAO::Synch_Twoway_Invocation::retry_state_

protected

The documentation for this class was generated from the following files:
