Proxy for acquiring, renewing, and releasing a distributed readers lock. More...

#include <Remote_Tokens.h>

Inheritance diagram for ACE_Remote_RLock:

[legend]

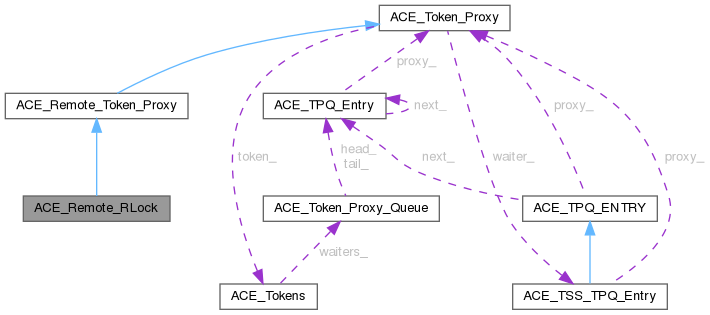

Collaboration diagram for ACE_Remote_RLock:

[legend]

Public Member Functions
	ACE_Remote_RLock ()

	ACE_Remote_RLock (const ACE_TCHAR *token_name, int ignore_deadlock=0, int debug=0)

	ACE_Remote_RLock (const ACE_Remote_RLock &mutex)

void	dump () const
	Dump the state of the class.

virtual int	type () const
	Returns ACE_RW_Token::RLOCK;.

virtual ACE_Token_Proxy *	clone () const
	Return deep copy.

Public Member Functions inherited from ACE_Remote_Token_Proxy
	ACE_Remote_Token_Proxy ()
	Null construction.

virtual	~ACE_Remote_Token_Proxy ()
	Death.

int	open (const ACE_TCHAR *name, int ignore_deadlock=0, int debug=0)

int	initiate_connection ()

virtual int	acquire (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::synch)

virtual int	tryacquire (void(sleep_hook)(void )=0)

virtual int	renew (int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::synch)

virtual int	release (ACE_Synch_Options &options=ACE_Synch_Options::synch)

virtual int	remove (ACE_Synch_Options &options=ACE_Synch_Options::synch)

virtual void	token_acquired (ACE_TPQ_Entry *)
	Override the default to do nothing.

virtual const ACE_TCHAR *	owner_id ()
	The client id of the current token holder.

void	dump () const
	Dump the state of the class.

Public Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy ()
	Construction.

virtual	~ACE_Token_Proxy ()
	Destructor.

virtual int	acquire_read (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	acquire_write (int notify=0, void(sleep_hook)(void )=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

virtual int	tryacquire_read (void(sleep_hook)(void )=0)

virtual int	tryacquire_write (void(sleep_hook)(void )=0)

virtual const ACE_TCHAR *	client_id () const

virtual void	client_id (const ACE_TCHAR *client_id)

virtual const ACE_TCHAR *	name () const

virtual void	sleep_hook ()

void	dump () const
	Dump the state of the class.

Protected Member Functions
virtual ACE_Tokens *	create_token (const ACE_TCHAR *name)

Protected Member Functions inherited from ACE_Remote_Token_Proxy
int	request_reply (ACE_Token_Request &request, ACE_Synch_Options &options)
	Perform the request and wait for the reply.

Protected Member Functions inherited from ACE_Token_Proxy
	ACE_Token_Proxy (const ACE_Token_Proxy &)
	Duplication.

int	handle_options (ACE_Synch_Options &options, ACE_TOKEN_CONST::COND_VAR &cv)
	Handles cond_var waits.

Additional Inherited Members
Static Public Member Functions inherited from ACE_Remote_Token_Proxy
static void	set_server_address (const ACE_INET_Addr &server_address)

Protected Attributes inherited from ACE_Remote_Token_Proxy
int	ignore_shadow_deadlock_
	If shadows report deadlock, go remote anyway.

Protected Attributes inherited from ACE_Token_Proxy
int	ignore_deadlock_
	If this is set, we ignore deadlock.

int	debug_
	Print a bunch of debug messages.

ACE_Tokens *	token_

ACE_TSS_TPQ_Entry	waiter_
	Waiter info used for asynchronous transactions.

Detailed Description

Proxy for acquiring, renewing, and releasing a distributed readers lock.

This is the remote equivalent to ACE_Local_RLock. Multiple readers can hold the lock simultaneously when no writers have the lock. Alternatively, when a writer holds the lock, no other participants (readers or writers) may hold the lock. ACE_Remote_RLock depends on the ACE Token Server for its distributed synchronization semantics.

Constructor & Destructor Documentation

◆ ACE_Remote_RLock() [1/3]

ACE_Remote_RLock::ACE_Remote_RLock ( )

◆ ACE_Remote_RLock() [2/3]

ACE_Remote_RLock::ACE_Remote_RLock	(	const ACE_TCHAR *	token_name,
		int	ignore_deadlock = 0,
		int	debug = 0 )

inline

◆ ACE_Remote_RLock() [3/3]

ACE_Remote_RLock::ACE_Remote_RLock ( const ACE_Remote_RLock & mutex )

Member Function Documentation

◆ clone()

ACE_Token_Proxy * ACE_Remote_RLock::clone ( ) const

virtual

Return deep copy.

Implements ACE_Token_Proxy.

◆ create_token()

ACE_Tokens * ACE_Remote_RLock::create_token ( const ACE_TCHAR * name )

protectedvirtual

Make the correct type of ACE_Tokens. This is called by the Token Manager.

Implements ACE_Token_Proxy.

◆ dump()

void ACE_Remote_RLock::dump ( ) const

Dump the state of the class.

◆ type()

int ACE_Remote_RLock::type ( ) const

virtual

Returns ACE_RW_Token::RLOCK;.

Reimplemented from ACE_Token_Proxy.

The documentation for this class was generated from the following files:
