TSS_Cleanup_Instance Class Reference

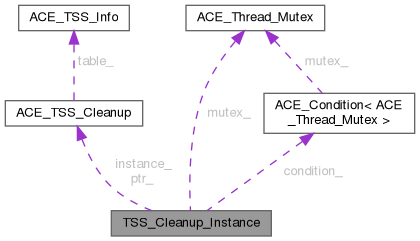

Collaboration diagram for TSS_Cleanup_Instance:

Public Types
enum	Purpose { CREATE , USE , DESTROY }

Public Member Functions
	TSS_Cleanup_Instance (Purpose purpose=USE)
	~TSS_Cleanup_Instance ()
bool	valid ()
ACE_TSS_Cleanup *	operator-> ()

Private Types
enum	{ FLAG_DELETING = 1 , FLAG_VALID_CHECKED = 2 }

Private Member Functions
ACE_TSS_Cleanup *	operator* ()

Private Attributes
ACE_TSS_Cleanup *	ptr_
unsigned short	flags_

Static Private Attributes
static unsigned int	reference_count_ = 0
static ACE_TSS_Cleanup *	instance_ = 0
static ACE_Thread_Mutex *	mutex_ = 0
static ACE_Condition_Thread_Mutex *	condition_ = 0

Detailed Description

@A class to manage an instance pointer to ACE_TSS_Cleanup. Note: that the double checked locking pattern doesn't allow safe deletion. Callers who wish to access the singleton ACE_TSS_Cleanup must do so by instantiating a TSS_Cleanup_Instance, calling the valid method to be sure the ACE_TSS_Cleanup is available, then using the TSS_Cleanup_Instance as a pointer to the instance. Construction argument to the TSS_Cleanup_Instance determines how it is to be used: CREATE means allow this call to create an ACE_TSS_Cleanup if necessary. USE means use the existing ACE_TSS_Cleanup, but do not create a new one. DESTROY means provide exclusive access to the ACE_TSS_Cleanup, then delete it when the TSS_Cleanup_Instance goes out of scope.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
FLAG_DELETING
FLAG_VALID_CHECKED

Purpose

enum TSS_Cleanup_Instance::Purpose

Enumerator
CREATE
USE
DESTROY

Constructor & Destructor Documentation

TSS_Cleanup_Instance()

TSS_Cleanup_Instance::TSS_Cleanup_Instance ( Purpose purpose = USE )

explicit

~TSS_Cleanup_Instance()

TSS_Cleanup_Instance::~TSS_Cleanup_Instance

(

)

Member Function Documentation

operator*()

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator* ( )

private

operator->()

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator->

(

)

valid()

bool TSS_Cleanup_Instance::valid

(

)

Member Data Documentation

condition_

ACE_Condition_Thread_Mutex * TSS_Cleanup_Instance::condition_ = 0

staticprivate

flags_

unsigned short TSS_Cleanup_Instance::flags_

private

instance_

ACE_TSS_Cleanup * TSS_Cleanup_Instance::instance_ = 0

staticprivate

mutex_

ACE_Thread_Mutex * TSS_Cleanup_Instance::mutex_ = 0

staticprivate

ptr_

ACE_TSS_Cleanup* TSS_Cleanup_Instance::ptr_

private

reference_count_

unsigned int TSS_Cleanup_Instance::reference_count_ = 0

staticprivate

---

The documentation for this class was generated from the following file:

• OS_NS_Thread.cpp
