Defines a C++ wrapper facade for the shared memory transport address family format. More...

#include <MEM_Addr.h>

Inheritance diagram for ACE_MEM_Addr:

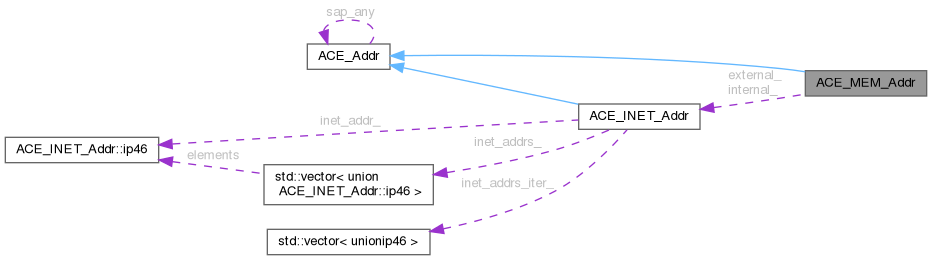

Collaboration diagram for ACE_MEM_Addr:

[legend]

Public Member Functions
	ACE_MEM_Addr ()
	Default constructor.

	ACE_MEM_Addr (const ACE_MEM_Addr &)
	Copy constructor.

ACE_MEM_Addr &	operator= (const ACE_MEM_Addr &)=default
	Assignment operator.

	ACE_MEM_Addr (u_short port_number)
	Creates an ACE_MEM_Addr from a port_number.

	ACE_MEM_Addr (const ACE_TCHAR port_name[])
	Creates an ACE_MEM_Addr from a port_name.

	~ACE_MEM_Addr ()=default
	Default dtor.

int	initialize_local (u_short port)
	Default initialization routine.

int	same_host (const ACE_INET_Addr &sap)
	Check if sap designates an endpoint on the same host.

int	set (u_short port_number, int encode=1)

int	set (const ACE_TCHAR port_name[])

virtual void *	get_addr () const
	Return a pointer to the underlying network address.

virtual void	set_addr (const void *, int len)
	Set a pointer to the address.

virtual int	addr_to_string (ACE_TCHAR buffer[], size_t size, int ipaddr_format=1) const

virtual int	string_to_addr (const ACE_TCHAR address[])
	Initializes the external ACE_MEM_Addr from the address.

void	set_port_number (u_short, int encode=1)
	Sets the port number.

u_short	get_port_number () const
	Return the port number, converting it into host byte order.

int	get_host_name (ACE_TCHAR hostname[], size_t hostnamelen) const
	Return the character representation of the hostname.

const char *	get_host_name () const
	Return the character representation of the hostname.

const char *	get_host_addr (char *addr, int addr_size) const
	Return the "dotted decimal" external address.

const char *	get_host_addr () const
	Return the "dotted decimal" external address.

ACE_UINT32	get_ip_address () const
	Return the 4-byte IP address, converting it into host byte order.

const ACE_INET_Addr &	get_remote_addr () const

const ACE_INET_Addr &	get_local_addr () const

bool	operator== (const ACE_MEM_Addr &SAP) const
	Compare two addresses for equality.

bool	operator== (const ACE_INET_Addr &SAP) const

bool	operator!= (const ACE_MEM_Addr &SAP) const
	Compare two addresses for inequality.

bool	operator!= (const ACE_INET_Addr &SAP) const

virtual u_long	hash () const
	Computes and returns hash value.

void	dump () const
	Dump the state of an object.

Public Member Functions inherited from ACE_Addr
	ACE_Addr (int type=-1, int size=-1)
	Initializes instance variables.

virtual	~ACE_Addr ()=default
	Destructor.

int	get_size () const
	Return the size of the address.

void	set_size (int size)
	Sets the size of the address.

int	get_type () const
	Get the type of the address.

void	set_type (int type)
	Set the type of the address.

bool	operator== (const ACE_Addr &sap) const
	Check for address equality.

bool	operator!= (const ACE_Addr &sap) const
	Check for address inequality.

void	base_set (int type, int size)
	Initializes instance variables.

void	dump () const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_Addr
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Private Attributes
ACE_INET_Addr	external_
	External INET addr used for identifying host.

ACE_INET_Addr	internal_
	Internal INET addr for accepting/connecting.

Additional Inherited Members
Static Public Attributes inherited from ACE_Addr
static const ACE_Addr	sap_any
	Wild-card address.

Protected Attributes inherited from ACE_Addr
int	addr_type_
	e.g., AF_UNIX, AF_INET, AF_SPIPE, etc.

int	addr_size_
	Number of bytes in the address.

Detailed Description

Defines a C++ wrapper facade for the shared memory transport address family format.

Constructor & Destructor Documentation

◆ ACE_MEM_Addr() [1/4]

ACE_MEM_Addr::ACE_MEM_Addr ( )

Default constructor.

Transform the current address into string format.

◆ ACE_MEM_Addr() [2/4]

ACE_MEM_Addr::ACE_MEM_Addr ( const ACE_MEM_Addr & sa )

Copy constructor.

◆ ACE_MEM_Addr() [3/4]

ACE_MEM_Addr::ACE_MEM_Addr ( u_short port_number )

Creates an ACE_MEM_Addr from a port_number.

◆ ACE_MEM_Addr() [4/4]

ACE_MEM_Addr::ACE_MEM_Addr ( const ACE_TCHAR port_name[] )

explicit

Creates an ACE_MEM_Addr from a port_name.

◆ ~ACE_MEM_Addr()

ACE_MEM_Addr::~ACE_MEM_Addr ( )

default

Default dtor.

Member Function Documentation

◆ addr_to_string()

int ACE_MEM_Addr::addr_to_string	(	ACE_TCHAR	buffer[],
		size_t	size,
		int	ipaddr_format = 1 ) const

virtual

Transform the external ACE_MEM_Addr address into string format.

◆ dump()

void ACE_MEM_Addr::dump ( ) const

Dump the state of an object.

◆ get_addr()

void * ACE_MEM_Addr::get_addr ( ) const

virtual

Return a pointer to the underlying network address.

Return the address.

Reimplemented from ACE_Addr.

◆ get_host_addr() [1/2]

const char * ACE_MEM_Addr::get_host_addr ( ) const

inline

Return the "dotted decimal" external address.

Return the "dotted decimal" external Internet address representation of the hostname. This version is non-reentrant since it returns a pointer to a static data area. You should therefore either (1) do a "deep copy" of the address returned by get_host_addr(), e.g., using strdup() or (2) use the "reentrant" version of get_host_addr() described above.

◆ get_host_addr() [2/2]

const char * ACE_MEM_Addr::get_host_addr	(	char *	addr,
		int	addr_size ) const

inline

Return the "dotted decimal" external address.

Return the "dotted decimal" external Internet address representation of the hostname storing it in the addr (which is assumed to be addr_size bytes long). This version is reentrant.

◆ get_host_name() [1/2]

const char * ACE_MEM_Addr::get_host_name ( ) const

Return the character representation of the hostname.

Return the character representation of the hostname (this version is non-reentrant since it returns a pointer to a static data area).

◆ get_host_name() [2/2]

int ACE_MEM_Addr::get_host_name	(	ACE_TCHAR	hostname[],
		size_t	hostnamelen ) const

Return the character representation of the hostname.

◆ get_ip_address()

ACE_UINT32 ACE_MEM_Addr::get_ip_address ( ) const

inline

Return the 4-byte IP address, converting it into host byte order.

Return the 4-byte external IP address, converting it into host byte order.

◆ get_local_addr()

const ACE_INET_Addr & ACE_MEM_Addr::get_local_addr ( ) const

inline

◆ get_port_number()

u_short ACE_MEM_Addr::get_port_number ( ) const

inline

Return the port number, converting it into host byte order.

Return the port number.

◆ get_remote_addr()

const ACE_INET_Addr & ACE_MEM_Addr::get_remote_addr ( ) const

inline

◆ hash()

u_long ACE_MEM_Addr::hash ( ) const

virtual

Computes and returns hash value.

Reimplemented from ACE_Addr.

◆ initialize_local()

int ACE_MEM_Addr::initialize_local ( u_short port )

Default initialization routine.

◆ operator!=() [1/2]

bool ACE_MEM_Addr::operator!= ( const ACE_INET_Addr & SAP ) const

inline

◆ operator!=() [2/2]

bool ACE_MEM_Addr::operator!= ( const ACE_MEM_Addr & SAP ) const

inline

Compare two addresses for inequality.

◆ operator=()

ACE_MEM_Addr & ACE_MEM_Addr::operator= ( const ACE_MEM_Addr & )

default

Assignment operator.

◆ operator==() [1/2]

bool ACE_MEM_Addr::operator== ( const ACE_INET_Addr & SAP ) const

inline

◆ operator==() [2/2]

bool ACE_MEM_Addr::operator== ( const ACE_MEM_Addr & SAP ) const

inline

Compare two addresses for equality.

Compare two addresses for equality. The addresses are considered equal if they contain the same IP address and port number.

◆ same_host()

int ACE_MEM_Addr::same_host ( const ACE_INET_Addr & sap )

Check if sap designates an endpoint on the same host.

◆ set() [1/2]

int ACE_MEM_Addr::set ( const ACE_TCHAR port_name[] )

inline

Uses <getservbyname> to initialize an ACE_MEM_Addr from a port_name, the remote <host_name>, and the <protocol>.

◆ set() [2/2]

int ACE_MEM_Addr::set	(	u_short	port_number,
		int	encode = 1 )

inline

Initializes an ACE_MEM_Addr from a port_number. If encode is enabled then port_number is converted into network byte order, otherwise it is assumed to be in network byte order already and are passed straight through.

◆ set_addr()

void ACE_MEM_Addr::set_addr	(	const void *	addr,
		int	len )

virtual

Set a pointer to the address.

Reimplemented from ACE_Addr.

◆ set_port_number()

void ACE_MEM_Addr::set_port_number	(	u_short	port_number,
		int	encode = 1 )

inline

Sets the port number.

Set the port number.

◆ string_to_addr()

int ACE_MEM_Addr::string_to_addr ( const ACE_TCHAR address[] )

virtual

Initializes the external ACE_MEM_Addr from the address.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

ACE_MEM_Addr::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ external_

ACE_INET_Addr ACE_MEM_Addr::external_

private

External INET addr used for identifying host.

◆ internal_

ACE_INET_Addr ACE_MEM_Addr::internal_

private

Internal INET addr for accepting/connecting.

The documentation for this class was generated from the following files:
