TAO_SHMIOP_Endpoint Class Reference

TAO_SHMIOP_Endpoint. More...

#include <SHMIOP_Endpoint.h>

Inheritance diagram for TAO_SHMIOP_Endpoint:

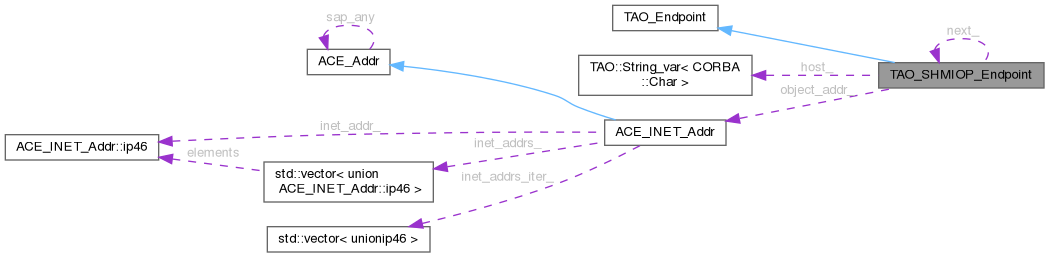

Collaboration diagram for TAO_SHMIOP_Endpoint:

Public Member Functions
	TAO_SHMIOP_Endpoint ()
	Default constructor.
	TAO_SHMIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)
	TAO_SHMIOP_Endpoint (const ACE_MEM_Addr &addr, int use_dotted_decimal_addresses)
	Constructor.
	TAO_SHMIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	TAO_SHMIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
	Constructor. This constructor is used when decoding endpoints.
	~TAO_SHMIOP_Endpoint ()
	Destructor.
Public Member Functions inherited from TAO_Endpoint
	TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)
virtual	~TAO_Endpoint ()=default
CORBA::ULong	tag () const
void	priority (CORBA::Short priority)
CORBA::Short	priority () const
virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core *, TAO_Endpoint *root)

Friends
class	TAO_SHMIOP_Profile

TAO_Endpoint Methods
Please check the documentation in Endpoint.h for details.
CORBA::String_var	host_
	String representing the host name.
CORBA::UShort	port_
	TCP port number.
ACE_INET_Addr	object_addr_
int	object_addr_set_
	Flag to indicate if the address has been resolved and set.
TAO_SHMIOP_Endpoint *	next_
virtual TAO_Endpoint *	next ()
	Return a copy of this.
virtual int	addr_to_string (char *buffer, size_t length)
	String representing the host name.
virtual TAO_Endpoint *	duplicate ()
	String representing the host name.
CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
CORBA::ULong	hash ()
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr () const
	Return a reference to the <object_addr>.
const char *	host () const
const char *	host (const char *h)
CORBA::UShort	port () const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
int	set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Helper method for setting INET_Addr.

Additional Inherited Members
Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX	addr_lookup_lock_
CORBA::ULong	hash_val_
CORBA::ULong const	tag_
CORBA::Short	priority_

Detailed Description

TAO_SHMIOP_Endpoint.

SHMIOP-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_SHMIOP_Endpoint() [1/5]

TAO_SHMIOP_Endpoint::TAO_SHMIOP_Endpoint

(

)

Default constructor.

TAO_SHMIOP_Endpoint() [2/5]

TAO_SHMIOP_Endpoint::TAO_SHMIOP_Endpoint	(	const char *	host,
		CORBA::UShort	port,
		const ACE_INET_Addr &	addr,
		CORBA::Short	priority = TAO_INVALID_PRIORITY )

Constructor. This is the most efficient constructor since it does not require any address resolution processing.

TAO_SHMIOP_Endpoint() [3/5]

TAO_SHMIOP_Endpoint::TAO_SHMIOP_Endpoint	(	const ACE_MEM_Addr &	addr,
		int	use_dotted_decimal_addresses )

Constructor.

TAO_SHMIOP_Endpoint() [4/5]

TAO_SHMIOP_Endpoint::TAO_SHMIOP_Endpoint	(	const ACE_INET_Addr &	addr,
		int	use_dotted_decimal_addresses )

Constructor. – More of a extension of the previous one. One of them need to go. We will decide about that as time goes by.

TAO_SHMIOP_Endpoint() [5/5]

TAO_SHMIOP_Endpoint::TAO_SHMIOP_Endpoint	(	const char *	host,
		CORBA::UShort	port,
		CORBA::Short	priority )

Constructor. This constructor is used when decoding endpoints.

~TAO_SHMIOP_Endpoint()

TAO_SHMIOP_Endpoint::~TAO_SHMIOP_Endpoint

(

)

Destructor.

Member Function Documentation

addr_to_string()

int TAO_SHMIOP_Endpoint::addr_to_string ( char * buffer, size_t length )

virtual

String representing the host name.

Implements TAO_Endpoint.

duplicate()

TAO_Endpoint * TAO_SHMIOP_Endpoint::duplicate ( )

virtual

String representing the host name.

Implements TAO_Endpoint.

hash()

CORBA::ULong TAO_SHMIOP_Endpoint::hash ( )

virtual

Return a hash value for this object.

Implements TAO_Endpoint.

host() [1/2]

const char * TAO_SHMIOP_Endpoint::host ( ) const

inline

Return a pointer to the host string. This object maintains ownership of this string.

host() [2/2]

const char * TAO_SHMIOP_Endpoint::host

(

const char *

h

)

Copy the string h into <host_> and return the resulting pointer. This object maintains ownership of this string.

is_equivalent()

CORBA::Boolean TAO_SHMIOP_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint )

virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

next()

TAO_Endpoint * TAO_SHMIOP_Endpoint::next ( )

virtual

Return a copy of this.

Implements TAO_Endpoint.

object_addr()

const ACE_INET_Addr & TAO_SHMIOP_Endpoint::object_addr

(

)

const

Return a reference to the <object_addr>.

port() [1/2]

CORBA::UShort TAO_SHMIOP_Endpoint::port ( ) const

inline

Return the port number.

port() [2/2]

CORBA::UShort TAO_SHMIOP_Endpoint::port ( CORBA::UShort p )

inline

Set the port number.

set()

int TAO_SHMIOP_Endpoint::set ( const ACE_INET_Addr & addr, int use_dotted_decimal_addresses )

private

Helper method for setting INET_Addr.

Friends And Related Symbol Documentation

TAO_SHMIOP_Profile

friend class TAO_SHMIOP_Profile

friend

Member Data Documentation

host_

CORBA::String_var TAO_SHMIOP_Endpoint::host_

private

String representing the host name.

next_

TAO_SHMIOP_Endpoint* TAO_SHMIOP_Endpoint::next_

private

SHMIOP Endpoints can be strung into a list. Return the next endpoint in the list, if any.

object_addr_

ACE_INET_Addr TAO_SHMIOP_Endpoint::object_addr_

private

Cached instance of <ACE_INET_Addr> for use in making invocations, etc.

object_addr_set_

int TAO_SHMIOP_Endpoint::object_addr_set_

private

Flag to indicate if the address has been resolved and set.

port_

CORBA::UShort TAO_SHMIOP_Endpoint::port_

private

TCP port number.

---

The documentation for this class was generated from the following files:

• SHMIOP_Endpoint.h
• SHMIOP_Endpoint.cpp
• SHMIOP_Endpoint.inl
