#include <DIOP_Acceptor.h>

Inheritance diagram for TAO_DIOP_Acceptor:

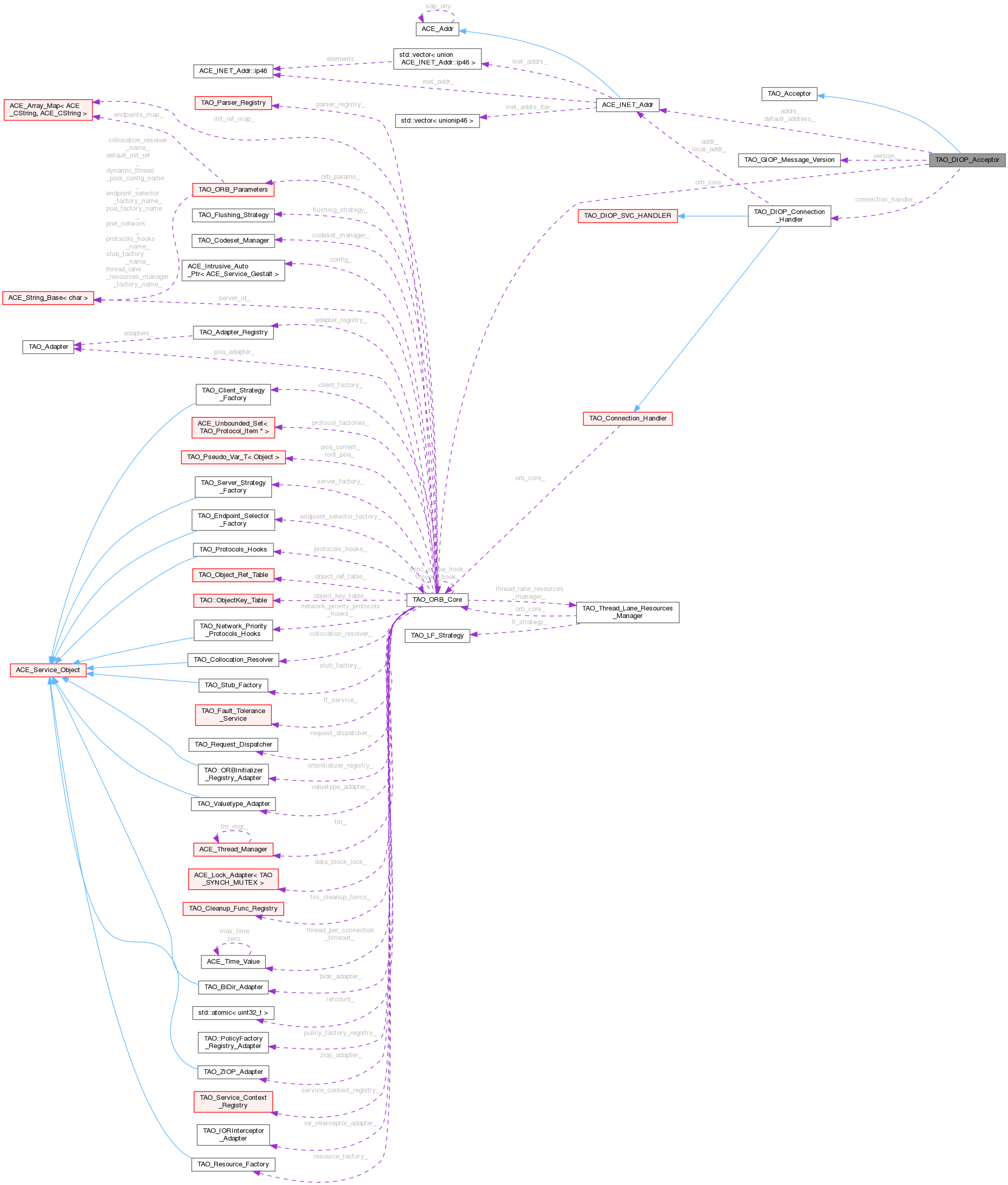

Collaboration diagram for TAO_DIOP_Acceptor:

[legend]

Public Member Functions
	TAO_DIOP_Acceptor ()
	Constructor.

	~TAO_DIOP_Acceptor ()
	Destructor.

const ACE_INET_Addr &	address () const

const ACE_INET_Addr *	endpoints ()
	Returns the array of endpoints in this acceptor.

const ACE_INET_Addr &	default_address () const
	Returns address for default endpoint.

void	set_default_address (const ACE_INET_Addr &addr)
	Set address for default endpoint.

Public Member Functions inherited from TAO_Acceptor
	TAO_Acceptor (CORBA::ULong tag)

virtual	~TAO_Acceptor ()

CORBA::ULong	tag () const

void	set_error_retry_delay (time_t delay)

int	handle_accept_error (ACE_Event_Handler *base_acceptor)

int	handle_expiration (ACE_Event_Handler *base_acceptor)

The TAO_Acceptor Methods
Please check the documentation in Transport_Acceptor.h for details.
ACE_INET_Addr *	addrs_

unsigned short	port_span_

char **	hosts_

CORBA::ULong	endpoint_count_

TAO_GIOP_Message_Version	version_

TAO_ORB_Core *	orb_core_
	ORB Core.

ACE_INET_Addr	default_address_
	Address for default endpoint.

TAO_DIOP_Connection_Handler *	connection_handler_

virtual int	open (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char address, const char options=0)

virtual int	open_default (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char *options=0)

virtual int	close ()

virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

virtual int	is_collocated (const TAO_Endpoint *endpoint)

virtual CORBA::ULong	endpoint_count ()

virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)

virtual int	hostname (TAO_ORB_Core orb_core, ACE_INET_Addr &addr, char &host, const char *specified_hostname=0)

int	dotted_decimal_address (ACE_INET_Addr &addr, char *&host)

int	parse_address (const char address, ACE_INET_Addr &addr, ACE_CString &specified_hostname, int def_type=0)

virtual int	open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)

int	probe_interfaces (TAO_ORB_Core *orb_core, int def_type=AF_UNSPEC)

virtual int	parse_options (const char *options)

int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

Detailed Description

TAO_DIOP_Acceptor.

The DIOP-specific bridge class for the concrete acceptor.

Constructor & Destructor Documentation

◆ TAO_DIOP_Acceptor()

TAO_DIOP_Acceptor::TAO_DIOP_Acceptor ( )

Constructor.

◆ ~TAO_DIOP_Acceptor()

TAO_DIOP_Acceptor::~TAO_DIOP_Acceptor ( )

Destructor.

Member Function Documentation

◆ address()

const ACE_INET_Addr & TAO_DIOP_Acceptor::address ( ) const

inline

@ Helper method for the implementation repository, should go away

◆ close()

int TAO_DIOP_Acceptor::close ( )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ create_new_profile()

int TAO_DIOP_Acceptor::create_new_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority )

protected

Helper method to add a new profile to the mprofile for each endpoint.

◆ create_profile()

int TAO_DIOP_Acceptor::create_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ create_shared_profile()

int TAO_DIOP_Acceptor::create_shared_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority )

protected

Helper method to create a profile that contains all of our endpoints.

◆ default_address()

const ACE_INET_Addr & TAO_DIOP_Acceptor::default_address ( ) const

inline

Returns address for default endpoint.

◆ dotted_decimal_address()

int TAO_DIOP_Acceptor::dotted_decimal_address	(	ACE_INET_Addr &	addr,
		char *&	host )

Set the host name for the given address using the dotted decimal format.

◆ endpoint_count()

CORBA::ULong TAO_DIOP_Acceptor::endpoint_count ( )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ endpoints()

const ACE_INET_Addr * TAO_DIOP_Acceptor::endpoints ( )

inline

Returns the array of endpoints in this acceptor.

◆ hostname()

int TAO_DIOP_Acceptor::hostname	(	TAO_ORB_Core *	orb_core,
		ACE_INET_Addr &	addr,
		char *&	host,
		const char *	specified_hostname = 0 )

virtual

Set the host name for the given addr. A hostname may be forced by using specified_hostname. This is useful if the given address corresponds to more than one hostname and the desired one cannot be determined in any other way.

◆ is_collocated()

int TAO_DIOP_Acceptor::is_collocated ( const TAO_Endpoint * endpoint )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ object_key()

int TAO_DIOP_Acceptor::object_key	(	IOP::TaggedProfile &	profile,
		TAO::ObjectKey &	key )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ open()

int TAO_DIOP_Acceptor::open	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	address,
		const char *	options = 0 )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ open_default()

int TAO_DIOP_Acceptor::open_default	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	options = 0 )

virtual

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Implements TAO_Acceptor.

◆ open_i()

int TAO_DIOP_Acceptor::open_i	(	const ACE_INET_Addr &	addr,
		ACE_Reactor *	reactor )

protectedvirtual

Implement the common part of the open*() methods. This method is virtual to allow a derived class implementation to be invoked instead.

◆ parse_address()

int TAO_DIOP_Acceptor::parse_address	(	const char *	address,
		ACE_INET_Addr &	addr,
		ACE_CString &	specified_hostname,
		int *	def_type = 0 )

protected

Helper method Clear out 'addr' & 'specified_hostname' and initialize them based upon 'address'. If a non-zero pointer is passed in for def_type, this will be set to AF_INET6 if IPv6 support is enabled and supplied hostname is either [] or [::]. It will be set to AF_INET if the hostname is 0.0.0.0, otherwise it is set to AF_UNSPEC. This value is then passed to probe_interfaces by open.

◆ parse_options()

int TAO_DIOP_Acceptor::parse_options ( const char * options )

protectedvirtual

Parse protocol specific options.

Currently supported: portspan – specifies the range of ports over which the acceptor should scan looking for a free port (this is convenient for situations where you might normally use an ephemeral port but can't because you're behind a firewall and don't want to permit passage on all ephemeral ports)

◆ probe_interfaces()

int TAO_DIOP_Acceptor::probe_interfaces	(	TAO_ORB_Core *	orb_core,
		int	def_type = AF_UNSPEC )

protected

Probe the system for available network interfaces, and initialize the <addrs_> array with an ACE_INET_Addr for each network interface. The port for each initialized ACE_INET_Addr will be set in the open_i() method. This method only gets invoked when no explicit hostname is provided in the specified endpoint.

The optional argument def_type is used to constrain the resulting list of interfaces to be either only IPv6 or IPv4, or both, when ACE_HAS_IPV6 is enabled and the source endpoint was an explicitly declared wildcard.

◆ set_default_address()

void TAO_DIOP_Acceptor::set_default_address ( const ACE_INET_Addr & addr )

inline

Set address for default endpoint.

Member Data Documentation

◆ addrs_

ACE_INET_Addr* TAO_DIOP_Acceptor::addrs_

protected

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

◆ connection_handler_

TAO_DIOP_Connection_Handler* TAO_DIOP_Acceptor::connection_handler_

private

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

◆ default_address_

ACE_INET_Addr TAO_DIOP_Acceptor::default_address_

protected

Address for default endpoint.

◆ endpoint_count_

CORBA::ULong TAO_DIOP_Acceptor::endpoint_count_

protected

The number of host names cached in the hosts_ array (equivalent to the number of endpoints opened by this Acceptor).

◆ hosts_

char** TAO_DIOP_Acceptor::hosts_

protected

Cache the information about the endpoints serviced by this acceptor. There may in fact be multiple hostnames for this endpoint. For example, if the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface.

◆ orb_core_

TAO_ORB_Core* TAO_DIOP_Acceptor::orb_core_

protected

ORB Core.

◆ port_span_

unsigned short TAO_DIOP_Acceptor::port_span_

protected

The number of ports over which the acceptor should search (starting at the port specified in each element of addrs_) for an available port. This is specified via the "portspan=" option to the endpoint.

◆ version_

TAO_GIOP_Message_Version TAO_DIOP_Acceptor::version_

protected

The GIOP version for this endpoint @ Theoretically they shouldn't be here!! We need to look at a way to move this out

The documentation for this class was generated from the following files:
