Create XML topology savers and loaders. More...

#include <XML_Topology_Factory.h>

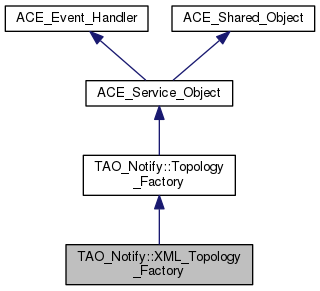

Inheritance diagram for TAO_Notify::XML_Topology_Factory:

[legend]

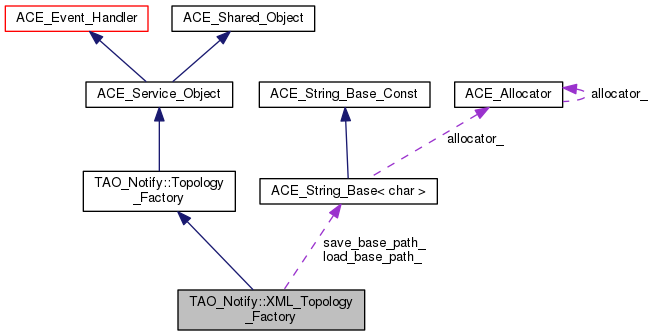

Collaboration diagram for TAO_Notify::XML_Topology_Factory:

[legend]

Public Member Functions
	XML_Topology_Factory ()
	The constructor. More...

virtual	~XML_Topology_Factory ()

virtual Topology_Saver *	create_saver ()

virtual Topology_Loader *	create_loader ()

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini ()

Public Member Functions inherited from TAO_Notify::Topology_Factory
virtual	~Topology_Factory ()

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Attributes
ACE_TString	save_base_path_

ACE_TString	load_base_path_

size_t	backup_count_

bool	timestamp_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Create XML topology savers and loaders.

Loaded by a svc.conf line like: dynamic Topology_Factory Service_Object* TAO_CosNotificationd:_make_XML_Topology_Factory() "[arguments]" where arguments are: -base_path Base path (directory and filename) for both saving and loading. .xml will be appended to the base path Default is ./Notification_Service_Topology -save_base_path Base path for saving. -load_base_path Base path for loading. -file_count How many backup copies to keep. Default is 1 -no_timestamp Disable timestamping (makes files diffable) Note: you can set both saving and storing to the same file using -base_path Or you can set them independently using -save_base_path and -load_base_path

Constructor & Destructor Documentation

TAO_Notify::XML_Topology_Factory::XML_Topology_Factory ( )

The constructor.

TAO_Notify::XML_Topology_Factory::~XML_Topology_Factory ( )

virtual

Member Function Documentation

Topology_Loader * TAO_Notify::XML_Topology_Factory::create_loader ( )

virtual

Create a Loader

Returns: a pointer to a Topology_Loader which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

Topology_Saver * TAO_Notify::XML_Topology_Factory::create_saver ( )

virtual

Create a Saver.

Returns: a pointer to a Topology_Saver which must be deleted by the caller.

Implements TAO_Notify::Topology_Factory.

int TAO_Notify::XML_Topology_Factory::fini ( void )

virtual

Reimplemented from ACE_Shared_Object.

int TAO_Notify::XML_Topology_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Reimplemented from ACE_Shared_Object.

Member Data Documentation

size_t TAO_Notify::XML_Topology_Factory::backup_count_

private

ACE_TString TAO_Notify::XML_Topology_Factory::load_base_path_

private

ACE_TString TAO_Notify::XML_Topology_Factory::save_base_path_

private

bool TAO_Notify::XML_Topology_Factory::timestamp_

private

The documentation for this class was generated from the following files:
