Base class proxy for all proxys in NS. More...

#include <Proxy.h>

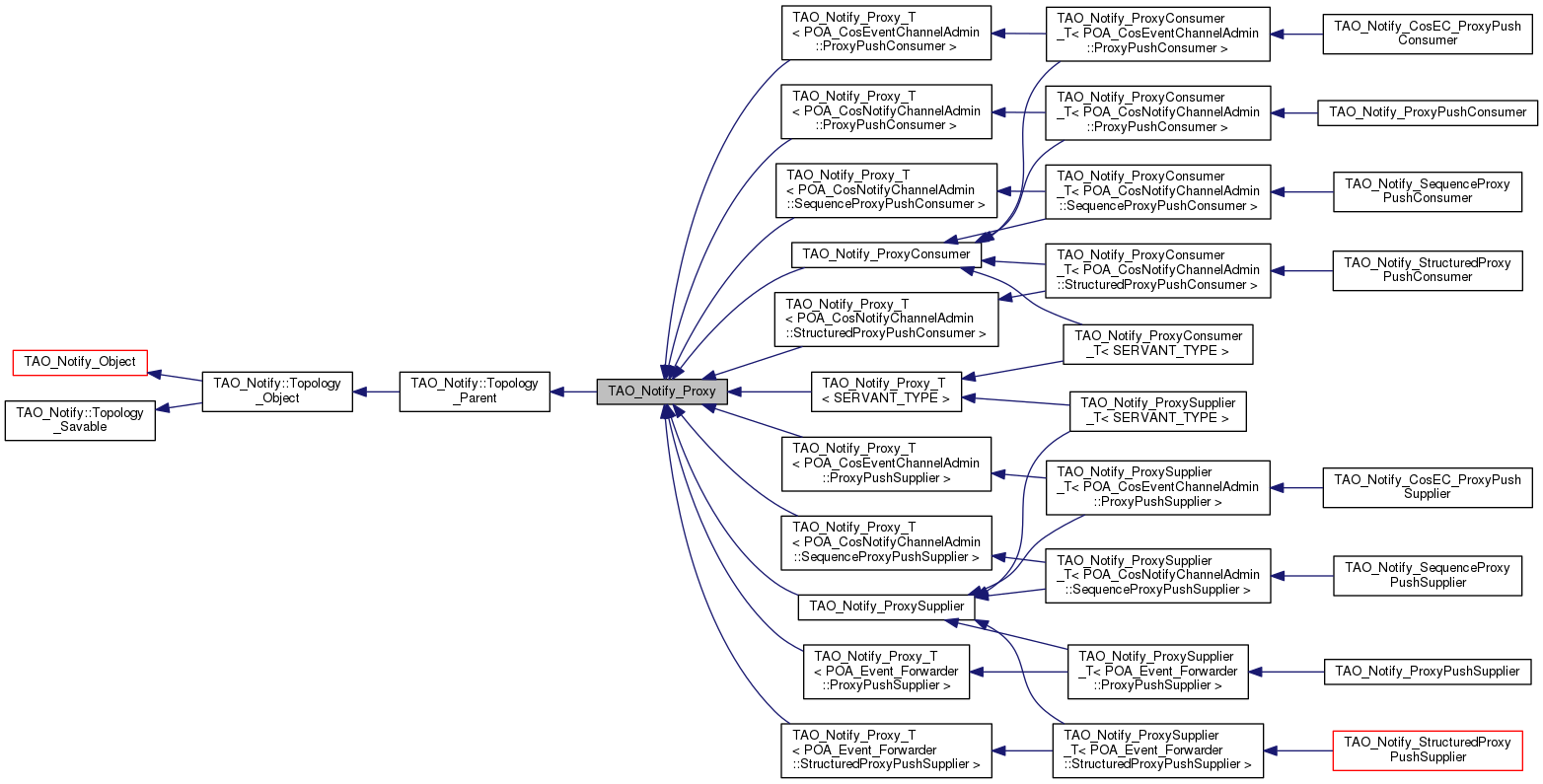

Inheritance diagram for TAO_Notify_Proxy:

[legend]

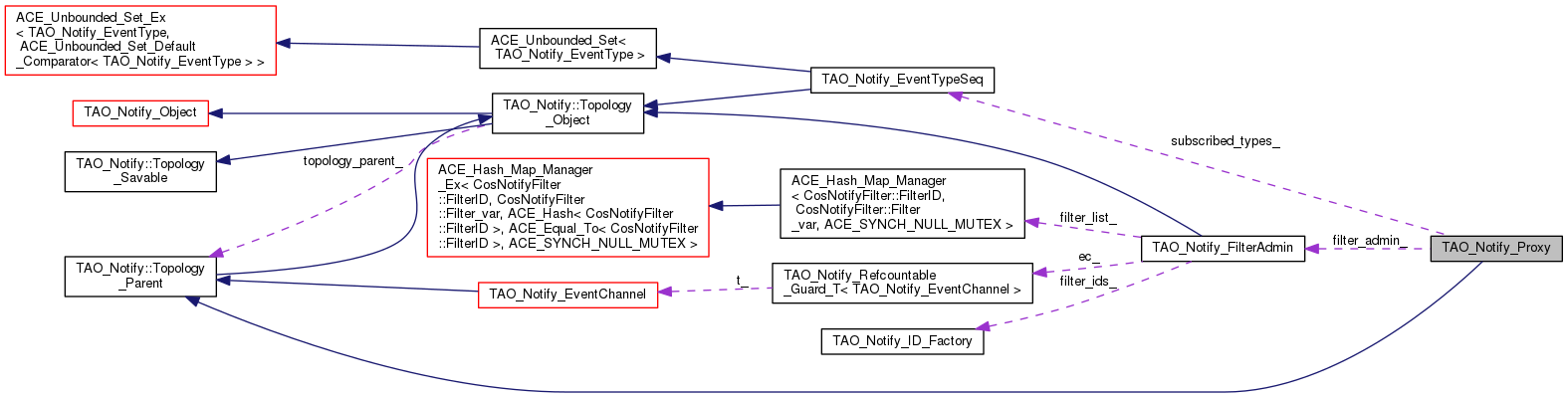

Collaboration diagram for TAO_Notify_Proxy:

[legend]

Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Proxy >	Ptr

typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ

typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR

Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects. More...

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_Proxy (void)
	Constructor. More...

virtual	~TAO_Notify_Proxy ()
	Destructor. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID. More...

void	deactivate (void)
	Deactivate. More...

void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types. More...

CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters. More...

void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised. More...

CORBA::Boolean	updates_off (void)
	Have updates been turned off. More...

virtual void	destroy (void)=0
	Destroy this object. More...

virtual TAO_Notify_Peer *	peer (void)=0
	Access our Peer. More...

virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types. More...

virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin. More...

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Object::qos_changed. More...

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

virtual const char *	get_proxy_type_name (void) const =0

virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it. More...

virtual void	validate ()=0

Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change (void)

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor. More...

virtual	~Topology_Object ()
	The destructor. More...

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>. More...

virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object. More...

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object. More...

bool	is_changed (void) const
	Is there an unsaved change for this object or its children? More...

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor. More...

ID	id (void) const
	This Object's ID. More...

void	deactivate (void)
	Deactivate. More...

bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown. More...

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref (void)
	Get CORBA Ref. More...

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties. More...

CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties. More...

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager. More...

virtual int	shutdown (void)
	Shutdown. Returns 1 if the shutdown was already run once before. More...

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task. More...

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt (void)

CORBA::ULong	_decr_refcnt (void)

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor. More...

virtual void	reconnect (void)

Protected Attributes
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration. More...

TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager. More...

CORBA::Boolean	updates_off_
	True if updates have been turned off. More...

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent More...

bool	children_changed_
	true of any of this object's children changed since last save_persistent More...

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;. More...

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members. More...

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables. More...

Friends
class	TAO_Notify_Peer

Additional Inherited Members
Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent (void) const
	Should this object be saved? More...

bool	self_change (void)
	Method to report change in this object. More...

Topology_Parent *	topology_parent () const
	pointer to our topological parent More...

bool	send_change (void)
	Handle details of propagating change. More...

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object. More...

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object (void)
	Constructor. More...

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>. More...

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object. More...

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas. More...

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_. More...

TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us. More...

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties. More...

Detailed Description

Base class proxy for all proxys in NS.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Proxy> TAO_Notify_Proxy::Ptr

typedef CosNotifyChannelAdmin::ProxyIDSeq TAO_Notify_Proxy::SEQ

typedef CosNotifyChannelAdmin::ProxyIDSeq_var TAO_Notify_Proxy::SEQ_VAR

Constructor & Destructor Documentation

TAO_Notify_Proxy::TAO_Notify_Proxy ( void )

Constructor.

TAO_Notify_Proxy::~TAO_Notify_Proxy ( )

virtual

Destructor.

Member Function Documentation

CORBA::Object_ptr TAO_Notify_Proxy::activate ( PortableServer::Servant servant )

virtual

Activate.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

CORBA::Object_ptr TAO_Notify_Proxy::activate	(	PortableServer::Servant	servant,
		CORBA::Long	id
	)

virtual

Activate with a given ID.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

virtual void TAO_Notify_Proxy::admin_types_changed	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed
	)

pure virtual

Notification of subscriptions/offers set at the admin.

CORBA::Boolean TAO_Notify_Proxy::check_filters	(	const TAO_Notify_Event *	event,
		TAO_Notify_FilterAdmin &	parent_filter_admin,
		CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator
	)

Check if this event passes the admin and proxy filters.

void TAO_Notify_Proxy::deactivate ( void )

Deactivate.

virtual void TAO_Notify_Proxy::destroy ( void )

pure virtual

Destroy this object.

Implemented in TAO_Notify_ProxySupplier, and TAO_Notify_ProxyConsumer.

virtual const char* TAO_Notify_Proxy::get_proxy_type_name ( void ) const

pure virtual

Implemented in TAO_Notify_StructuredProxyPushConsumer, TAO_Notify_StructuredProxyPushSupplier, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_ProxyPushSupplier, TAO_Notify_CosEC_ProxyPushSupplier, TAO_Notify_ProxyPushConsumer, TAO_Notify_CosEC_ProxyPushConsumer, and TAO_Notify_SequenceProxyPushConsumer.

TAO_Notify::Topology_Object * TAO_Notify_Proxy::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs
	)

virtual

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

CosNotification::EventTypeSeq * TAO_Notify_Proxy::obtain_types	(	CosNotifyChannelAdmin::ObtainInfoMode	mode,
		const TAO_Notify_EventTypeSeq &	types
	)

virtual

Implement the Obtain Types.

virtual TAO_Notify_Peer* TAO_Notify_Proxy::peer ( void )

pure virtual

Access our Peer.

Implemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

void TAO_Notify_Proxy::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

virtual

Override, TAO_Notify_Object::qos_changed.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_ProxySupplier.

void TAO_Notify_Proxy::save_attrs ( TAO_Notify::NVPList & attrs )

virtual

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_Proxy::save_persistent ( TAO_Notify::Topology_Saver & saver )

virtual

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

void TAO_Notify_Proxy::subscribed_types ( TAO_Notify_EventTypeSeq & subscribed_types )

Obtain the Proxy's subscribed types.

void TAO_Notify_Proxy::types_changed	(	const TAO_Notify_EventTypeSeq &	added,
		const TAO_Notify_EventTypeSeq &	removed
	)

Inform this proxy that the following types are being advertised.

CORBA::Boolean TAO_Notify_Proxy::updates_off ( void )

Have updates been turned off.

virtual void TAO_Notify_Proxy::validate ( )

pure virtual

Implemented in TAO_Notify_CosEC_ProxyPushSupplier, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_ProxyPushSupplier, TAO_Notify_StructuredProxyPushSupplier, TAO_Notify_ProxyPushConsumer, TAO_Notify_SequenceProxyPushConsumer, TAO_Notify_StructuredProxyPushConsumer, and TAO_Notify_CosEC_ProxyPushConsumer.

Friends And Related Function Documentation

friend class TAO_Notify_Peer

friend

Member Data Documentation

TAO_Notify_FilterAdmin TAO_Notify_Proxy::filter_admin_

protected

Filter Administration.

TAO_Notify_EventTypeSeq TAO_Notify_Proxy::subscribed_types_

protected

The types that we're subscribed with the event manager.

CORBA::Boolean TAO_Notify_Proxy::updates_off_

protected

True if updates have been turned off.

The documentation for this class was generated from the following files:
