TAO_ECG_Simple_Mcast_EH Class Reference

Simple Event Handler for mcast messages. Listens for messages on a single mcast group. Useful in environments where event traffic is not separated into different groups. Calls handle_input (ACE_SOCK_Dgram_Mcast dgram) on a specified TAO_ECG_Dgram_Handler to inform it about message arrival. More...

#include <ECG_Simple_Mcast_EH.h>

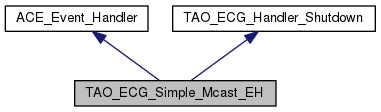

Inheritance diagram for TAO_ECG_Simple_Mcast_EH:

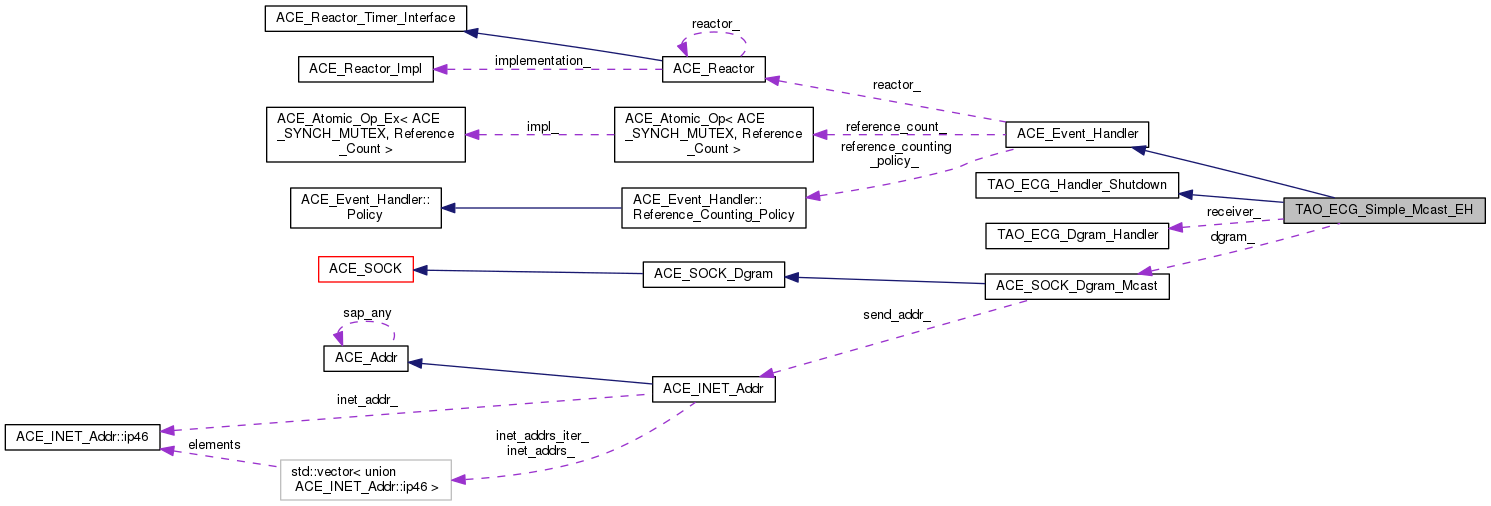

Collaboration diagram for TAO_ECG_Simple_Mcast_EH:

Public Member Functions
virtual int	handle_input (ACE_HANDLE fd)
	TAO_ECG_Simple_Mcast_EH (TAO_ECG_Dgram_Handler *recv)
	Initialization and termination methods. More...
virtual	~TAO_ECG_Simple_Mcast_EH (void)
	Destructor. More...
int	open (const char *mcast_addr, const ACE_TCHAR *net_if=0)
virtual int	shutdown (void)
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
Public Member Functions inherited from TAO_ECG_Handler_Shutdown
virtual	~TAO_ECG_Handler_Shutdown (void)

Private Attributes
ACE_SOCK_Dgram_Mcast	dgram_
TAO_ECG_Dgram_Handler *	receiver_
	We callback to this object when a message arrives. More...

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Simple Event Handler for mcast messages. Listens for messages on a single mcast group. Useful in environments where event traffic is not separated into different groups. Calls handle_input (ACE_SOCK_Dgram_Mcast dgram) on a specified TAO_ECG_Dgram_Handler to inform it about message arrival.

NOT THREAD-SAFE.

Constructor & Destructor Documentation

TAO_ECG_Simple_Mcast_EH::TAO_ECG_Simple_Mcast_EH

(

TAO_ECG_Dgram_Handler *

recv

)

Initialization and termination methods.

Constructor. Messages received by this EH will be forwarded to the <recv>.

TAO_ECG_Simple_Mcast_EH::~TAO_ECG_Simple_Mcast_EH ( void  )

virtual

Destructor.

Member Function Documentation

int TAO_ECG_Simple_Mcast_EH::handle_input ( ACE_HANDLE  fd )

virtual

Main method - reactor callback. Notify <receiver_> that <dgram_> is ready for reading.

Reimplemented from ACE_Event_Handler.

int TAO_ECG_Simple_Mcast_EH::open	(	const char *	mcast_addr,
		const ACE_TCHAR *	net_if = 0
	)

Join the specified multicast group and register itself with the reactor. To insure proper resource clean up, if open () is successful, the user MUST call shutdown () when handler is no longer needed (and its reactor still exists).

int TAO_ECG_Simple_Mcast_EH::shutdown ( void  )

virtual

TAO_ECG_Handler_Shutdown method. Unsubscribe from the reactor and close the datagram.

Implements TAO_ECG_Handler_Shutdown.

Member Data Documentation

ACE_SOCK_Dgram_Mcast TAO_ECG_Simple_Mcast_EH::dgram_

private

TAO_ECG_Dgram_Handler* TAO_ECG_Simple_Mcast_EH::receiver_

private

We callback to this object when a message arrives.

---

The documentation for this class was generated from the following files:

• ECG_Simple_Mcast_EH.h
• ECG_Simple_Mcast_EH.cpp
