TAO_EC_Reactive_SupplierControl Class Reference

SupplierControl. More...

#include <EC_Reactive_SupplierControl.h>

Inheritance diagram for TAO_EC_Reactive_SupplierControl:

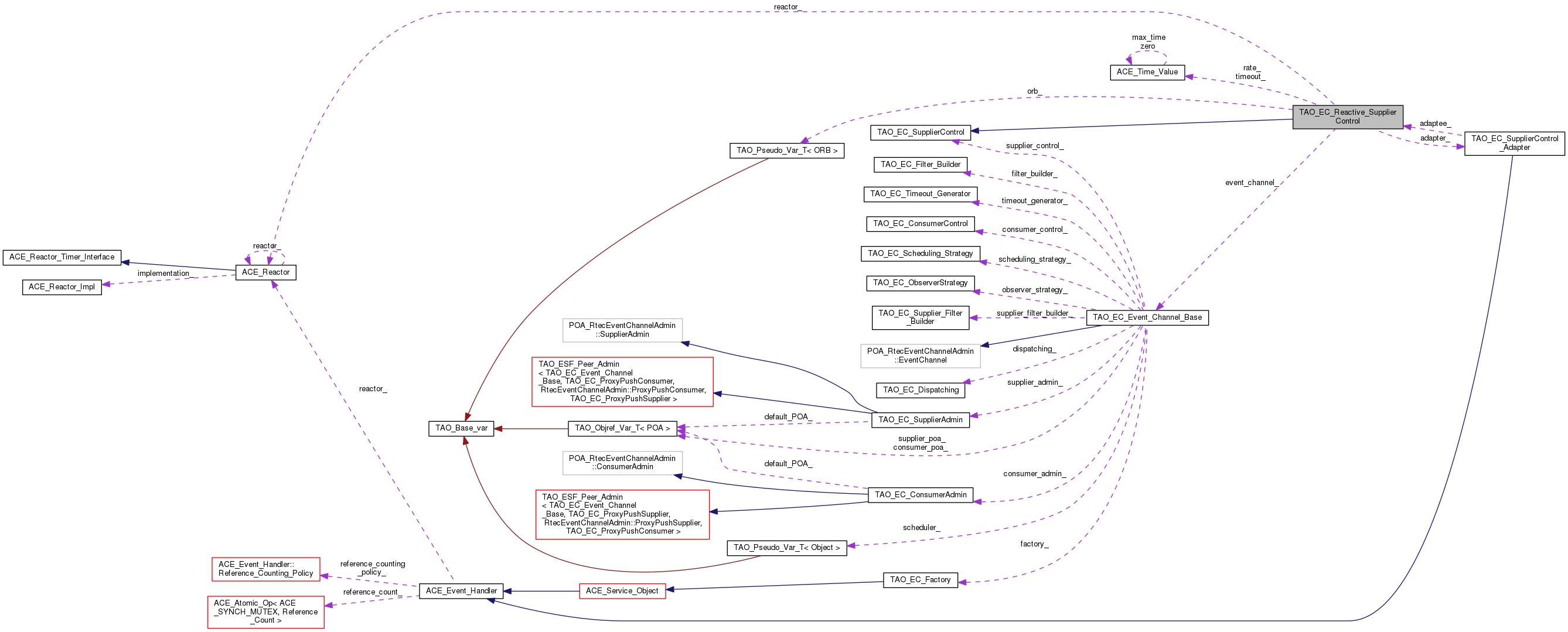

Collaboration diagram for TAO_EC_Reactive_SupplierControl:

Public Member Functions
	TAO_EC_Reactive_SupplierControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, TAO_EC_Event_Channel_Base *event_channel, CORBA::ORB_ptr orb)
virtual	~TAO_EC_Reactive_SupplierControl (void)
	Destructor. More...
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter. More...
virtual int	activate (void)
virtual int	shutdown (void)
virtual void	supplier_not_exist (TAO_EC_ProxyPushConsumer *proxy)
virtual void	system_exception (TAO_EC_ProxyPushConsumer *proxy, CORBA::SystemException &)
Public Member Functions inherited from TAO_EC_SupplierControl
	TAO_EC_SupplierControl (void)
	Constructor. More...
virtual	~TAO_EC_SupplierControl (void)
	Destructor. More...

Private Member Functions
void	query_suppliers (void)

Private Attributes
ACE_Time_Value	rate_
	The polling rate. More...
ACE_Time_Value	timeout_
	The polling timeout. More...
TAO_EC_SupplierControl_Adapter	adapter_
	The Adapter for the reactor events. More...
TAO_EC_Event_Channel_Base *	event_channel_
	The event channel. More...
CORBA::ORB_var	orb_
	The ORB. More...
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread. More...
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout. More...
ACE_Reactor *	reactor_
	The ORB reactor. More...
long	timer_id_
	The timer id. More...

Detailed Description

SupplierControl.

Defines the interface for the supplier control strategy. This strategy handles misbehaving or failing suppliers.

Constructor & Destructor Documentation

TAO_EC_Reactive_SupplierControl::TAO_EC_Reactive_SupplierControl	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	timeout,
		TAO_EC_Event_Channel_Base *	event_channel,
		CORBA::ORB_ptr	orb
	)

Constructor. It does not assume ownership of the event_channel parameter.

TAO_EC_Reactive_SupplierControl::~TAO_EC_Reactive_SupplierControl ( void  )

virtual

Destructor.

Member Function Documentation

int TAO_EC_Reactive_SupplierControl::activate ( void  )

virtual

Activate any internal threads or timers used to poll the state of the suppliers

Reimplemented from TAO_EC_SupplierControl.

void TAO_EC_Reactive_SupplierControl::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

void TAO_EC_Reactive_SupplierControl::query_suppliers ( void  )

private

Check if the suppliers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

int TAO_EC_Reactive_SupplierControl::shutdown ( void  )

virtual

Reimplemented from TAO_EC_SupplierControl.

void TAO_EC_Reactive_SupplierControl::supplier_not_exist ( TAO_EC_ProxyPushConsumer *  proxy )

virtual

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_EC_SupplierControl.

void TAO_EC_Reactive_SupplierControl::system_exception ( TAO_EC_ProxyPushConsumer *  proxy, CORBA::SystemException &    )

virtual

Some system exception was raised while trying to contact the supplier

Reimplemented from TAO_EC_SupplierControl.

Member Data Documentation

TAO_EC_SupplierControl_Adapter TAO_EC_Reactive_SupplierControl::adapter_

private

The Adapter for the reactor events.

TAO_EC_Event_Channel_Base* TAO_EC_Reactive_SupplierControl::event_channel_

private

The event channel.

CORBA::ORB_var TAO_EC_Reactive_SupplierControl::orb_

private

The ORB.

CORBA::PolicyCurrent_var TAO_EC_Reactive_SupplierControl::policy_current_

private

To control the timeout policy in the thread.

CORBA::PolicyList TAO_EC_Reactive_SupplierControl::policy_list_

private

Precomputed policy list to the set timeout.

ACE_Time_Value TAO_EC_Reactive_SupplierControl::rate_

private

The polling rate.

ACE_Reactor* TAO_EC_Reactive_SupplierControl::reactor_

private

The ORB reactor.

ACE_Time_Value TAO_EC_Reactive_SupplierControl::timeout_

private

The polling timeout.

long TAO_EC_Reactive_SupplierControl::timer_id_

private

The timer id.

---

The documentation for this class was generated from the following files:

• EC_Reactive_SupplierControl.h
• EC_Reactive_SupplierControl.cpp
