TAO_EC_Reactive_ConsumerControl Class Reference

ConsumerControl. More...

#include <EC_Reactive_ConsumerControl.h>

Inheritance diagram for TAO_EC_Reactive_ConsumerControl:

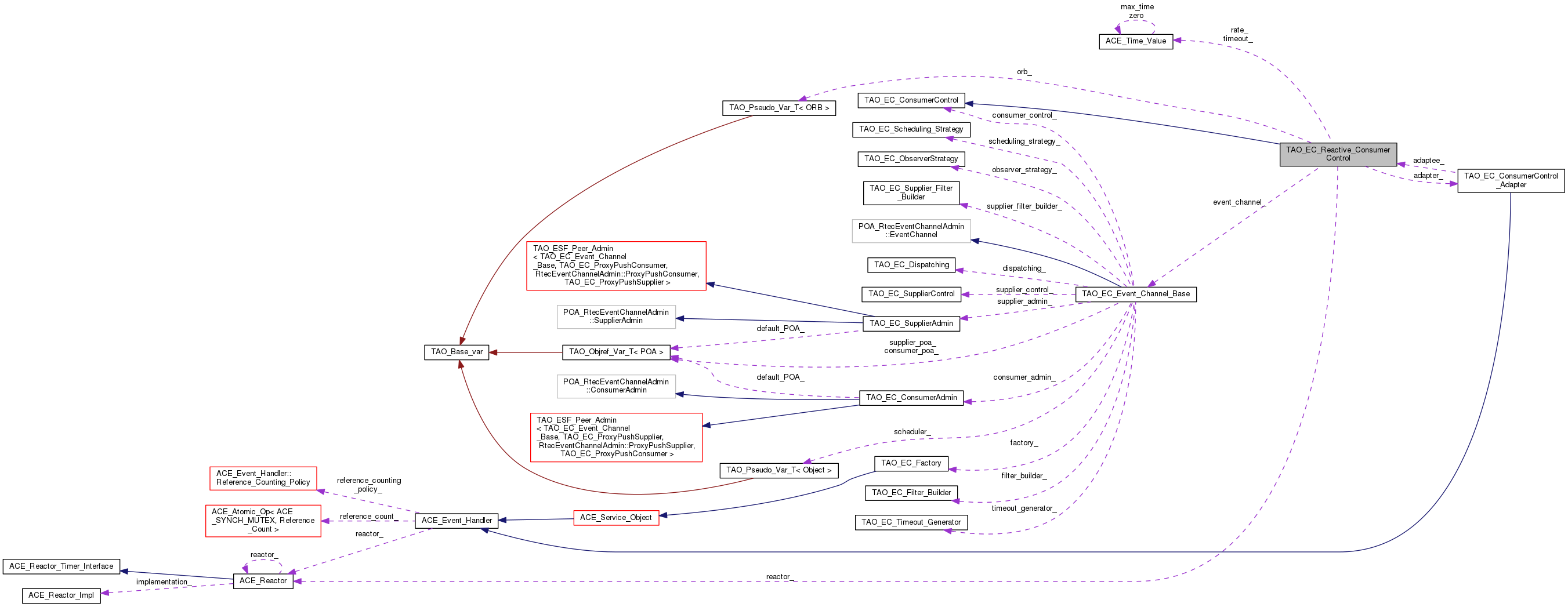

Collaboration diagram for TAO_EC_Reactive_ConsumerControl:

Public Member Functions
	TAO_EC_Reactive_ConsumerControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, TAO_EC_Event_Channel_Base *event_channel, CORBA::ORB_ptr orb)
virtual	~TAO_EC_Reactive_ConsumerControl (void)
	Destructor. More...
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter. More...
virtual int	activate (void)
virtual int	shutdown (void)
virtual void	consumer_not_exist (TAO_EC_ProxyPushSupplier *proxy)
virtual void	system_exception (TAO_EC_ProxyPushSupplier *proxy, CORBA::SystemException &)
Public Member Functions inherited from TAO_EC_ConsumerControl
	TAO_EC_ConsumerControl (void)
	Constructor. More...
virtual	~TAO_EC_ConsumerControl (void)
	Destructor. More...

Private Member Functions
void	query_consumers (void)

Private Attributes
ACE_Time_Value	rate_
	The polling rate. More...
ACE_Time_Value	timeout_
	The polling timeout. More...
TAO_EC_ConsumerControl_Adapter	adapter_
	The Adapter for the reactor events. More...
TAO_EC_Event_Channel_Base *	event_channel_
	The event channel. More...
CORBA::ORB_var	orb_
	The ORB. More...
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread. More...
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout. More...
ACE_Reactor *	reactor_
	The ORB reactor. More...
long	timer_id_
	The timer id. More...

Detailed Description

ConsumerControl.

Defines the interface for the consumer control strategy. This strategy handles misbehaving or failing consumers.

Constructor & Destructor Documentation

TAO_EC_Reactive_ConsumerControl::TAO_EC_Reactive_ConsumerControl	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	timeout,
		TAO_EC_Event_Channel_Base *	event_channel,
		CORBA::ORB_ptr	orb
	)

Constructor. It does not assume ownership of the event_channel parameter.

TAO_EC_Reactive_ConsumerControl::~TAO_EC_Reactive_ConsumerControl ( void  )

virtual

Destructor.

Member Function Documentation

int TAO_EC_Reactive_ConsumerControl::activate ( void  )

virtual

Activate any internal threads or timers used to poll the state of the consumers

Reimplemented from TAO_EC_ConsumerControl.

void TAO_EC_Reactive_ConsumerControl::consumer_not_exist ( TAO_EC_ProxyPushSupplier *  proxy )

virtual

When pushing an event to the consumer a CORBA::OBJECT_NOT_EXIST exception was raised. The only interpretation is that the object has been destroyed. The strategy has to (at the very least), reclaim all the resources attached to that object.

Reimplemented from TAO_EC_ConsumerControl.

void TAO_EC_Reactive_ConsumerControl::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

void TAO_EC_Reactive_ConsumerControl::query_consumers ( void  )

private

Check if the consumers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

int TAO_EC_Reactive_ConsumerControl::shutdown ( void  )

virtual

Reimplemented from TAO_EC_ConsumerControl.

void TAO_EC_Reactive_ConsumerControl::system_exception ( TAO_EC_ProxyPushSupplier *  proxy, CORBA::SystemException &    )

virtual

Some system exception was raised while trying to contact the consumer

Reimplemented from TAO_EC_ConsumerControl.

Member Data Documentation

TAO_EC_ConsumerControl_Adapter TAO_EC_Reactive_ConsumerControl::adapter_

private

The Adapter for the reactor events.

TAO_EC_Event_Channel_Base* TAO_EC_Reactive_ConsumerControl::event_channel_

private

The event channel.

CORBA::ORB_var TAO_EC_Reactive_ConsumerControl::orb_

private

The ORB.

CORBA::PolicyCurrent_var TAO_EC_Reactive_ConsumerControl::policy_current_

private

To control the timeout policy in the thread.

CORBA::PolicyList TAO_EC_Reactive_ConsumerControl::policy_list_

private

Precomputed policy list to the set timeout.

ACE_Time_Value TAO_EC_Reactive_ConsumerControl::rate_

private

The polling rate.

ACE_Reactor* TAO_EC_Reactive_ConsumerControl::reactor_

private

The ORB reactor.

ACE_Time_Value TAO_EC_Reactive_ConsumerControl::timeout_

private

The polling timeout.

long TAO_EC_Reactive_ConsumerControl::timer_id_

private

The timer id.

---

The documentation for this class was generated from the following files:

• EC_Reactive_ConsumerControl.h
• EC_Reactive_ConsumerControl.cpp
