Make a memory pool that is based on mmap(2). This implementation allows memory to be shared between processes. More...

#include <MMAP_Memory_Pool.h>

Inheritance diagram for ACE_MMAP_Memory_Pool:

[legend]

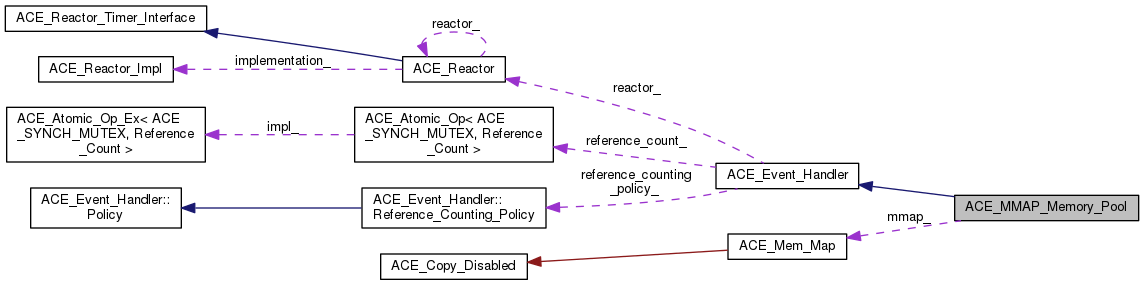

Collaboration diagram for ACE_MMAP_Memory_Pool:

[legend]

Public Types
typedef ACE_MMAP_Memory_Pool_Options	OPTIONS

Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0), WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4), TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8), ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type. More...

Public Member Functions
	ACE_MMAP_Memory_Pool (const ACE_TCHAR backing_store_name=0, const OPTIONS options=0)
	Initialize the pool. More...

virtual	~ACE_MMAP_Memory_Pool (void)
	Destructor. More...

virtual void *	init_acquire (size_t nbytes, size_t &rounded_bytes, int &first_time)
	Ask system for initial chunk of shared memory. More...

virtual void *	acquire (size_t nbytes, size_t &rounded_bytes)

virtual int	release (int destroy=1)
	Instruct the memory pool to release all of its resources. More...

virtual int	sync (size_t len, int flags=MS_SYNC)

virtual int	sync (int flags=MS_SYNC)

virtual int	sync (void *addr, size_t len, int flags=MS_SYNC)
	Sync the memory region to the backing store starting at addr. More...

virtual int	protect (size_t len, int prot=PROT_RDWR)

virtual int	protect (int prot=PROT_RDWR)

virtual int	protect (void *addr, size_t len, int prot=PROT_RDWR)

virtual int	seh_selector (void *)

virtual int	remap (void *addr)

virtual void *	base_addr (void) const
	Return the base address of this memory pool. More...

virtual void	dump (void) const
	Dump the state of an object. More...

ACE_Mem_Map const &	mmap (void) const
	Get reference to underlying ACE_Mem_Map object. More...

ACE_Mem_Map &	mmap (void)
	Get reference to underlying ACE_Mem_Map object. More...

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup. More...

virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle. More...

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle. More...

virtual int	priority (void) const

virtual void	priority (int priority)
	Set the priority of the Event_Handler. More...

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data). More...

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG). More...

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits. More...

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors. More...

virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors. More...

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface. More...

virtual Reference_Count	add_reference (void)
	Increment reference count on the handler. More...

virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler. More...

Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Member Functions
virtual size_t	round_up (size_t nbytes)

virtual int	commit_backing_store_name (size_t rounded_bytes, size_t &map_size)

virtual int	map_file (size_t map_size)
	Memory map the file up to map_size bytes. More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class. More...

Protected Attributes
ACE_Mem_Map	mmap_
	Memory-mapping object. More...

void *	base_addr_

int	use_fixed_addr_
	Must we use the `base_addr_` or can we let mmap(2) select it? More...

int	flags_
	Flags passed into ACE_OS::mmap(). More...

bool	write_each_page_

size_t	minimum_bytes_
	What the minimum bytes of the initial segment should be. More...

ACE_TCHAR	backing_store_name_ [MAXPATHLEN+1]
	Name of the backing store where the shared memory pool is kept. More...

bool	guess_on_fault_

LPSECURITY_ATTRIBUTES	sa_
	Security attributes object, only used on NT. More...

mode_t	file_mode_
	Protection mode for mmaped file. More...

bool	install_signal_handler_
	Should we install a signal handler. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count. More...

Additional Inherited Members
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method. More...

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting. More...

Detailed Description

Make a memory pool that is based on mmap(2). This implementation allows memory to be shared between processes.

Member Typedef Documentation

typedef ACE_MMAP_Memory_Pool_Options ACE_MMAP_Memory_Pool::OPTIONS

Constructor & Destructor Documentation

ACE_MMAP_Memory_Pool::ACE_MMAP_Memory_Pool	(	const ACE_TCHAR *	backing_store_name = `0`,
		const OPTIONS *	options = `0`
	)

Initialize the pool.

ACE_MMAP_Memory_Pool::~ACE_MMAP_Memory_Pool ( void )

virtual

Destructor.

Member Function Documentation

void * ACE_MMAP_Memory_Pool::acquire	(	size_t	nbytes,
		size_t &	rounded_bytes
	)

virtual

Acquire at least nbytes from the memory pool. rounded_bytes is the actual number of bytes allocated. Also acquires an internal semaphore that ensures proper serialization of ACE_MMAP_Memory_Pool initialization across processes.

void * ACE_MMAP_Memory_Pool::base_addr ( void ) const

virtual

Return the base address of this memory pool.

int ACE_MMAP_Memory_Pool::commit_backing_store_name	(	size_t	rounded_bytes,
		size_t &	map_size
	)

protectedvirtual

Compute the new map_size of the backing store and commit the memory.

void ACE_MMAP_Memory_Pool::dump ( void ) const

virtual

Dump the state of an object.

void * ACE_MMAP_Memory_Pool::init_acquire	(	size_t	nbytes,
		size_t &	rounded_bytes,
		int &	first_time
	)

virtual

Ask system for initial chunk of shared memory.

int ACE_MMAP_Memory_Pool::map_file ( size_t map_size )

protectedvirtual

Memory map the file up to map_size bytes.

ACE_Mem_Map const & ACE_MMAP_Memory_Pool::mmap ( void ) const

inline

Get reference to underlying ACE_Mem_Map object.

ACE_Mem_Map & ACE_MMAP_Memory_Pool::mmap ( void )

inline

Get reference to underlying ACE_Mem_Map object.

int ACE_MMAP_Memory_Pool::protect	(	size_t	len,
		int	prot = `PROT_RDWR`
	)

virtual

Change the protection of the pages of the mapped region to prot starting at this->base_addr_ up to len bytes. If len == -1 then change protection of all pages in the mapped region.

int ACE_MMAP_Memory_Pool::protect ( int prot = PROT_RDWR )

virtual

Change the protection of all the pages of the mapped region to prot starting at this->base_addr_.

int ACE_MMAP_Memory_Pool::protect	(	void *	addr,
		size_t	len,
		int	prot = `PROT_RDWR`
	)

virtual

Change the protection of the pages of the mapped region to prot starting at addr up to len bytes.

int ACE_MMAP_Memory_Pool::release ( int destroy = 1 )

virtual

Instruct the memory pool to release all of its resources.

int ACE_MMAP_Memory_Pool::remap ( void * addr )

virtual

Try to extend the virtual address space so that addr is now covered by the address mapping. The method succeeds and returns 0 if the backing store has adequate memory to cover this address. Otherwise, it returns -1. This method is typically called by a UNIX signal handler for SIGSEGV or a Win32 structured exception when another process has grown the backing store (and its mapping) and our process now incurs a fault because our mapping isn't in range (yet).

size_t ACE_MMAP_Memory_Pool::round_up ( size_t nbytes )

protectedvirtual

Implement the algorithm for rounding up the request to an appropriate chunksize.

int ACE_MMAP_Memory_Pool::seh_selector ( void * ep )

virtual

Win32 Structural exception selector. The return value decides how to handle memory pool related structural exceptions. Returns 1, 0, or , -1.

int ACE_MMAP_Memory_Pool::sync	(	size_t	len,
		int	flags = `MS_SYNC`
	)

virtual

Sync the memory region to the backing store starting at this->base_addr_.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

int ACE_MMAP_Memory_Pool::sync ( int flags = MS_SYNC )

virtual

Sync the memory region to the backing store starting at this->base_addr_. Will sync as much as the backing file allows.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

int ACE_MMAP_Memory_Pool::sync	(	void *	addr,
		size_t	len,
		int	flags = `MS_SYNC`
	)

virtual

Sync the memory region to the backing store starting at addr.

Sync len bytes of the memory region to the backing store starting at <addr_>.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

Member Data Documentation

ACE_MMAP_Memory_Pool::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_TCHAR ACE_MMAP_Memory_Pool::backing_store_name_[MAXPATHLEN+1]

protected

Name of the backing store where the shared memory pool is kept.

void* ACE_MMAP_Memory_Pool::base_addr_

protected

Base of mapped region. If this has the value of 0 then the OS is free to select any address to map the file, otherwise this value is what the OS must try to use to mmap the file.

mode_t ACE_MMAP_Memory_Pool::file_mode_

protected

Protection mode for mmaped file.

int ACE_MMAP_Memory_Pool::flags_

protected

Flags passed into ACE_OS::mmap().

bool ACE_MMAP_Memory_Pool::guess_on_fault_

protected

Try to remap without knowing the faulting address. This parameter is ignored on platforms that know the faulting address (UNIX with SI_ADDR and Win32).

bool ACE_MMAP_Memory_Pool::install_signal_handler_

protected

Should we install a signal handler.

size_t ACE_MMAP_Memory_Pool::minimum_bytes_

protected

What the minimum bytes of the initial segment should be.

ACE_Mem_Map ACE_MMAP_Memory_Pool::mmap_

protected

Memory-mapping object.

LPSECURITY_ATTRIBUTES ACE_MMAP_Memory_Pool::sa_

protected

Security attributes object, only used on NT.

int ACE_MMAP_Memory_Pool::use_fixed_addr_

protected

Must we use the base_addr_ or can we let mmap(2) select it?

bool ACE_MMAP_Memory_Pool::write_each_page_

protected

Should we write a byte to each page to forceably allocate memory for this backing store?
