Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>. More...

#include <OC_Endpoint_Selector_Factory.h>

Inheritance diagram for TAO_OC_Endpoint_Selector_Factory:

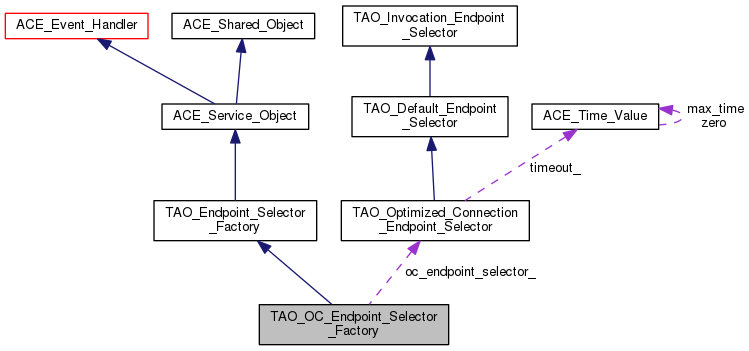

Collaboration diagram for TAO_OC_Endpoint_Selector_Factory:

Public Member Functions
	TAO_OC_Endpoint_Selector_Factory (void)
	Constructor. More...

virtual	~TAO_OC_Endpoint_Selector_Factory (void)
	Destructor. More...

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual TAO_Invocation_Endpoint_Selector *	get_selector (void)

Public Member Functions inherited from TAO_Endpoint_Selector_Factory
virtual	~TAO_Endpoint_Selector_Factory (void)

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Protected Member Functions
int	register_orb_initializer (void)

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes
TAO_Optimized_Connection_Endpoint_Selector *	oc_endpoint_selector_

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Detailed Description

Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>.

Used by Invocation classes to initialize its endpoint selection strategy and state based on the effective policies. Endpoint selection strategies are stateless objects - all the state they need is contained by Invocation in <Endpoint_Selection_State>. Thus, rather than allocating an endpoint selection strategy object for each Invocation, the factory simply returns the appropriate one from the set preallocated in the ORB_Core. One endpoint selection strategy object can be used by many invocations concurrently.

Constructor & Destructor Documentation

TAO_OC_Endpoint_Selector_Factory::TAO_OC_Endpoint_Selector_Factory ( void )

Constructor.

TAO_OC_Endpoint_Selector_Factory::~TAO_OC_Endpoint_Selector_Factory ( void )

virtual

Destructor.

Member Function Documentation

TAO_Invocation_Endpoint_Selector * TAO_OC_Endpoint_Selector_Factory::get_selector ( void )

virtual

Get an Invocation's endpoint selection strategy and initialize the endpoint selection state instance.

Implements TAO_Endpoint_Selector_Factory.

int TAO_OC_Endpoint_Selector_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Reimplemented from ACE_Shared_Object.

int TAO_OC_Endpoint_Selector_Factory::register_orb_initializer ( void )

protected

Register the RTCORBA ORBInitializer.

Member Data Documentation

TAO_Optimized_Connection_Endpoint_Selector* TAO_OC_Endpoint_Selector_Factory::oc_endpoint_selector_

protected

The possible endpoint selector strategies that can be returned by this factory

The documentation for this class was generated from the following files:
