ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY > Class Template Reference

Provides a very fast and predictable timer implementation. More...

#include <Timer_Heap_T.h>

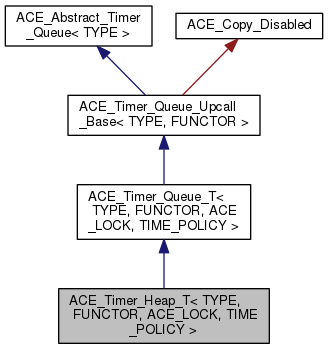

Inheritance diagram for ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:
Inheritance graph
[legend]

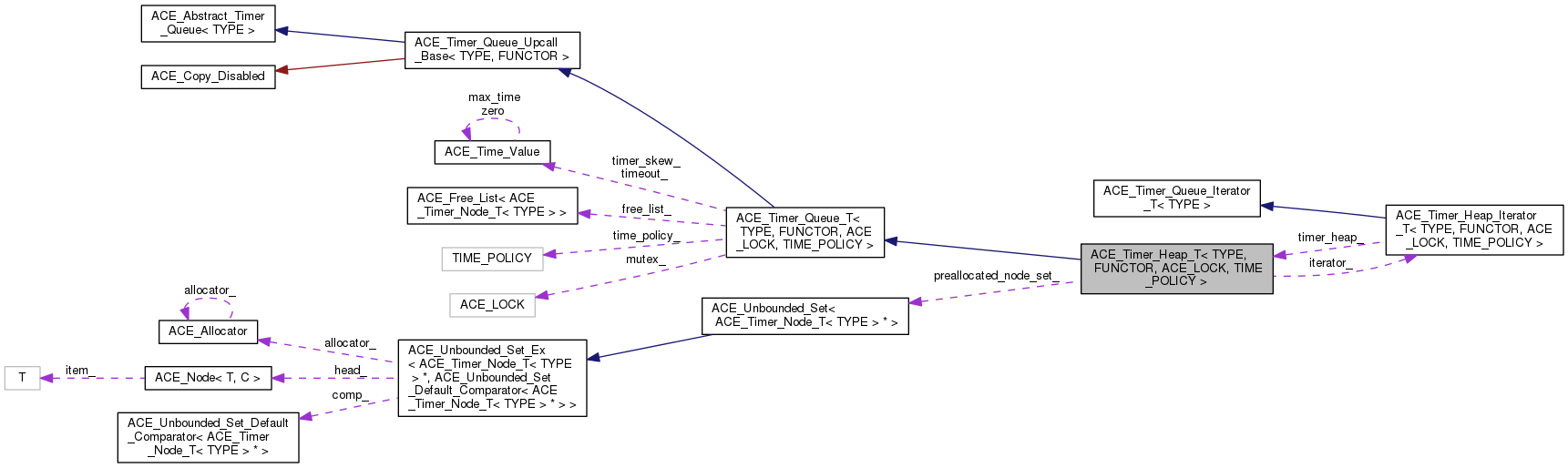

Collaboration diagram for ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:
Collaboration graph
[legend]

Public Types

typedef ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY > HEAP_ITERATOR

typedef ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY > Base_Time_Policy

- Public Types inherited from ACE_Abstract_Timer_Queue< TYPE >
typedef ACE_Timer_Queue_Iterator_T< TYPE > ITERATOR
 Type of Iterator. More...


Public Member Functions

 ACE_Timer_Heap_T (size_t size, bool preallocated=false, FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())

 ACE_Timer_Heap_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())

virtual ~ACE_Timer_Heap_T (void)
 Destructor. More...

virtual bool is_empty (void) const
 True if heap is empty, else false. More...

virtual const ACE_Time_Valueearliest_time (void) const

virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)

virtual int cancel (const TYPE &type, int dont_call_handle_close=1)

virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)

virtual int close (void)

virtual ACE_Timer_Queue_Iterator_T< TYPE > & iter (void)
 Returns a pointer to this ACE_Timer_Queue's iterator. More...

ACE_Timer_Node_T< TYPE > * remove_first (void)

virtual void dump (void) const
 Dump the state of an object. More...

virtual ACE_Timer_Node_T< TYPE > * get_first (void)
 Reads the earliest node from the queue and returns it. More...

- Public Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
 ACE_Timer_Queue_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())

virtual ~ACE_Timer_Queue_T (void)

virtual long schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)

virtual int dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)

virtual void gettimeofday (ACE_Time_Value(*gettimeofday)(void))

ACE_Time_Value gettimeofday_static ()

void set_time_policy (TIME_POLICY const &time_policy)

void timer_skew (const ACE_Time_Value &skew)
 Set the timer skew for the Timer_Queue. More...

const ACE_Time_Valuetimer_skew (void) const
 Get the timer skew for the Timer_Queue. More...

ACE_LOCK & mutex (void)
 Synchronization variable used by the queue. More...

virtual void return_node (ACE_Timer_Node_T< TYPE > *)

void preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
 This method will call the preinvoke() on <functor>. More...

void upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
 This method will call the timeout() on <functor>. More...

void postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
 This method will call the postinvoke() on <functor>. More...

virtual int expire (const ACE_Time_Value &current_time)

virtual int expire (void)

virtual int expire_single (ACE_Command_Base &pre_dispatch_command)

virtual ACE_Time_Value gettimeofday (void)

virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max)

virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max, ACE_Time_Value *the_timeout)

virtual ACE_Time_Value current_time ()

- Public Member Functions inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
 ACE_Timer_Queue_Upcall_Base (FUNCTOR *upcall_functor=0)

virtual ~ACE_Timer_Queue_Upcall_Base (void)
 Destructor. More...

FUNCTOR & upcall_functor (void)
 Accessor to the upcall functor. More...

- Public Member Functions inherited from ACE_Abstract_Timer_Queue< TYPE >
virtual ~ACE_Abstract_Timer_Queue (void)=0
 Destructor. More...


Protected Member Functions

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)

virtual void reschedule (ACE_Timer_Node_T< TYPE > *)
 Reschedule an "interval" ACE_Timer_Node. More...

virtual ACE_Timer_Node_T< TYPE > * alloc_node (void)

virtual void free_node (ACE_Timer_Node_T< TYPE > *)

- Protected Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
virtual int dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
 Non-locking version of dispatch_info () More...

void recompute_next_abs_interval_time (ACE_Timer_Node_T< TYPE > *expired, const ACE_Time_Value &cur_time)
 Recompute when the next time is that this interval timer should fire. More...


Private Member Functions

ACE_Timer_Node_T< TYPE > * remove (size_t slot)

void insert (ACE_Timer_Node_T< TYPE > *new_node)
 Insert new_node into the heap and restore the heap property. More...

void grow_heap (void)

void reheap_up (ACE_Timer_Node_T< TYPE > *new_node, size_t slot, size_t parent)
 Restore the heap property, starting at slot. More...

void reheap_down (ACE_Timer_Node_T< TYPE > *moved_node, size_t slot, size_t child)
 Restore the heap property, starting at slot. More...

void copy (size_t slot, ACE_Timer_Node_T< TYPE > *moved_node)

long timer_id (void)

long pop_freelist (void)
 Pops and returns a new timer id from the freelist. More...

void push_freelist (long old_id)
 Pushes old_id onto the freelist. More...


Private Attributes

size_t max_size_
 Maximum size of the heap. More...

size_t cur_size_
 Current size of the heap. More...

size_t cur_limbo_

HEAP_ITERATORiterator_
 Iterator used to expire timers. More...

ACE_Timer_Node_T< TYPE > ** heap_

ssize_ttimer_ids_

size_t timer_ids_curr_

size_t timer_ids_min_free_

ACE_Timer_Node_T< TYPE > * preallocated_nodes_

ACE_Timer_Node_T< TYPE > * preallocated_nodes_freelist_

ACE_Unbounded_Set< ACE_Timer_Node_T< TYPE > * > preallocated_node_set_


Friends

class ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >


Additional Inherited Members

- Protected Attributes inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
ACE_LOCK mutex_

ACE_Free_List< ACE_Timer_Node_T< TYPE > > * free_list_
 Class that implements a free list. More...

TIME_POLICY time_policy_
 The policy to return the current time of day. More...

bool const delete_free_list_
 Flag to delete only if the class created the <free_list_> More...

- Protected Attributes inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
FUNCTOR * upcall_functor_
 Upcall functor. More...

bool const delete_upcall_functor_
 To delete or not to delete is the question? More...


Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, typename TIME_POLICY = ACE_Default_Time_Policy>
class ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

Provides a very fast and predictable timer implementation.

This implementation uses a heap-based callout queue of absolute times. Therefore, in the average and worst case, scheduling, canceling, and expiring timers is O(log N) (where N is the total number of timers). In addition, we can also preallocate as many ACE_Timer_Node objects as there are slots in the heap. This allows us to completely remove the need for dynamic memory allocation, which is important for real-time systems.

Member Typedef Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Base_Time_Policy
template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
typedef ACE_Timer_Heap_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::HEAP_ITERATOR

Constructor & Destructor Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_Heap_T ( size_t  size,
bool  preallocated = false,
FUNCTOR *  upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *  freelist = 0,
TIME_POLICY const &  time_policy = TIME_POLICY()
)

The Constructor creates a heap with specified number of elements. This can also take in a upcall functor and freelist (if 0, then defaults will be created).

Parameters
sizeThe maximum number of timers that can be inserted into the new object.
preallocatedDefault false, true then all the memory for the ACE_Timer_Node objects will be pre-allocated. This saves time and is more predictable (though it requires more space). Otherwise, timer nodes are allocated as needed.
freelistis the freelist of timer nodes.
upcall_functorIf 0 Timer Heap will create a default FUNCTOR.
template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_Heap_T ( FUNCTOR *  upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *  freelist = 0,
TIME_POLICY const &  time_policy = TIME_POLICY()
)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Heap will create a default FUNCTOR. freelist is the freelist of timer nodes. If 0, then a default freelist will be created. The default size will be ACE_DEFAULT_TIMERS and there will be no preallocation.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::~ACE_Timer_Heap_T ( void  )
virtual

Destructor.

Member Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::alloc_node ( void  )
protectedvirtual

Factory method that allocates a new node (uses operator new if we're not preallocating, otherwise uses an internal freelist).

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
int ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel ( const TYPE &  type,
int  dont_call_handle_close = 1
)
virtual

Cancel all timers associated with type. If dont_call_handle_close is 0 then the <functor> will be invoked. Returns number of timers cancelled.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
int ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel ( long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
)
virtual

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If dont_call_handle_close is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
int ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::close ( void  )
virtual

Destroy timer queue. Cancels all timers.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::copy ( size_t  slot,
ACE_Timer_Node_T< TYPE > *  moved_node
)
private

Copy moved_node into the slot slot of <heap_> and move slot into the corresponding slot in the <timer_id_> array.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::dump ( void  ) const
virtual

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
const ACE_Time_Value & ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::earliest_time ( void  ) const
virtual

Returns the time of the earliest node in the Timer_Queue. Must be called on a non-empty queue.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::free_node ( ACE_Timer_Node_T< TYPE > *  node)
protectedvirtual

Factory method that frees a previously allocated node (uses operator delete if we're not preallocating, otherwise uses an internal freelist).

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::get_first ( void  )
virtual

Reads the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::grow_heap ( void  )
private

Doubles the size of the heap and the corresponding timer_ids array. If preallocation is used, will also double the size of the preallocated array of ACE_Timer_Nodes.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::insert ( ACE_Timer_Node_T< TYPE > *  new_node)
private

Insert new_node into the heap and restore the heap property.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
bool ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::is_empty ( void  ) const
virtual

True if heap is empty, else false.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Queue_Iterator_T< TYPE > & ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iter ( void  )
virtual

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
long ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::pop_freelist ( void  )
private

Pops and returns a new timer id from the freelist.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::push_freelist ( long  old_id)
private

Pushes old_id onto the freelist.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reheap_down ( ACE_Timer_Node_T< TYPE > *  moved_node,
size_t  slot,
size_t  child
)
private

Restore the heap property, starting at slot.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reheap_up ( ACE_Timer_Node_T< TYPE > *  new_node,
size_t  slot,
size_t  parent
)
private

Restore the heap property, starting at slot.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::remove ( size_t  slot)
private

Remove and return the sloth ACE_Timer_Node and restore the heap property.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::remove_first ( void  )
virtual

Removes the earliest node from the queue and returns it. Note that the timer is removed from the heap, but is not freed, and its ID is not reclaimed. The caller is responsible for calling either reschedule() or free_node() after this function returns. Thus, this function is for support of ACE_Timer_Queue::expire and should not be used unadvisedly in other conditions.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
void ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reschedule ( ACE_Timer_Node_T< TYPE > *  expired)
protectedvirtual

Reschedule an "interval" ACE_Timer_Node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
int ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reset_interval ( long  timer_id,
const ACE_Time_Value interval
)
virtual

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
long ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::schedule_i ( const TYPE &  type,
const void *  act,
const ACE_Time_Value future_time,
const ACE_Time_Value interval
)
protectedvirtual

Schedule a timer that may optionally auto-reset. Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that uniquely identifies the the type entry in an internal list. This <timer_id> can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >
long ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::timer_id ( void  )
private

Returns a timer id that uniquely identifies this timer. This id can be used to cancel a timer via the <cancel (int)> method. The timer id returned from this method will never == -1 to avoid conflicts with other failure return values.

Friends And Related Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
friend class ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
friend

Member Data Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
size_t ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cur_limbo_
private

Number of heap entries in transition (removed from the queue, but not freed) and may be rescheduled or freed.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
size_t ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cur_size_
private

Current size of the heap.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
ACE_Timer_Node_T<TYPE>** ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::heap_
private

Current contents of the Heap, which is organized as a "heap" of ACE_Timer_Node *'s. In this context, a heap is a "partially ordered, almost complete" binary tree, which is stored in an array.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
HEAP_ITERATOR* ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iterator_
private

Iterator used to expire timers.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
size_t ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::max_size_
private

Maximum size of the heap.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
ACE_Unbounded_Set<ACE_Timer_Node_T<TYPE> *> ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::preallocated_node_set_
private

Set of pointers to the arrays of preallocated timer nodes. Used to delete the allocated memory when required.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
ACE_Timer_Node_T<TYPE>* ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::preallocated_nodes_
private

If this is non-0, then we preallocate <max_size_> number of ACE_Timer_Node objects in order to reduce dynamic allocation costs. In auto-growing implementation, this points to the last array of nodes allocated.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
ACE_Timer_Node_T<TYPE>* ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::preallocated_nodes_freelist_
private

This points to the head of the <preallocated_nodes_> freelist, which is organized as a stack.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
ssize_t* ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::timer_ids_
private

An array of "pointers" that allows each ACE_Timer_Node in the <heap_> to be located in O(1) time. Basically, <timer_id_[i]> contains the slot in the <heap_> array where an ACE_Timer_Node

  • with timer id <i> resides. Thus, the timer id passed back from <schedule> is really a slot into the <timer_ids> array. The <timer_ids_> array serves two purposes: negative values are indications of free timer IDs, whereas positive values are "pointers" into the <heap_> array for assigned timer IDs.
template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
size_t ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::timer_ids_curr_
private

"Pointer" to the element in the <timer_ids_> array that was last given out as a timer ID.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY = ACE_Default_Time_Policy>
size_t ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::timer_ids_min_free_
private

Index representing the lowest timer ID that has been freed. When the timer_ids_next_ value wraps around, it starts back at this point.


The documentation for this class was generated from the following files:
