ACE  6.3.3
Public Member Functions | Public Attributes | Protected Member Functions | Protected Attributes | List of all members
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > Class Template Reference

Implements a common base class for iterators for a Red-Black Tree ADT. More...

#include <RB_Tree.h>

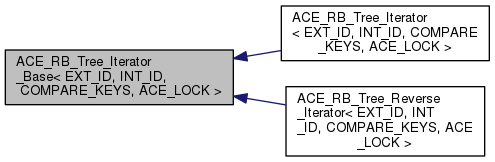

Inheritance diagram for ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:
Inheritance graph
[legend]

Public Member Functions

 ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &iter)
 Copy constructor. More...

void operator= (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &iter)
 Assignment operator: copies both the tree reference and the position in the tree. More...

int done (void) const
 Returns 1 when the iteration has completed, otherwise 0. More...

ACE_RB_Tree_Node< EXT_ID, INT_ID > & operator* (void) const

ACE_RB_Tree_Node< EXT_ID, INT_ID > * operator-> (void) const

const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & tree (void)
 Returns a const reference to the tree over which we're iterating. More...

bool operator== (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &) const
 Comparison operator: returns 1 if both iterators point to the same position, otherwise 0. More...

bool operator!= (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &) const
 Comparison operator: returns 1 if the iterators point to different positions, otherwise 0. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Protected Member Functions

 ACE_RB_Tree_Iterator_Base (void)

 ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree, int set_first)

 ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree, ACE_RB_Tree_Node< EXT_ID, INT_ID > *entry)

 ACE_RB_Tree_Iterator_Base (const EXT_ID &key, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree)

 ~ACE_RB_Tree_Iterator_Base (void)
 Destructor. More...

int forward_i (void)

int reverse_i (void)

void dump_i (void) const
 Dump the state of an object. More...


Protected Attributes

const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > * tree_
 Reference to the ACE_RB_Tree over which we're iterating. More...

ACE_RB_Tree_Node< EXT_ID, INT_ID > * node_
 Pointer to the node currently under the iterator. More...


Detailed Description

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>
class ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Implements a common base class for iterators for a Red-Black Tree ADT.

Constructor & Destructor Documentation

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base ( const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  iter)

Copy constructor.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base ( void  )
inlineprotected

Create the singular iterator. No valid iterator can be equal to it, it is illegal to dereference a singular iterator, etc. etc.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  tree,
int  set_first
)
protected

Constructor. Takes an ACE_RB_Tree over which to iterate, and an integer indicating (if non-zero) to position the iterator at the first element in the tree (if this integer is 0, the iterator is positioned at the last element in the tree).

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  tree,
ACE_RB_Tree_Node< EXT_ID, INT_ID > *  entry
)
protected

Constructor. Takes an ACE_RB_Tree over which to iterate, and a pointer to a node in the tree.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base ( const EXT_ID &  key,
ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  tree
)
protected

Constructor. Takes an ACE_RB_Tree over which to iterate, and a key. The key must come first to distinguish the case of EXT_ID == int.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::~ACE_RB_Tree_Iterator_Base ( void  )
protected

Destructor.

Member Function Documentation

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::done ( void  ) const
inline

Returns 1 when the iteration has completed, otherwise 0.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
void ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_i ( void  ) const
protected

Dump the state of an object.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::forward_i ( void  )
inlineprotected

Move forward by one element in the tree. Returns 0 when there are no more elements in the tree, otherwise 1.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
bool ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator!= ( const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  rbt) const
inline

Comparison operator: returns 1 if the iterators point to different positions, otherwise 0.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Node< EXT_ID, INT_ID > & ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator* ( void  ) const
inline

STL-like iterator dereference operator: returns a reference to the node underneath the iterator.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator-> ( void  ) const
inline

STL-like iterator dereference operator: returns a pointer to the node underneath the iterator.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
void ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator= ( const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  iter)

Assignment operator: copies both the tree reference and the position in the tree.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
bool ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator== ( const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &  rbt) const
inline

Comparison operator: returns 1 if both iterators point to the same position, otherwise 0.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::reverse_i ( void  )
inlineprotected

Move back by one element in the tree. Returns 0 when there are no more elements in the tree, otherwise 1.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::tree ( void  )
inline

Returns a const reference to the tree over which we're iterating.

Member Data Documentation

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::node_
protected

Pointer to the node currently under the iterator.

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >
const ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>* ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::tree_
protected

Reference to the ACE_RB_Tree over which we're iterating.


The documentation for this class was generated from the following files:
