ACE_Priority_Reactor Class Reference

Implements priority based dispatching. More...

#include <Priority_Reactor.h>

Inheritance diagram for ACE_Priority_Reactor:
Inheritance graph
[legend]

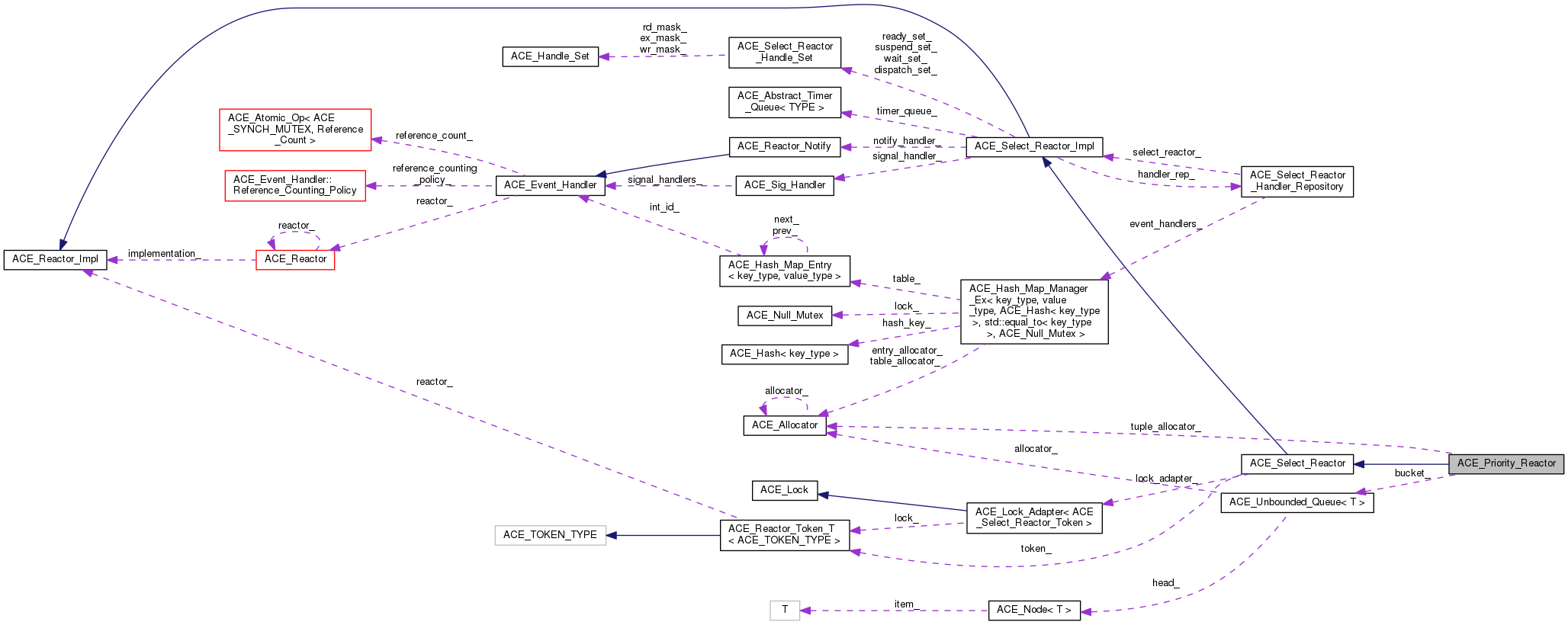

Collaboration diagram for ACE_Priority_Reactor:
Collaboration graph
[legend]

Public Member Functions

 ACE_Priority_Reactor (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0)
 Initialize ACE_Priority_Reactor with the default size. More...

 ACE_Priority_Reactor (size_t size, bool restart=false, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0)
 Initialize ACE_Priority_Reactor with size size. More...

virtual ~ACE_Priority_Reactor (void)
 Close down the select_reactor and release all of its resources. More...

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >
 ACE_Select_Reactor_T (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=ACE_DISABLE_NOTIFY_PIPE_DEFAULT, ACE_Reactor_Notify *notify=0, bool mask_signals=true, int s_queue=ACE_SELECT_TOKEN::FIFO)

 ACE_Select_Reactor_T (size_t size, bool restart=false, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=ACE_DISABLE_NOTIFY_PIPE_DEFAULT, ACE_Reactor_Notify *notify=0, bool mask_signals=true, int s_queue=ACE_SELECT_TOKEN::FIFO)

virtual int open (size_t max_number_of_handles=DEFAULT_SIZE, bool restart=false, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=ACE_DISABLE_NOTIFY_PIPE_DEFAULT, ACE_Reactor_Notify *=0)

virtual int current_info (ACE_HANDLE, size_t &size)
 Returns -1 (not used in this implementation);. More...

virtual int set_sig_handler (ACE_Sig_Handler *signal_handler)
 Use a user specified signal handler instead. More...

virtual int timer_queue (ACE_Timer_Queue *tq)
 Set a user-specified timer queue. More...

virtual ACE_Timer_Queuetimer_queue (void) const
 Return the current ACE_Timer_Queue. More...

virtual int close (void)
 Close down the select_reactor and release all of its resources. More...

virtual ~ACE_Select_Reactor_T (void)
 Close down the select_reactor and release all of its resources. More...

virtual int work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)

virtual int deactivated (void)

virtual void deactivate (int do_stop)

virtual int register_handler (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)

virtual int register_handler (ACE_HANDLE handle, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)

virtual int register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)
 Not implemented. More...

virtual int register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
 Not implemented. More...

virtual int register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
 Register eh with all the handles in the <Handle_Set>. More...

virtual int register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)

virtual int register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)

virtual int remove_handler (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)

virtual int remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask)

virtual int remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask)

virtual int remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)

virtual int remove_handler (const ACE_Sig_Set &sigset)
 Calls <remove_handler> for every signal in sigset. More...

virtual int suspend_handler (ACE_Event_Handler *eh)
 Temporarily suspend the <Event_Handler> associated with eh. More...

virtual int suspend_handler (ACE_HANDLE handle)
 Temporarily suspend the Event_Handler associated with handle. More...

virtual int suspend_handler (const ACE_Handle_Set &handles)
 Suspend all handles in handle set temporarily. More...

virtual int suspend_handlers (void)
 Suspend all the <Event_Handlers> in the Select_Reactor. More...

virtual int resume_handler (ACE_Event_Handler *eh)

virtual int resume_handler (ACE_HANDLE handle)

virtual int resume_handler (const ACE_Handle_Set &handles)
 Resume all handles in handle set. More...

virtual int resume_handlers (void)
 Resume all the <Event_Handlers> in the Select_Reactor. More...

virtual bool uses_event_associations (void)

virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)

virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)

virtual int cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)

virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)

virtual int schedule_wakeup (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
 ADD the dispatch MASK "bit" bound with the eh and the mask. More...

virtual int schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask mask)
 ADD the dispatch MASK "bit" bound with the handle and the mask. More...

virtual int cancel_wakeup (ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
 CLR the dispatch MASK "bit" bound with the eh and the mask. More...

virtual int cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask mask)
 CLR the dispatch MASK "bit" bound with the handle and the mask. More...

virtual int notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)

virtual void max_notify_iterations (int)

virtual int max_notify_iterations (void)

virtual bool restart (void)
 Get the existing restart value. More...

virtual bool restart (bool r)
 Set a new value for restart and return the original value. More...

virtual void requeue_position (int)

virtual int requeue_position (void)

virtual int mask_ops (ACE_Event_Handler *eh, ACE_Reactor_Mask mask, int ops)

virtual int mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)

virtual int ready_ops (ACE_Event_Handler *eh, ACE_Reactor_Mask mask, int ops)
 GET/SET/ADD/CLR the ready "bit" bound with the eh and mask. More...

virtual int ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)
 GET/SET/ADD/CLR the ready "bit" bound with the handle and mask. More...

virtual void wakeup_all_threads (void)
 Wake up all threads in waiting in the event loop. More...

virtual int owner (ACE_thread_t n_id, ACE_thread_t *o_id=0)
 Set the new owner of the thread and return the old owner. More...

virtual int owner (ACE_thread_t *)
 Return the current owner of the thread. More...

virtual ACE_Event_Handlerfind_handler (ACE_HANDLE handle)

virtual int handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **eh=0)

virtual int handler (int signum, ACE_Event_Handler **=0)

virtual bool initialized (void)
 Returns true if we've been successfully initialized, else false. More...

virtual size_t size (void) const

virtual ACE_Locklock (void)

virtual int handle_events (ACE_Time_Value *max_wait_time=0)

virtual int alertable_handle_events (ACE_Time_Value *max_wait_time=0)

virtual int handle_events (ACE_Time_Value &max_wait_time)

virtual int alertable_handle_events (ACE_Time_Value &max_wait_time)

- Public Member Functions inherited from ACE_Select_Reactor_Impl
 ACE_Select_Reactor_Impl (bool mask_signals=true)
 Constructor. More...

virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)

virtual int resumable_handler (void)

- Public Member Functions inherited from ACE_Reactor_Impl
virtual ~ACE_Reactor_Impl (void)
 Close down and release all resources. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_Reactor_Impl
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Protected Member Functions

virtual int dispatch_io_set (int number_of_active_handles, int &number_dispatched, int mask, ACE_Handle_Set &dispatch_mask, ACE_Handle_Set &ready_mask, ACE_EH_PTMF callback)

- Protected Member Functions inherited from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >
virtual int register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)

virtual int register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a set of handles. More...

virtual int remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask)

virtual int remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask)
 Remove a set of handles. More...

virtual int suspend_i (ACE_HANDLE handle)
 Suspend the <Event_Handler> associated with handle. More...

virtual int is_suspended_i (ACE_HANDLE handle)

virtual int resume_i (ACE_HANDLE handle)
 Resume the <Event_Handler> associated with handle. More...

virtual ACE_Event_Handlerfind_handler_i (ACE_HANDLE handle)
 Implement the public handler method. More...

virtual int handler_i (ACE_HANDLE handle, ACE_Reactor_Mask, ACE_Event_Handler **=0)
 Implement the public handler method. More...

virtual int handler_i (int signum, ACE_Event_Handler **=0)
 Implement the public handler method. More...

virtual int any_ready (ACE_Select_Reactor_Handle_Set &handle_set)

virtual int any_ready_i (ACE_Select_Reactor_Handle_Set &handle_set)

virtual int handle_error (void)
 Take corrective action when errors occur. More...

virtual int check_handles (void)
 Make sure the handles are all valid. More...

virtual int wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
 Wait for events to occur. More...

virtual int dispatch (int nfound, ACE_Select_Reactor_Handle_Set &)

virtual int dispatch_timer_handlers (int &number_dispatched)

virtual int dispatch_notification_handlers (ACE_Select_Reactor_Handle_Set &dispatch_set, int &number_of_active_handles, int &number_of_handlers_dispatched)

virtual int dispatch_io_handlers (ACE_Select_Reactor_Handle_Set &dispatch_set, int &number_of_active_handles, int &number_of_handlers_dispatched)

virtual void notify_handle (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Handle_Set &, ACE_Event_Handler *eh, ACE_EH_PTMF callback)

virtual void renew (void)

int release_token (void)
 Release the token lock when a Win32 structured exception occurs. More...

int handle_events_i (ACE_Time_Value *max_wait_time=0)
 Stops the VC++ compiler from bitching about exceptions and destructors. More...

- Protected Member Functions inherited from ACE_Select_Reactor_Impl
virtual int bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &handle_set, int ops)
 Allow manipulation of the <wait_set_> mask and <ready_set_> mask. More...

virtual void clear_dispatch_mask (ACE_HANDLE handle, ACE_Reactor_Mask mask)

int supress_notify_renew (void)

void supress_notify_renew (int sr)


Private Types

typedef ACE_Unbounded_Queue< ACE_Event_TupleQUEUE


Private Member Functions

void init_bucket (void)
 A small helper to initialize the bucket. More...

int build_bucket (ACE_Handle_Set &dispatch_mask, int &min_priority, int &max_priority)

 ACE_Priority_Reactor (const ACE_Priority_Reactor &)
 Deny access since member-wise won't work... More...

ACE_Priority_Reactoroperator= (const ACE_Priority_Reactor &)


Private Attributes

QUEUE ** bucket_

ACE_Allocatortuple_allocator_


Additional Inherited Members

- Public Types inherited from ACE_Select_Reactor_Impl
enum  { DEFAULT_SIZE = ACE_DEFAULT_SELECT_REACTOR_SIZE }

- Protected Attributes inherited from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >
ACE_Select_Reactor_Token token_
 Synchronization token for the MT_SAFE ACE_Select_Reactor. More...

ACE_Lock_Adapter< ACE_Select_Reactor_Tokenlock_adapter_
 Adapter used to return internal lock to outside world. More...

sig_atomic_t deactivated_

- Protected Attributes inherited from ACE_Select_Reactor_Impl
ACE_Select_Reactor_Handler_Repository handler_rep_
 Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s. More...

ACE_Select_Reactor_Handle_Set dispatch_set_
 Tracks handles that are ready for dispatch from <select> More...

ACE_Select_Reactor_Handle_Set wait_set_
 Tracks handles that are waited for by <select>. More...

ACE_Select_Reactor_Handle_Set suspend_set_
 Tracks handles that are currently suspended. More...

ACE_Select_Reactor_Handle_Set ready_set_

ACE_Timer_Queuetimer_queue_
 Defined as a pointer to allow overriding by derived classes... More...

ACE_Sig_Handlersignal_handler_
 Handle signals without requiring global/static variables. More...

ACE_Reactor_Notifynotify_handler_

bool delete_timer_queue_

bool delete_signal_handler_

bool delete_notify_handler_

bool initialized_
 True if we've been initialized yet... More...

bool restart_

int requeue_position_

ACE_thread_t owner_
 The original thread that created this Select_Reactor. More...

bool state_changed_

bool mask_signals_


Detailed Description

Implements priority based dispatching.

This class refines the dispatching mechanism for the Select_Reactor by taking advantage of the priority method on ACE_Event_Handler.

Member Typedef Documentation

There is a queue per-priority, which simply holds the Event_Handlers until we know who goes first.

Constructor & Destructor Documentation

ACE_Priority_Reactor::ACE_Priority_Reactor ( ACE_Sig_Handler sh = 0,
ACE_Timer_Queue tq = 0
)

Initialize ACE_Priority_Reactor with the default size.

ACE_Priority_Reactor::ACE_Priority_Reactor ( size_t  size,
bool  restart = false,
ACE_Sig_Handler sh = 0,
ACE_Timer_Queue tq = 0
)

Initialize ACE_Priority_Reactor with size size.

ACE_Priority_Reactor::~ACE_Priority_Reactor ( void  )
virtual

Close down the select_reactor and release all of its resources.

ACE_Priority_Reactor::ACE_Priority_Reactor ( const ACE_Priority_Reactor )
private

Deny access since member-wise won't work...

Member Function Documentation

int ACE_Priority_Reactor::build_bucket ( ACE_Handle_Set dispatch_mask,
int &  min_priority,
int &  max_priority
)
private

Build the bucket from the given dispatch_mask. Return -1 on failure, 0 otherwise.

int ACE_Priority_Reactor::dispatch_io_set ( int  number_of_active_handles,
int &  number_dispatched,
int  mask,
ACE_Handle_Set dispatch_mask,
ACE_Handle_Set ready_mask,
ACE_EH_PTMF  callback
)
protectedvirtual

We simply override this function to implement the priority dispatching.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_Priority_Reactor::dump ( void  ) const
virtual

Dump the state of an object.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

void ACE_Priority_Reactor::init_bucket ( void  )
private

A small helper to initialize the bucket.

ACE_Priority_Reactor& ACE_Priority_Reactor::operator= ( const ACE_Priority_Reactor )
private

Member Data Documentation

ACE_Priority_Reactor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

QUEUE** ACE_Priority_Reactor::bucket_
private
ACE_Allocator* ACE_Priority_Reactor::tuple_allocator_
private

The queues themselves use this allocator to minimize dynamic memory usage.


The documentation for this class was generated from the following files:
