ACE  6.3.3
Public Member Functions | Private Member Functions | Private Attributes | List of all members
ACE_Name_Proxy Class Reference

Proxy for dealing with remote server process managing NET_LOCAL NameBindings. More...

#include <Name_Proxy.h>

Inheritance diagram for ACE_Name_Proxy:
Inheritance graph
[legend]

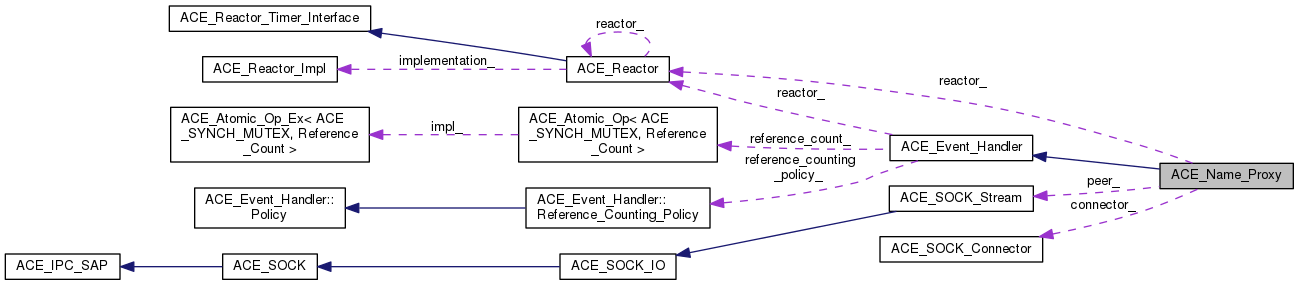

Collaboration diagram for ACE_Name_Proxy:
Collaboration graph
[legend]

Public Member Functions

 ACE_Name_Proxy (void)
 Default constructor. More...

 ACE_Name_Proxy (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

int open (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

int request_reply (ACE_Name_Request &request)
 Perform the request and wait for the reply. More...

int send_request (ACE_Name_Request &request)
 Perform the request. More...

int recv_reply (ACE_Name_Request &reply)
 Receive the reply. More...

virtual ACE_HANDLE get_handle (void) const
 Obtain underlying handle. More...

virtual ~ACE_Name_Proxy (void)
 Close down the connection to the server. More...

void dump (void) const
 Dump the state of the object;. More...

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...

virtual void set_handle (ACE_HANDLE)
 Set the I/O handle. More...

virtual int priority (void) const

virtual void priority (int priority)
 Set the priority of the Event_Handler. More...

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data). More...

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...

virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...

virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...

virtual ACE_Reactor_Timer_Interfacereactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...

virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...

virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...

Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...


Private Member Functions

 ACE_Name_Proxy (const ACE_Name_Proxy &)

ACE_Name_Proxyoperator= (const ACE_Name_Proxy &)


Private Attributes

ACE_SOCK_Connector connector_
 ACE_Connector factory used to establish connections actively. More...

ACE_SOCK_Stream peer_
 Connection to ACE_Name Server peer. More...

ACE_Reactorreactor_
 Pointer to ACE_Reactor (used if we are run in "reactive-mode"). More...


Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
  ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9)
}

enum  { ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long Reference_Count
 Reference count type. More...

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method. More...

- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_CountAtomic_Reference_Count
 Typedef for implementation of reference counting. More...

- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class. More...

- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count. More...


Detailed Description

Proxy for dealing with remote server process managing NET_LOCAL NameBindings.

Shields applications from details of interacting with the ACE_Name Server.

Constructor & Destructor Documentation

ACE_Name_Proxy::ACE_Name_Proxy ( void  )

Default constructor.

ACE_Name_Proxy::ACE_Name_Proxy ( const ACE_INET_Addr remote_addr,
ACE_Synch_Options options = ACE_Synch_Options::defaults
)
ACE_Name_Proxy::~ACE_Name_Proxy ( void  )
virtual

Close down the connection to the server.

ACE_Name_Proxy::ACE_Name_Proxy ( const ACE_Name_Proxy )
private

Member Function Documentation

void ACE_Name_Proxy::dump ( void  ) const

Dump the state of the object;.

ACE_HANDLE ACE_Name_Proxy::get_handle ( void  ) const
virtual

Obtain underlying handle.

Reimplemented from ACE_Event_Handler.

int ACE_Name_Proxy::open ( const ACE_INET_Addr remote_addr,
ACE_Synch_Options options = ACE_Synch_Options::defaults
)
ACE_Name_Proxy& ACE_Name_Proxy::operator= ( const ACE_Name_Proxy )
private
int ACE_Name_Proxy::recv_reply ( ACE_Name_Request reply)

Receive the reply.

int ACE_Name_Proxy::request_reply ( ACE_Name_Request request)

Perform the request and wait for the reply.

int ACE_Name_Proxy::send_request ( ACE_Name_Request request)

Perform the request.

Member Data Documentation

ACE_SOCK_Connector ACE_Name_Proxy::connector_
private

ACE_Connector factory used to establish connections actively.

ACE_SOCK_Stream ACE_Name_Proxy::peer_
private

Connection to ACE_Name Server peer.

ACE_Reactor* ACE_Name_Proxy::reactor_
private

Pointer to ACE_Reactor (used if we are run in "reactive-mode").


The documentation for this class was generated from the following files:
