ACE  6.3.3
Public Types | Public Member Functions | Public Attributes | Protected Attributes | List of all members
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > Class Template Reference

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER. More...

#include <Strategies_T.h>

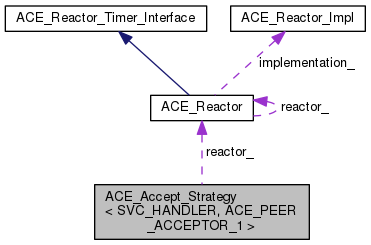

Collaboration diagram for ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >:
Collaboration graph
[legend]

Public Types

typedef ACE_PEER_ACCEPTOR_ADDR addr_type

typedef ACE_PEER_ACCEPTOR acceptor_type

typedef SVC_HANDLER handler_type

typedef SVC_HANDLER::stream_type stream_type


Public Member Functions

 ACE_Accept_Strategy (ACE_Reactor *reactor=ACE_Reactor::instance())
 Default constructor. More...

 ACE_Accept_Strategy (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool restart=false, ACE_Reactor *reactor=ACE_Reactor::instance())
 Initialize the peer_acceptor_ with local_addr. More...

virtual int open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool reuse_addr=false)

virtual ACE_HANDLE get_handle (void) const
 Return the underlying ACE_HANDLE of the <peer_acceptor_>. More...

virtual ACE_PEER_ACCEPTORacceptor (void) const
 Return a reference to the <peer_acceptor_>. More...

virtual ~ACE_Accept_Strategy (void)

virtual int accept_svc_handler (SVC_HANDLER *)

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Protected Attributes

ACE_PEER_ACCEPTOR peer_acceptor_
 Factory that establishes connections passively. More...

ACE_Reactorreactor_
 Pointer to the reactor used by the Acceptor. More...

bool reuse_addr_
 Needed to reopen the socket if <accept> fails. More...

ACE_PEER_ACCEPTOR_ADDR peer_acceptor_addr_
 Needed to reopen the socket if <accept> fails. More...


Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER.

This class provides a strategy that manages passive connection acceptance of a client.

Member Typedef Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::acceptor_type
template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::addr_type
template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::handler_type
template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER::stream_type ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::stream_type

Constructor & Destructor Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_Accept_Strategy ( ACE_Reactor reactor = ACE_Reactor::instance ())
inline

Default constructor.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_Accept_Strategy ( const ACE_PEER_ACCEPTOR_ADDR local_addr,
bool  restart = false,
ACE_Reactor reactor = ACE_Reactor::instance ()
)

Initialize the peer_acceptor_ with local_addr.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::~ACE_Accept_Strategy ( void  )
virtual

Member Function Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
int ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::accept_svc_handler ( SVC_HANDLER *  svc_handler)
virtual

The default behavior delegates to the <accept> method of the PEER_ACCEPTOR.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR & ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::acceptor ( void  ) const
virtual

Return a reference to the <peer_acceptor_>.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
void ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::dump ( void  ) const

Dump the state of an object.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_HANDLE ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::get_handle ( void  ) const
virtual

Return the underlying ACE_HANDLE of the <peer_acceptor_>.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
int ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::open ( const ACE_PEER_ACCEPTOR_ADDR local_addr,
bool  reuse_addr = false
)
virtual

Initialize the <peer_acceptor_> with local_addr, indicating whether to reuse_addr if it's already in use.

Member Data Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::peer_acceptor_
protected

Factory that establishes connections passively.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::peer_acceptor_addr_
protected

Needed to reopen the socket if <accept> fails.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Reactor* ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::reactor_
protected

Pointer to the reactor used by the Acceptor.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
bool ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::reuse_addr_
protected

Needed to reopen the socket if <accept> fails.


The documentation for this class was generated from the following files:
