Concrete QoS Decorator. More...

#include <QoS_Decorator.h>

Inheritance diagram for ACE_QoS_Decorator:

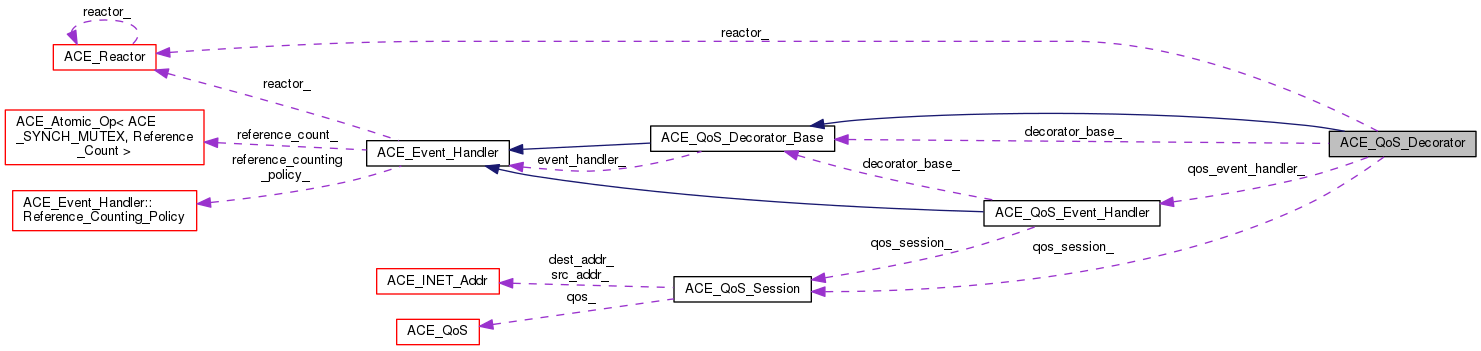

Collaboration diagram for ACE_QoS_Decorator:

Public Member Functions
	ACE_QoS_Decorator (void)
	Constructor. More...

	ACE_QoS_Decorator (ACE_Event_Handler event_handler, ACE_QoS_Session qos_session, ACE_Reactor *reactor=ACE_Reactor::instance())
	Constructor. More...

	~ACE_QoS_Decorator (void)
	Destructor. More...

virtual ACE_HANDLE	get_handle (void) const
	Calls the base class get_handle (). More...

virtual int	handle_input (ACE_HANDLE fd)
	Calls the base class handle_input (). More...

virtual int	handle_qos (ACE_HANDLE fd)
	Calls the base class handle_qos (). More...

int	init (void)

Public Member Functions inherited from ACE_QoS_Decorator_Base
	ACE_QoS_Decorator_Base (void)
	Constructor. More...

	ACE_QoS_Decorator_Base (ACE_Event_Handler *event_handler)
	Constructor. More...

	~ACE_QoS_Decorator_Base (void)
	Destructor. More...

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Private Attributes
ACE_QoS_Decorator_Base *	decorator_base_
	Requests on the class are forwarded to this base class;. More...

ACE_QoS_Event_Handler *	qos_event_handler_

ACE_QoS_Session *	qos_session_

ACE_Reactor *	reactor_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Concrete QoS Decorator.

Decorates the ACE_Event_Handler to additionally handle QoS events uniformly for different QoS mechanisms like RAPI and GQoS.

Constructor & Destructor Documentation

ACE_QoS_Decorator::ACE_QoS_Decorator ( void )

Constructor.

ACE_QoS_Decorator::ACE_QoS_Decorator	(	ACE_Event_Handler *	event_handler,
		ACE_QoS_Session *	qos_session,
		ACE_Reactor *	reactor = `ACE_Reactor::instance ()`
	)

Constructor.

ACE_QoS_Decorator::~ACE_QoS_Decorator ( void )

Destructor.

Member Function Documentation

ACE_HANDLE ACE_QoS_Decorator::get_handle ( void ) const

virtual

Calls the base class get_handle ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::handle_input ( ACE_HANDLE fd )

virtual

Calls the base class handle_input ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::handle_qos ( ACE_HANDLE fd )

virtual

Calls the base class handle_qos ().

Reimplemented from ACE_QoS_Decorator_Base.

int ACE_QoS_Decorator::init ( void )

This method registers the QoS Event Handler with the Reactor to receive RAPI events.

Member Data Documentation

ACE_QoS_Decorator_Base* ACE_QoS_Decorator::decorator_base_

private

Requests on the class are forwarded to this base class;.

ACE_QoS_Event_Handler* ACE_QoS_Decorator::qos_event_handler_

private

Handles the QoS events and in that sense decorates the usual ACE_Event_Handler.

ACE_QoS_Session* ACE_QoS_Decorator::qos_session_

private

Passed to the ACE_QoS_Event_Handler for retrieving the RAPI session specific information like rapi_fd.

ACE_Reactor* ACE_QoS_Decorator::reactor_

private

If the application wants to use an instance of Reactor other than the Singleton one.

The documentation for this class was generated from the following files:
