A GQoS session object. More...

#include <QoS_Session_Impl.h>

Inheritance diagram for ACE_GQoS_Session:

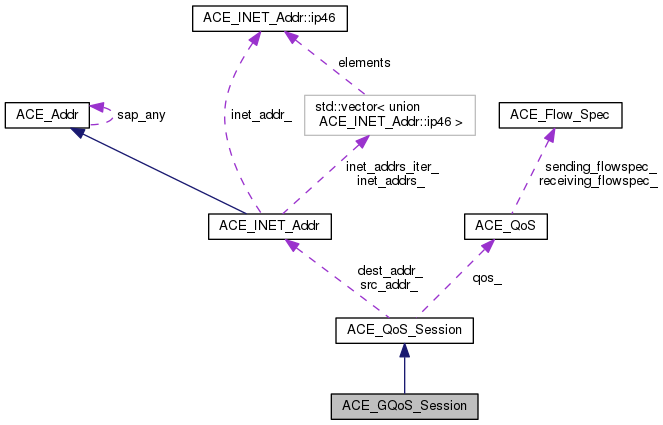

Collaboration diagram for ACE_GQoS_Session:

Public Member Functions
	~ACE_GQoS_Session (void)
	Default destructor. More...

virtual int	open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)
	Open a GQoS session [dest IP, dest port, Protocol ID]. More...

virtual int	close (void)
	Close the GQoS Session. More...

virtual ACE_QoS	qos (void) const
	Returns the QoS for this GQoS session. More...

virtual int	qos (ACE_SOCK socket, ACE_QoS_Manager qos_manager, const ACE_QoS &ace_qos)

virtual void	qos (const ACE_QoS &ace_qos)

virtual int	update_qos (void)

virtual ACE_End_Point_Type	flags (void) const
	Get/Set methods for the flags_. More...

virtual void	flags (const ACE_End_Point_Type flags)

virtual ACE_INET_Addr	dest_addr (void) const
	Get the destination address for this GQoS session. More...

virtual void	dest_addr (const ACE_INET_Addr &dest_addr)
	Set the destination address for this GQoS session. More...

virtual u_short	source_port (void) const
	Get the source port for this session. More...

virtual void	source_port (const u_short &source_port)
	Set the source port for this session. More...

virtual ACE_INET_Addr *	source_addr (void) const

virtual void	source_addr (ACE_INET_Addr *source_addr)
	Set the source port for this session. More...

virtual int	session_id (void) const
	Get the GQoS session id. More...

virtual void	session_id (const int session_id)
	Set the GQoS session id. More...

virtual ACE_HANDLE	rsvp_events_handle (void)
	Get the file descriptor of the underlying socket. More...

virtual void	rsvp_event_type (RSVP_Event_Type event_type)

virtual RSVP_Event_Type	rsvp_event_type (void)
	Set the RAPI event that last occured. More...

virtual int	version ()
	Get the RAPI event that last occured. More...

Public Member Functions inherited from ACE_QoS_Session
virtual	~ACE_QoS_Session (void)
	to shutup g++. More...

Static Public Attributes
static int	GQoS_session_id = 0

Private Member Functions
	ACE_GQoS_Session (void)

Friends
class	ACE_QoS_Session_Factory

Additional Inherited Members
Public Types inherited from ACE_QoS_Session
enum	RSVP_Event_Type { RSVP_PATH_EVENT, RSVP_RESV_EVENT, RSVP_RESV_CONFIRM, RSVP_RESV_ERROR, RSVP_PATH_ERROR }

enum	ACE_End_Point_Type { ACE_QOS_SENDER, ACE_QOS_RECEIVER, ACE_QOS_BOTH }

Protected Attributes inherited from ACE_QoS_Session
u_short	source_port_
	Source port if this is a Sender session. Used for rapi_sender (). More...

int	session_id_
	session id for the session. More...

ACE_INET_Addr	dest_addr_
	Destination address for this session. More...

ACE_INET_Addr *	src_addr_
	Source address for this session. More...

ACE_Protocol_ID	protocol_id_
	Is this a TCP or a UDP session. More...

ACE_QoS	qos_
	QoS for this session. More...

ACE_End_Point_Type	flags_
	Specifies if this is a sending/receiving/both session. More...

RSVP_Event_Type	rsvp_event_type_

Detailed Description

A GQoS session object.

This class is a GQoS (Generic QoS, an implementation of RSVP on Win2K) implementation of the ACE_QoS_Session interface.

Constructor & Destructor Documentation

ACE_GQoS_Session::~ACE_GQoS_Session ( void )

inline

Default destructor.

ACE_GQoS_Session::ACE_GQoS_Session ( void )

private

Default constructor. Constructor is defined private so that only the friend factory can instantiate this class.

Member Function Documentation

int ACE_GQoS_Session::close ( void )

virtual

Close the GQoS Session.

Implements ACE_QoS_Session.

ACE_INET_Addr ACE_GQoS_Session::dest_addr ( void ) const

inlinevirtual

Get the destination address for this GQoS session.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::dest_addr ( const ACE_INET_Addr & dest_addr )

inlinevirtual

Set the destination address for this GQoS session.

Implements ACE_QoS_Session.

ACE_QoS_Session::ACE_End_Point_Type ACE_GQoS_Session::flags ( void ) const

inlinevirtual

Get/Set methods for the flags_.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::flags ( const ACE_End_Point_Type flags )

inlinevirtual

Implements ACE_QoS_Session.

int ACE_GQoS_Session::open	(	ACE_INET_Addr	dest_addr,
		ACE_Protocol_ID	protocol_id
	)

virtual

Open a GQoS session [dest IP, dest port, Protocol ID].

Implements ACE_QoS_Session.

ACE_QoS ACE_GQoS_Session::qos ( void ) const

inlinevirtual

Returns the QoS for this GQoS session.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::qos	(	ACE_SOCK *	socket,
		ACE_QoS_Manager *	qos_manager,
		const ACE_QoS &	ace_qos
	)

virtual

Set QoS for this GQoS session. The socket parameter is used to confirm if this QoS session was subscribed to by the socket.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::qos ( const ACE_QoS & ace_qos )

inlinevirtual

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implements ACE_QoS_Session.

void ACE_GQoS_Session::rsvp_event_type ( ACE_QoS_Session::RSVP_Event_Type event_type )

virtual

Implements ACE_QoS_Session.

ACE_QoS_Session::RSVP_Event_Type ACE_GQoS_Session::rsvp_event_type ( void )

virtual

Set the RAPI event that last occured.

Implements ACE_QoS_Session.

ACE_HANDLE ACE_GQoS_Session::rsvp_events_handle ( void )

inlinevirtual

Get the file descriptor of the underlying socket.

Implements ACE_QoS_Session.
