TAO_SHMIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the SHMIOP protocol. More...

#include <SHMIOP_Transport.h>

Inheritance diagram for TAO_SHMIOP_Transport:

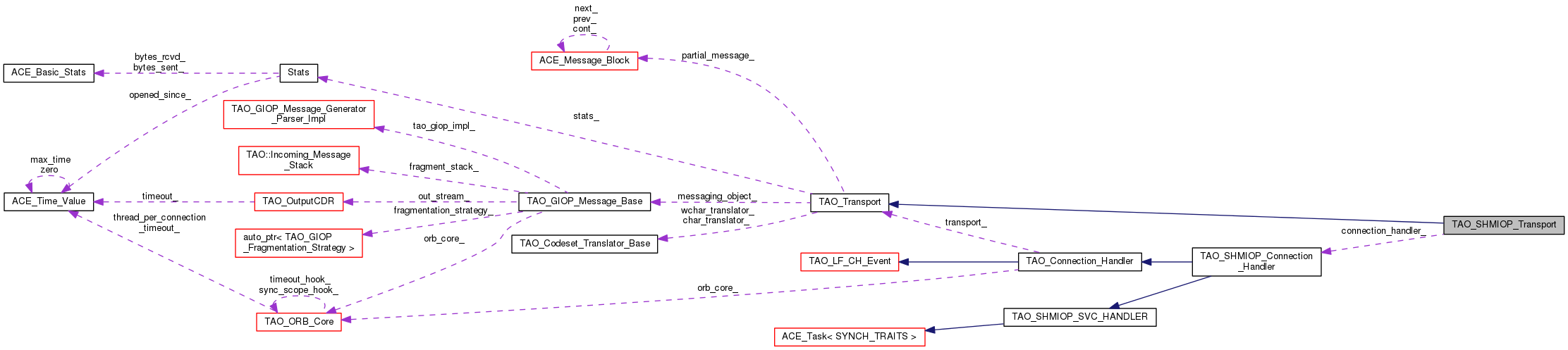

Collaboration diagram for TAO_SHMIOP_Transport:

Public Member Functions
	TAO_SHMIOP_Transport (TAO_SHMIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core)
	Constructor. More...
	~TAO_SHMIOP_Transport (void)
	Default destructor. More...
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, TAO_ServerRequest *request=0, TAO_Message_Semantics message_semantics=TAO_Message_Semantics(), ACE_Time_Value *max_time_wait=0)
Public Member Functions inherited from TAO_Transport
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
virtual void	set_bidir_context_info (TAO_Operation_Details &opdetails)

Protected Member Functions
Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual ACE_Event_Handler *	event_handler_i (void)
	Write the complete Message_Block chain to the connection. More...
virtual TAO_Connection_Handler *	connection_handler_i (void)
	Write the complete Message_Block chain to the connection. More...
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
	Write the complete Message_Block chain to the connection. More...
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Read len bytes from into buf. More...
virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time)
	Write the complete Message_Block chain to the connection. More...

Private Attributes
TAO_SHMIOP_Connection_Handler *	connection_handler_

Detailed Description

Specialization of the base TAO_Transport class to handle the SHMIOP protocol.

Constructor & Destructor Documentation

TAO_SHMIOP_Transport::TAO_SHMIOP_Transport	(	TAO_SHMIOP_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core
	)

Constructor.

TAO_SHMIOP_Transport::~TAO_SHMIOP_Transport

(

void

)

Default destructor.

Member Function Documentation

TAO_Connection_Handler * TAO_SHMIOP_Transport::connection_handler_i ( void  )

protectedvirtual

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

ACE_Event_Handler * TAO_SHMIOP_Transport::event_handler_i ( void  )

protectedvirtual

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_SHMIOP_Transport::handle_input ( TAO_Resume_Handle &  rh, ACE_Time_Value *  max_wait_time  )

protectedvirtual

Write the complete Message_Block chain to the connection.

ssize_t TAO_SHMIOP_Transport::recv ( char *  buf, size_t  len, const ACE_Time_Value *  s = 0  )

protectedvirtual

Read len bytes from into buf.

Implements TAO_Transport.

ssize_t TAO_SHMIOP_Transport::send ( iovec *  iov, int  iovcnt, size_t &  bytes_transferred, const ACE_Time_Value *  timeout = 0  )

protectedvirtual

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_SHMIOP_Transport::send_message ( TAO_OutputCDR &  stream, TAO_Stub *  stub = 0, TAO_ServerRequest *  request = 0, TAO_Message_Semantics  message_semantics = TAO_Message_Semantics (), ACE_Time_Value *  max_time_wait = 0  )

virtual

Implements TAO_Transport.

int TAO_SHMIOP_Transport::send_request ( TAO_Stub *  stub, TAO_ORB_Core *  orb_core, TAO_OutputCDR &  stream, TAO_Message_Semantics  message_semantics, ACE_Time_Value *  max_wait_time  )

virtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

Member Data Documentation

TAO_SHMIOP_Connection_Handler* TAO_SHMIOP_Transport::connection_handler_

private

The connection service handler used for accessing lower layer communication protocols.

---

The documentation for this class was generated from the following files:

• SHMIOP_Transport.h
• SHMIOP_Transport.cpp
