ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY > Class Template Reference

Provides a simple implementation of timers. More...

#include <Timer_List_T.h>

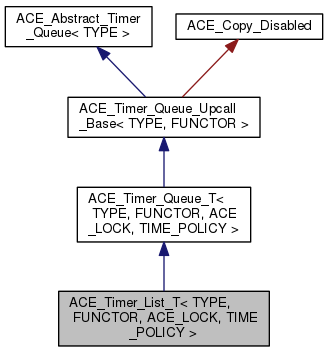

Inheritance diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:

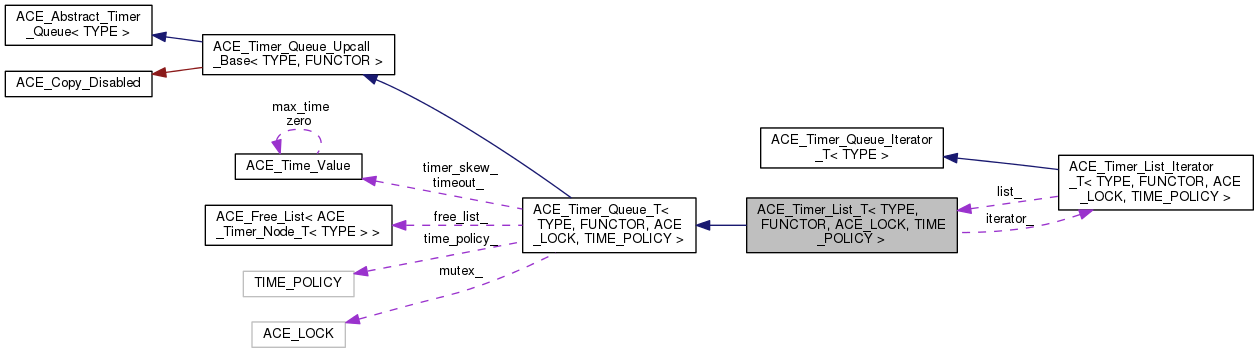

Collaboration diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >:

Public Types
typedef ACE_Timer_List_Iterator_T < TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >	Iterator
	Type of iterator. More...
typedef ACE_Timer_Node_T< TYPE >	Node
typedef ACE_Timer_Queue_T < TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >	Base_Timer_Queue
	Type inherited from. More...
typedef ACE_Free_List< Node >	FreeList
Public Types inherited from ACE_Abstract_Timer_Queue< TYPE >
typedef ACE_Timer_Queue_Iterator_T < TYPE >	ITERATOR
	Type of Iterator. More...

Public Member Functions
	ACE_Timer_List_T (FUNCTOR *upcall_functor=0, FreeList *freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())
virtual	~ACE_Timer_List_T (void)
	Destructor. More...
virtual bool	is_empty (void) const
	True if queue is empty, else false. More...
virtual const ACE_Time_Value &	earliest_time (void) const
virtual int	reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int	cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int	close (void)
virtual ACE_Timer_Queue_Iterator_T < TYPE > &	iter (void)
	Returns a pointer to this ACE_Timer_Queue's iterator. More...
virtual ACE_Timer_Node_T< TYPE > *	remove_first (void)
	Removes the earliest node from the queue and returns it. More...
virtual void	dump (void) const
	Dump the state of an object. More...
virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)
virtual ACE_Timer_Node_T< TYPE > *	get_first (void)
	Reads the earliest node from the queue and returns it. More...
Public Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
	ACE_Timer_Queue_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())
virtual	~ACE_Timer_Queue_T (void)
virtual long	schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int	dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
virtual void	gettimeofday (ACE_Time_Value(*gettimeofday)(void))
ACE_Time_Value	gettimeofday_static ()
void	set_time_policy (TIME_POLICY const &time_policy)
void	timer_skew (const ACE_Time_Value &skew)
	Set the timer skew for the Timer_Queue. More...
const ACE_Time_Value &	timer_skew (void) const
	Get the timer skew for the Timer_Queue. More...
ACE_LOCK &	mutex (void)
	Synchronization variable used by the queue. More...
virtual void	return_node (ACE_Timer_Node_T< TYPE > *)
void	preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
	This method will call the preinvoke() on <functor>. More...
void	upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
	This method will call the timeout() on <functor>. More...
void	postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
	This method will call the postinvoke() on <functor>. More...
virtual int	expire (const ACE_Time_Value &current_time)
virtual int	expire (void)
virtual int	expire_single (ACE_Command_Base &pre_dispatch_command)
virtual ACE_Time_Value	gettimeofday (void)
virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value *max)
virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value *max, ACE_Time_Value *the_timeout)
virtual ACE_Time_Value	current_time ()
Public Member Functions inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
	ACE_Timer_Queue_Upcall_Base (FUNCTOR *upcall_functor=0)
virtual	~ACE_Timer_Queue_Upcall_Base (void)
	Destructor. More...
FUNCTOR &	upcall_functor (void)
	Accessor to the upcall functor. More...
Public Member Functions inherited from ACE_Abstract_Timer_Queue< TYPE >
virtual	~ACE_Abstract_Timer_Queue (void)=0
	Destructor. More...

Private Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
void	schedule_i (ACE_Timer_Node_T< TYPE > *n, const ACE_Time_Value &exp)
	The shared scheduling functionality between schedule() and reschedule() More...
ACE_Timer_Node_T< TYPE > *	find_node (long timer_id) const
void	cancel_i (ACE_Timer_Node_T< TYPE > *n)
	Shared subset of the two cancel() methods. More...
void	unlink (ACE_Timer_Node_T< TYPE > *n)
ACE_Timer_Node_T< TYPE > *	get_first_i (void) const
	ACE_Timer_List_T (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)
void	operator= (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)

Private Attributes
ACE_Timer_Node_T< TYPE > *	head_
	Pointer to linked list of <ACE_Timer_Handles>. More...
Iterator *	iterator_
	Iterator used to expire timers. More...
long	id_counter_

Friends
class	ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
	Iterator is a friend. More...

Additional Inherited Members
Protected Member Functions inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
virtual ACE_Timer_Node_T< TYPE > *	alloc_node (void)
	Factory method that allocates a new node. More...
virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node. More...
virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info () More...
void	recompute_next_abs_interval_time (ACE_Timer_Node_T< TYPE > *expired, const ACE_Time_Value &cur_time)
	Recompute when the next time is that this interval timer should fire. More...
Protected Attributes inherited from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >
ACE_LOCK	mutex_
ACE_Free_List < ACE_Timer_Node_T< TYPE > > *	free_list_
	Class that implements a free list. More...
TIME_POLICY	time_policy_
	The policy to return the current time of day. More...
bool const	delete_free_list_
	Flag to delete only if the class created the <free_list_> More...
Protected Attributes inherited from ACE_Timer_Queue_Upcall_Base< TYPE, FUNCTOR >
FUNCTOR *	upcall_functor_
	Upcall functor. More...
bool const	delete_upcall_functor_
	To delete or not to delete is the question? More...

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, typename TIME_POLICY>
class ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

Provides a simple implementation of timers.

This implementation uses a linked list of absolute times. Therefore, in the average case, scheduling and canceling timers is O(N) (where N is the total number of timers) and expiring timers is O(K) (where K is the total number of timers that are < the current time of day). More clever implementations could use a delta-list, a heap, or timing wheels, etc. For instance, ACE_Timer_Heap is a subclass of ACE_Timer_List that implements a heap-based callout queue. For most applications, the ACE_Timer_Heap will perform substantially faster than the ACE_Timer_List.

Member Typedef Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Base_Timer_Queue

Type inherited from.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

typedef ACE_Free_List<Node> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::FreeList

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

typedef ACE_Timer_List_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Iterator

Type of iterator.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

typedef ACE_Timer_Node_T<TYPE> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::Node

Constructor & Destructor Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_List_T	(	FUNCTOR *	upcall_functor = 0,
		FreeList *	freelist = 0,
		TIME_POLICY const &	time_policy = TIME_POLICY()
	)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the list. If upcall_functor is 0, a default FUNCTOR will be created. freelist is the freelist of timer nodes. If 0, then a default freelist will be created.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::~ACE_Timer_List_T ( void  )

virtual

Destructor.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::ACE_Timer_List_T ( const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &  )

private

Member Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel ( const TYPE &  type, int  dont_call_handle_close = 1  )

virtual

Cancel all timers associated with type. If dont_call_handle_close is 0 then the functor will be invoked. Returns the number of timers cancelled.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel ( long  timer_id, const void **  act = 0, int  dont_call_handle_close = 1  )

virtual

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::cancel_i ( ACE_Timer_Node_T< TYPE > *  n )

private

Shared subset of the two cancel() methods.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::close ( void  )

virtual

Destroy timer queue. Cancels all timers.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::dump ( void  ) const

virtual

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

const ACE_Time_Value & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::earliest_time ( void  ) const

virtual

Returns the time of the earlier node in the ACE_Timer_List. Must be called on a non-empty queue.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::find_node ( long  timer_id ) const

private

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::get_first ( void  )

virtual

Reads the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::get_first_i ( void  ) const

private

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

bool ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::is_empty ( void  ) const

virtual

True if queue is empty, else false.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Queue_Iterator_T< TYPE > & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iter ( void  )

virtual

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::operator= ( const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &  )

private

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::remove_first ( void  )

virtual

Removes the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reschedule ( ACE_Timer_Node_T< TYPE > *  n )

virtual

Reschedule an "interval" ACE_Timer_Node_T. This should be private but for now it needs to be public for <ACE_Timer_Hash_T>

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::reset_interval ( long  timer_id, const ACE_Time_Value &  interval  )

virtual

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::schedule_i ( const TYPE &  type, const void *  act, const ACE_Time_Value &  future_time, const ACE_Time_Value &  interval  )

privatevirtual

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a timer_id that uniquely identifies the the type entry in an internal list. This timer_id can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::schedule_i ( ACE_Timer_Node_T< TYPE > *  n, const ACE_Time_Value &  exp  )

private

The shared scheduling functionality between schedule() and reschedule()

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::unlink ( ACE_Timer_Node_T< TYPE > *  n )

private

Friends And Related Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

friend class ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >

friend

Iterator is a friend.

Member Data Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

ACE_Timer_Node_T<TYPE>* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::head_

private

Pointer to linked list of <ACE_Timer_Handles>.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::id_counter_

private

Keeps track of the timer id that uniquely identifies each timer. This id can be used to cancel a timer via the <cancel(long)> method.

template<class TYPE , class FUNCTOR , class ACE_LOCK , typename TIME_POLICY >

Iterator* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >::iterator_

private

Iterator used to expire timers.

---

The documentation for this class was generated from the following files:

• Timer_List_T.h
• Timer_List_T.cpp
