#include <UIPMC_Endpoint.h>

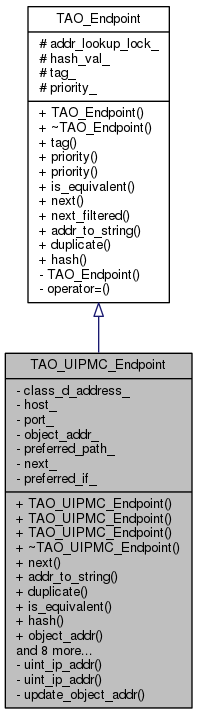

Inheritance diagram for TAO_UIPMC_Endpoint:

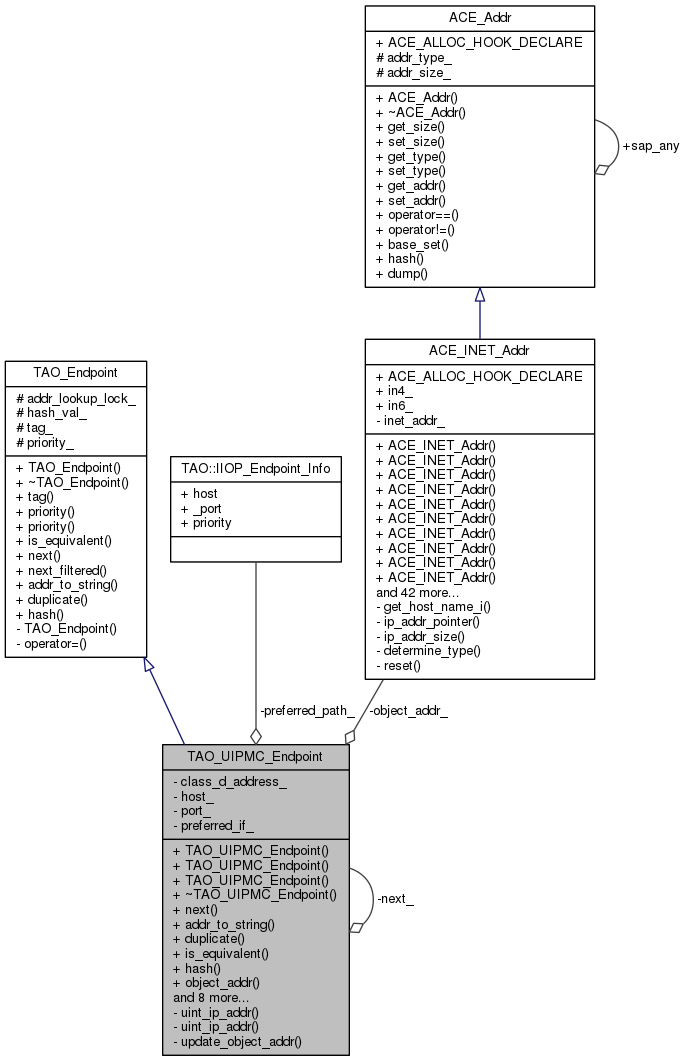

Collaboration diagram for TAO_UIPMC_Endpoint:

Public Member Functions
	TAO_UIPMC_Endpoint (void)
	Default constructor. More...

	TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
	Constructor. More...

	TAO_UIPMC_Endpoint (const CORBA::Octet class_d_address[4], CORBA::UShort port)
	Constructor. @ Frank - deprecate this. More...

	~TAO_UIPMC_Endpoint (void)
	Destructor. More...

virtual TAO_Endpoint *	next (void)

virtual int	addr_to_string (char *buffer, size_t length)

virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of this TAO_Endpoint. More...

CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)

CORBA::ULong	hash (void)
	Return a hash value for this object. More...

const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the object_addr . More...

void	object_addr (const ACE_INET_Addr &addr)
	Set the IP multicast address and port. More...

const char *	host (void) const

CORBA::UShort	port (void) const
	Return the port number. More...

CORBA::UShort	port (CORBA::UShort p)
	Set the port number. More...

bool	is_preferred_network (void) const
	Do we have a preferred local network interface set for this target? More...

const char *	preferred_network (void) const
	Return the preferred network interface if any. More...

CORBA::ULong	preferred_interfaces (TAO_ORB_Core *oc)

const char *	preferred_if (void) const
	Acessor for the preferred network interface name if set. More...

Public Member Functions inherited from TAO_Endpoint
	TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)

virtual	~TAO_Endpoint (void)

CORBA::ULong	tag (void) const

void	priority (CORBA::Short priority)

CORBA::Short	priority (void) const

virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core , TAO_Endpoint root)

Private Member Functions
ACE_UINT32	uint_ip_addr (void) const
	Helper methods for getting and setting the IP address. @ Vadym - deprecate these. More...

void	uint_ip_addr (ACE_UINT32 ip_addr)

void	update_object_addr (void)
	Helper method to update the cached object address. @ Vadym - deprecate this. More...

Private Attributes
CORBA::Octet	class_d_address_ [4]
	IP Multicast address. @ Frank - deprecate this. More...

CORBA::String_var	host_
	String representing the host address. More...

CORBA::UShort	port_
	UDP port number. More...

ACE_INET_Addr	object_addr_

TAO::IIOP_Endpoint_Info	preferred_path_
	Preferred path for routing this endpoint. More...

TAO_UIPMC_Endpoint *	next_

CORBA::String_var	preferred_if_
	Preferred interface name (if set) More...

Additional Inherited Members
Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX	addr_lookup_lock_

CORBA::ULong	hash_val_

CORBA::ULong const	tag_

CORBA::Short	priority_

Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( void )

Default constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( const ACE_INET_Addr & addr )

Constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint	(	const CORBA::Octet	class_d_address[4],
		CORBA::UShort	port
	)

Constructor. @ Frank - deprecate this.

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint ( void )

Destructor.

Member Function Documentation

int TAO_UIPMC_Endpoint::addr_to_string	(	char *	buffer,
		size_t	length
	)

virtual

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate ( void )

virtual

Makes a copy of this TAO_Endpoint.

Implements TAO_Endpoint.

CORBA::ULong TAO_UIPMC_Endpoint::hash ( void )

virtual

Return a hash value for this object.

Implements TAO_Endpoint.

const char * TAO_UIPMC_Endpoint::host ( void ) const

Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint )

virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

bool TAO_UIPMC_Endpoint::is_preferred_network ( void ) const

Do we have a preferred local network interface set for this target?

TAO_Endpoint * TAO_UIPMC_Endpoint::next ( void )

virtual

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr ( void ) const

Return a reference to the object_addr .

void TAO_UIPMC_Endpoint::object_addr ( const ACE_INET_Addr & addr )

Set the IP multicast address and port.

CORBA::UShort TAO_UIPMC_Endpoint::port ( void ) const

Return the port number.

CORBA::UShort TAO_UIPMC_Endpoint::port ( CORBA::UShort p )

Set the port number.

const char * TAO_UIPMC_Endpoint::preferred_if ( void ) const

Acessor for the preferred network interface name if set.

CORBA::ULong TAO_UIPMC_Endpoint::preferred_interfaces ( TAO_ORB_Core * oc )

Transform this endpoint into (potentially) a chain of endpoints in preferrence order of specific local interface bind address (if the ORB is thus configured)

const char * TAO_UIPMC_Endpoint::preferred_network ( void ) const

Return the preferred network interface if any.

ACE_UINT32 TAO_UIPMC_Endpoint::uint_ip_addr ( void ) const

private

Helper methods for getting and setting the IP address. @ Vadym - deprecate these.

void TAO_UIPMC_Endpoint::uint_ip_addr ( ACE_UINT32 ip_addr )

private

void TAO_UIPMC_Endpoint::update_object_addr ( void )

private

Helper method to update the cached object address. @ Vadym - deprecate this.

Member Data Documentation

CORBA::Octet TAO_UIPMC_Endpoint::class_d_address_[4]

private

IP Multicast address. @ Frank - deprecate this.

CORBA::String_var TAO_UIPMC_Endpoint::host_

private

String representing the host address.

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_

private

UIPMC Endpoints can be strung into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_

private

Cached instance of ACE_INET_Addr for use in making invocations, etc.

CORBA::UShort TAO_UIPMC_Endpoint::port_

private

UDP port number.

CORBA::String_var TAO_UIPMC_Endpoint::preferred_if_

private

Preferred interface name (if set)

TAO::IIOP_Endpoint_Info TAO_UIPMC_Endpoint::preferred_path_

private

Preferred path for routing this endpoint.

The documentation for this class was generated from the following files:
