TAO_CEC_MT_Dispatching Class Reference

Dispatching strategy that minimizes mt inversion. More...

#include <CEC_MT_Dispatching.h>

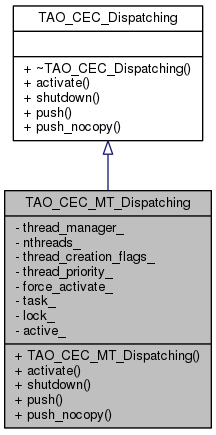

Inheritance diagram for TAO_CEC_MT_Dispatching:

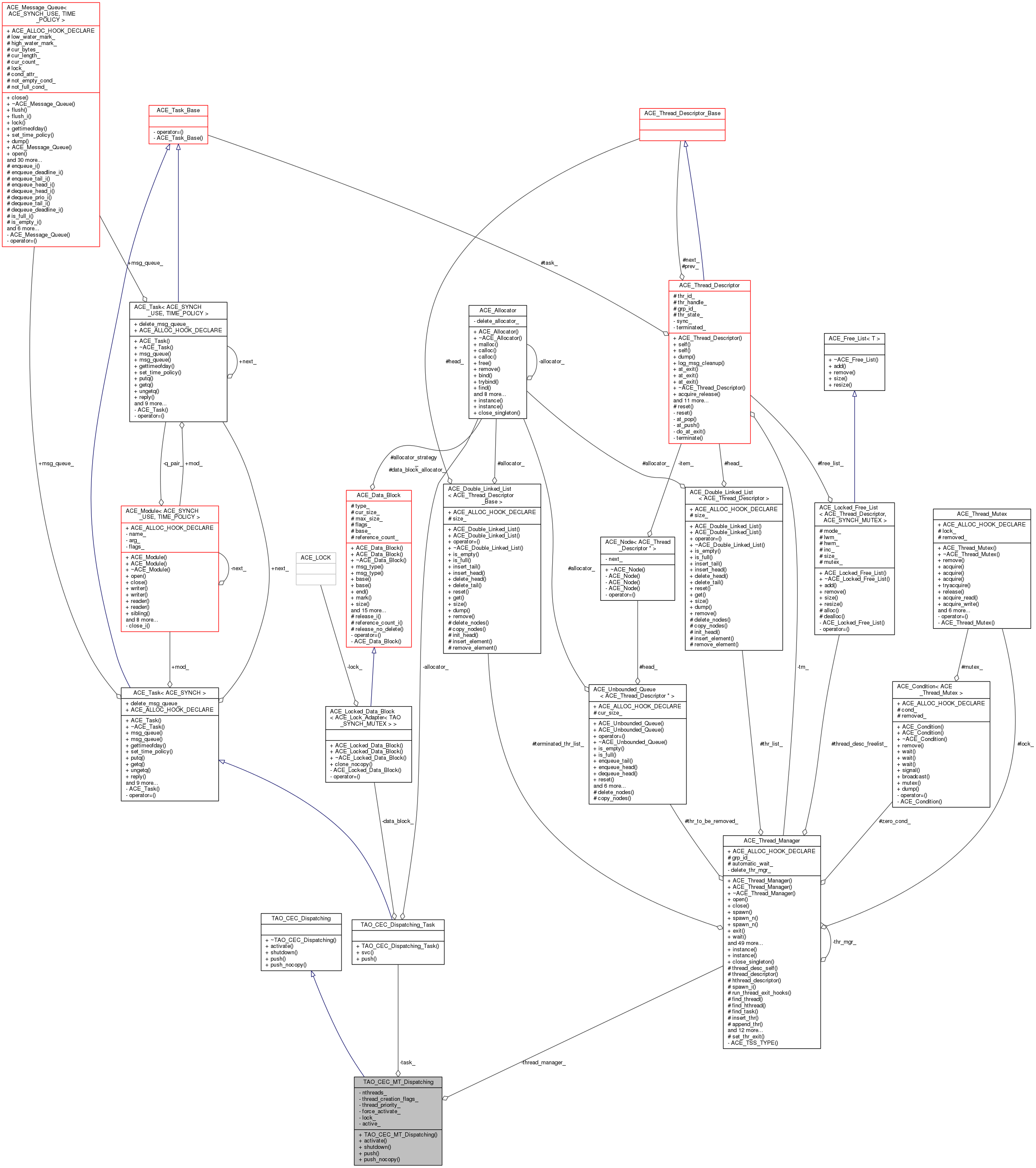

Collaboration diagram for TAO_CEC_MT_Dispatching:

Public Member Functions
	TAO_CEC_MT_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate)
virtual void	activate (void)
virtual void	shutdown (void)
virtual void	push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event)
	The consumer represented by <proxy> should receive <event>. More...
virtual void	push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event)
Public Member Functions inherited from TAO_CEC_Dispatching
virtual	~TAO_CEC_Dispatching (void)
	destructor... More...

Private Attributes
ACE_Thread_Manager	thread_manager_
	Use our own thread manager. More...
int	nthreads_
	The number of active tasks. More...
int	thread_creation_flags_
int	thread_priority_
	The priority of the dispatching threads. More...
int	force_activate_
TAO_CEC_Dispatching_Task	task_
	The dispatching task. More...
TAO_SYNCH_MUTEX	lock_
	Synchronize access to internal data. More...
int	active_
	Are the threads running? More...

Detailed Description

Dispatching strategy that minimizes mt inversion.

This strategy uses a single queue, serviced by one or more threads. It's main purpose is to decouple the suppliers from the client execution time, specially in the collocated case.

Constructor & Destructor Documentation

TAO_CEC_MT_Dispatching::TAO_CEC_MT_Dispatching	(	int	nthreads,
		int	thread_creation_flags,
		int	thread_priority,
		int	force_activate
	)

Constructor It will create <nthreads> servicing threads...

Member Function Documentation

void TAO_CEC_MT_Dispatching::activate ( void  )

virtual

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push ( TAO_CEC_ProxyPushSupplier *  proxy, const CORBA::Any &  event  )

virtual

The consumer represented by <proxy> should receive <event>.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push_nocopy ( TAO_CEC_ProxyPushSupplier *  proxy, CORBA::Any &  event  )

virtual

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::shutdown ( void  )

virtual

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Dispatching.

Member Data Documentation

int TAO_CEC_MT_Dispatching::active_

private

Are the threads running?

int TAO_CEC_MT_Dispatching::force_activate_

private

If activation at the requested priority fails then we fallback on the defaults for thread activation.

TAO_SYNCH_MUTEX TAO_CEC_MT_Dispatching::lock_

private

Synchronize access to internal data.

int TAO_CEC_MT_Dispatching::nthreads_

private

The number of active tasks.

TAO_CEC_Dispatching_Task TAO_CEC_MT_Dispatching::task_

private

The dispatching task.

int TAO_CEC_MT_Dispatching::thread_creation_flags_

private

The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

ACE_Thread_Manager TAO_CEC_MT_Dispatching::thread_manager_

private

Use our own thread manager.

int TAO_CEC_MT_Dispatching::thread_priority_

private

The priority of the dispatching threads.

---

The documentation for this class was generated from the following files:

• CEC_MT_Dispatching.h
• CEC_MT_Dispatching.cpp
