TAO_UIPMC_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <UIPMC_Connection_Handler.h>

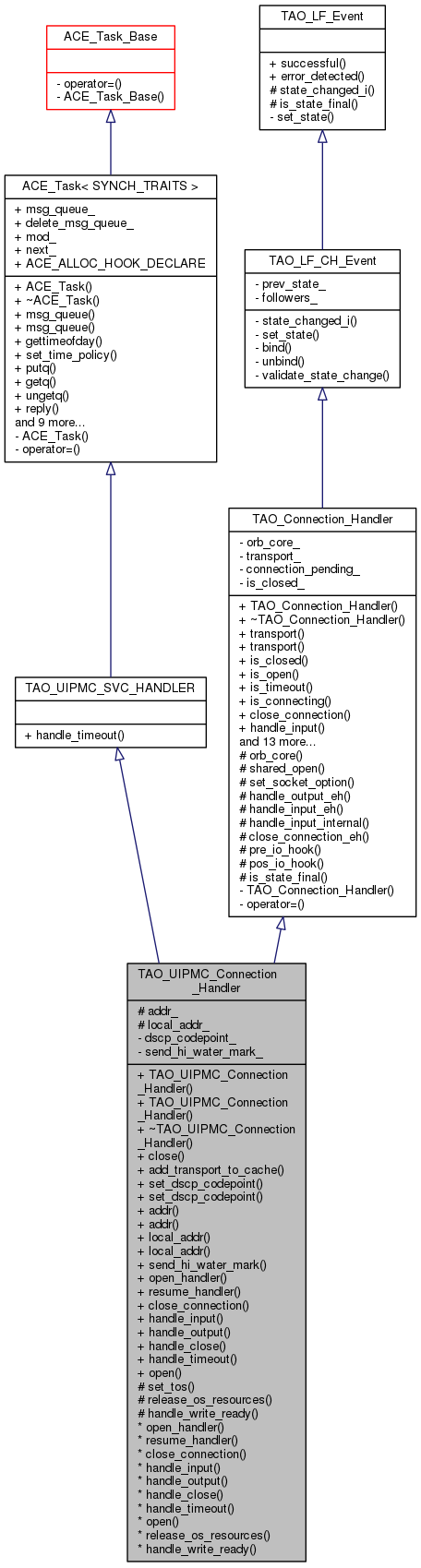

Inheritance diagram for TAO_UIPMC_Connection_Handler:
Inheritance graph

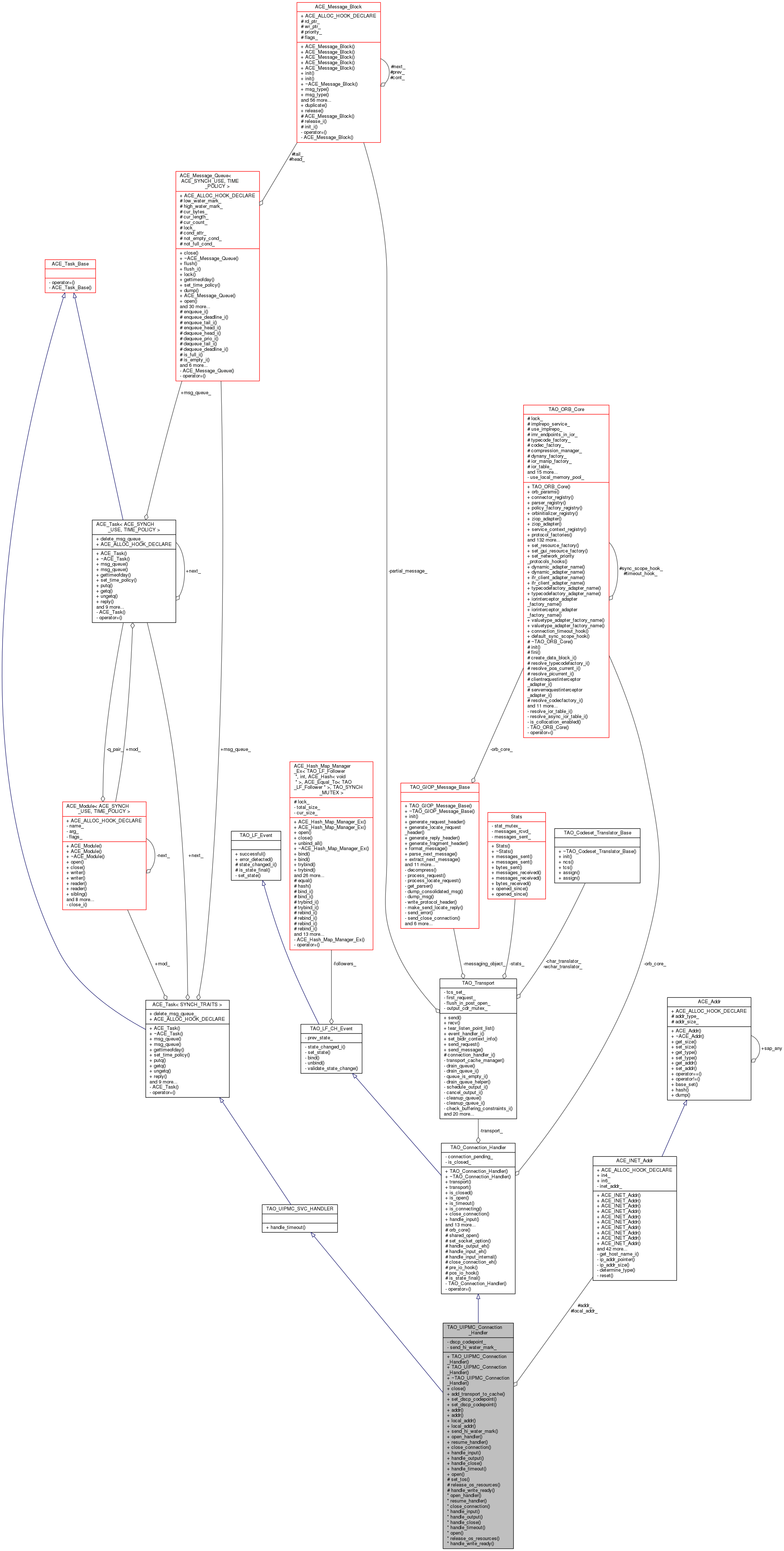

Collaboration diagram for TAO_UIPMC_Connection_Handler:
Collaboration graph

Public Member Functions

 TAO_UIPMC_Connection_Handler (ACE_Thread_Manager *t=0)

 TAO_UIPMC_Connection_Handler (TAO_ORB_Core *orb_core)

 ~TAO_UIPMC_Connection_Handler (void)
 Destructor. More...

int close (u_long=0)

int add_transport_to_cache (void)
 Add ourselves to Cache. More...

int set_dscp_codepoint (CORBA::Boolean set_network_priority)
 Set Diff-Serv codepoint on outgoing packets. More...

int set_dscp_codepoint (CORBA::Long dscp_codepoint)

const ACE_INET_Addr & addr (void) const

void addr (const ACE_INET_Addr &addr)

const ACE_INET_Addr & local_addr (void) const

void local_addr (const ACE_INET_Addr &addr)

u_long send_hi_water_mark (void) const

Connection Handler overloads
virtual int open_handler (void *v)

Event Handler overloads
virtual int resume_handler (void)

virtual int close_connection (void)

virtual int handle_input (ACE_HANDLE)

virtual int handle_output (ACE_HANDLE)

virtual int handle_close (ACE_HANDLE, ACE_Reactor_Mask)

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int open (void *)

- Public Member Functions inherited from ACE_Task< SYNCH_TRAITS >
 ACE_Task (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *mq=0)

virtual ~ACE_Task (void)

ACE_Message_Queue
< ACE_SYNCH_USE, TIME_POLICY > * 		msg_queue (void)

void msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Time_Value_T< TIME_POLICY > gettimeofday (void) const

void set_time_policy (TIME_POLICY const &time_policy)

int putq (ACE_Message_Block *, ACE_Time_Value *timeout=0)

int getq (ACE_Message_Block *&mb, ACE_Time_Value *timeout=0)

int ungetq (ACE_Message_Block *, ACE_Time_Value *timeout=0)

int reply (ACE_Message_Block *mb, ACE_Time_Value *tv=0)

int put_next (ACE_Message_Block *msg, ACE_Time_Value *timeout=0)

const ACE_TCHAR * name (void) const

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > * 		next (void)

void next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > * 		sibling (void)

ACE_Module< ACE_SYNCH_USE,
TIME_POLICY > * 		module (void) const

int flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)

void dump (void) const

- Public Member Functions inherited from TAO_Connection_Handler
 TAO_Connection_Handler (TAO_ORB_Core *orb_core)

virtual ~TAO_Connection_Handler (void)

TAO_Transport * transport (void)

void transport (TAO_Transport *transport)

bool is_closed (void) const

bool is_open (void) const

bool is_timeout (void) const

bool is_connecting (void) const

int svc_i (void)

virtual int close_handler (u_long flags=0)

void connection_pending (void)

void cancel_pending_connection (void)

 TAO_LF_CH_Event (void)

virtual ~TAO_LF_CH_Event (void)

int successful (void) const

int error_detected (void) const


Protected Member Functions

int set_tos (int tos)

TAO_Connection Handler overloads
virtual int release_os_resources (void)

virtual int handle_write_ready (const ACE_Time_Value *timeout)

- Protected Member Functions inherited from TAO_Connection_Handler
TAO_ORB_Core * orb_core (void)

int shared_open (void)

int set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)

int handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)

int handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)

int close_connection_eh (ACE_Event_Handler *eh)

virtual void pre_io_hook (int &return_value)

virtual void pos_io_hook (int &return_value)

virtual int is_state_final (void)


Protected Attributes

ACE_INET_Addr addr_

ACE_INET_Addr local_addr_


Private Attributes

int dscp_codepoint_
 Stores the type of service value. More...

u_long send_hi_water_mark_


Additional Inherited Members

- Public Attributes inherited from ACE_Task< SYNCH_TRAITS >
ACE_Message_Queue
< ACE_SYNCH_USE, TIME_POLICY > * 		msg_queue_

bool delete_msg_queue_

ACE_Module< ACE_SYNCH_USE,
TIME_POLICY > * 		mod_

ACE_Task< ACE_SYNCH_USE,
TIME_POLICY > * 		next_

 ACE_ALLOC_HOOK_DECLARE


Detailed Description

Handles requests on a single connection.

Since MIOP is asymmetric then this Connection handler is for only use in the Connector.

Constructor & Destructor Documentation

TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler ( ACE_Thread_Manager *  t = 0)
TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler ( TAO_ORB_Core *  orb_core)

Constructor. arg parameter is used by the Acceptor to pass the protocol configuration properties for this connection.

TAO_UIPMC_Connection_Handler::~TAO_UIPMC_Connection_Handler ( void  )

Destructor.

Member Function Documentation

int TAO_UIPMC_Connection_Handler::add_transport_to_cache ( void  )

Add ourselves to Cache.

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::addr ( void  ) const
void TAO_UIPMC_Connection_Handler::addr ( const ACE_INET_Addr &  addr)
int TAO_UIPMC_Connection_Handler::close ( u_long  flags = 0)

Close called by the Acceptor or Connector when connection establishment fails.

int TAO_UIPMC_Connection_Handler::close_connection ( void  )
virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::handle_close ( ACE_HANDLE  ,
ACE_Reactor_Mask
)
virtual
int TAO_UIPMC_Connection_Handler::handle_input ( ACE_HANDLE  h)
virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::handle_output ( ACE_HANDLE  handle)
virtual
int TAO_UIPMC_Connection_Handler::handle_timeout ( const ACE_Time_Value &  current_time,
const void *  act = 0
)
virtual

Reimplemented from ACE_Svc_Handler< class, class >.

int TAO_UIPMC_Connection_Handler::handle_write_ready ( const ACE_Time_Value *  timeout)
protectedvirtual

Reimplemented from TAO_Connection_Handler.

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::local_addr ( void  ) const
void TAO_UIPMC_Connection_Handler::local_addr ( const ACE_INET_Addr &  addr)
int TAO_UIPMC_Connection_Handler::open ( void *  )
virtual
int TAO_UIPMC_Connection_Handler::open_handler ( void *  v)
virtual

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::release_os_resources ( void  )
protectedvirtual

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::resume_handler ( void  )
virtual
u_long TAO_UIPMC_Connection_Handler::send_hi_water_mark ( void  ) const
int TAO_UIPMC_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean  set_network_priority)
virtual

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::set_dscp_codepoint ( CORBA::Long  dscp_codepoint)
virtual

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::set_tos ( int  tos)
protected

Member Data Documentation

ACE_INET_Addr TAO_UIPMC_Connection_Handler::addr_
protected
int TAO_UIPMC_Connection_Handler::dscp_codepoint_
private

Stores the type of service value.

ACE_INET_Addr TAO_UIPMC_Connection_Handler::local_addr_
protected
u_long TAO_UIPMC_Connection_Handler::send_hi_water_mark_
private

How much data can be sent without delays. It defaults to the size of the socket buffer.

The documentation for this class was generated from the following files:
