#include <UIPMC_Acceptor.h>

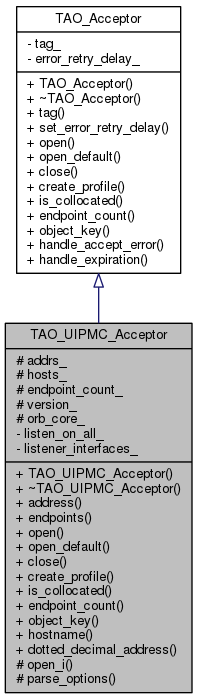

Inheritance diagram for TAO_UIPMC_Acceptor:

Collaboration diagram for TAO_UIPMC_Acceptor:

Public Member Functions
	TAO_UIPMC_Acceptor (bool listen_on_all_ifs, const char *listener_interfaces)
	Constructor. More...

	~TAO_UIPMC_Acceptor (void)
	Destructor. More...

const ACE_INET_Addr &	address (void) const

const ACE_INET_Addr *	endpoints (void)
	Returns the array of endpoints in this acceptor. More...

virtual int	open (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char address, const char options=0)

virtual int	open_default (TAO_ORB_Core orb_core, ACE_Reactor reactor, int version_major, int version_minor, const char *options=0)

virtual int	close (void)

virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

virtual int	is_collocated (const TAO_Endpoint *endpoint)

virtual CORBA::ULong	endpoint_count (void)

virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)

int	hostname (TAO_ORB_Core orb_core, ACE_INET_Addr &addr, char &host, const char *specified_hostname=0)

int	dotted_decimal_address (ACE_INET_Addr &addr, char *&host)

Public Member Functions inherited from TAO_Acceptor
	TAO_Acceptor (CORBA::ULong tag)

virtual	~TAO_Acceptor (void)

CORBA::ULong	tag (void) const

void	set_error_retry_delay (time_t delay)

int	handle_accept_error (ACE_Event_Handler *base_acceptor)

int	handle_expiration (ACE_Event_Handler *base_acceptor)

Protected Member Functions
virtual int	open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)

virtual int	parse_options (const char *options)
	Parse protocol specific options. More...

Protected Attributes
ACE_INET_Addr *	addrs_

char **	hosts_

CORBA::ULong	endpoint_count_

TAO_GIOP_Message_Version	version_

TAO_ORB_Core *	orb_core_
	ORB Core. More...

Private Attributes
bool	listen_on_all_

ACE_CString	listener_interfaces_

Detailed Description

TAO_UIPMC_Acceptor.

The UIPMC-specific bridge class for the concrete acceptor.

Constructor & Destructor Documentation

TAO_UIPMC_Acceptor::TAO_UIPMC_Acceptor	(	bool	listen_on_all_ifs,
		const char *	listener_interfaces
	)

Constructor.

TAO_UIPMC_Acceptor::~TAO_UIPMC_Acceptor ( void )

Destructor.

Member Function Documentation

const ACE_INET_Addr & TAO_UIPMC_Acceptor::address ( void ) const

@ Helper method for the implementation repository, should go away

int TAO_UIPMC_Acceptor::close ( void )

virtual

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::create_profile	(	const TAO::ObjectKey &	object_key,
		TAO_MProfile &	mprofile,
		CORBA::Short	priority
	)

virtual

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::dotted_decimal_address	(	ACE_INET_Addr &	addr,
		char *&	host
	)

Set the host name for the given address using the dotted decimal format.

CORBA::ULong TAO_UIPMC_Acceptor::endpoint_count ( void )

virtual

Implements TAO_Acceptor.

const ACE_INET_Addr * TAO_UIPMC_Acceptor::endpoints ( void )

Returns the array of endpoints in this acceptor.

int TAO_UIPMC_Acceptor::hostname	(	TAO_ORB_Core *	orb_core,
		ACE_INET_Addr &	addr,
		char *&	host,
		const char *	specified_hostname = `0`
	)

Set the host name for the given addr. A hostname may be forced by using specified_hostname. This is useful if the given address corresponds to more than one hostname and the desired one cannot be determined in any other way.

int TAO_UIPMC_Acceptor::is_collocated ( const TAO_Endpoint * endpoint )

virtual

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::object_key	(	IOP::TaggedProfile &	profile,
		TAO::ObjectKey &	key
	)

virtual

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	address,
		const char *	options = `0`
	)

virtual

The TAO_Acceptor methods, check the documentation in Pluggable.h for details.

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open_default	(	TAO_ORB_Core *	orb_core,
		ACE_Reactor *	reactor,
		int	version_major,
		int	version_minor,
		const char *	options = `0`
	)

virtual

Implements TAO_Acceptor.

int TAO_UIPMC_Acceptor::open_i	(	const ACE_INET_Addr &	addr,
		ACE_Reactor *	reactor
	)

protectedvirtual

Implement the common part of the open*() methods. This method is virtual to allow a derived class implementation to be invoked instead.

int TAO_UIPMC_Acceptor::parse_options ( const char * options )

protectedvirtual

Parse protocol specific options.

Member Data Documentation

ACE_INET_Addr* TAO_UIPMC_Acceptor::addrs_

protected

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

CORBA::ULong TAO_UIPMC_Acceptor::endpoint_count_

protected

The number of host names cached in the hosts_ array (equivalent to the number of endpoints opened by this Acceptor).

char** TAO_UIPMC_Acceptor::hosts_

protected

Cache the information about the endpoints serviced by this acceptor. There may in fact be multiple hostnames for this endpoint. For example, if the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface.

bool TAO_UIPMC_Acceptor::listen_on_all_

private

ACE_CString TAO_UIPMC_Acceptor::listener_interfaces_

private

TAO_ORB_Core* TAO_UIPMC_Acceptor::orb_core_

protected

ORB Core.

TAO_GIOP_Message_Version TAO_UIPMC_Acceptor::version_

protected

The GIOP version for this endpoint @ Theoretically this shouldn't be here!! We need to look at a way to move this out

The documentation for this class was generated from the following files:
