#include <PG_Object_Group_Storable.h>

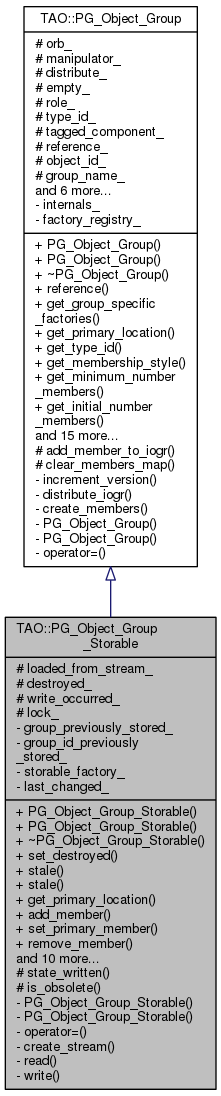

Inheritance diagram for TAO::PG_Object_Group_Storable:

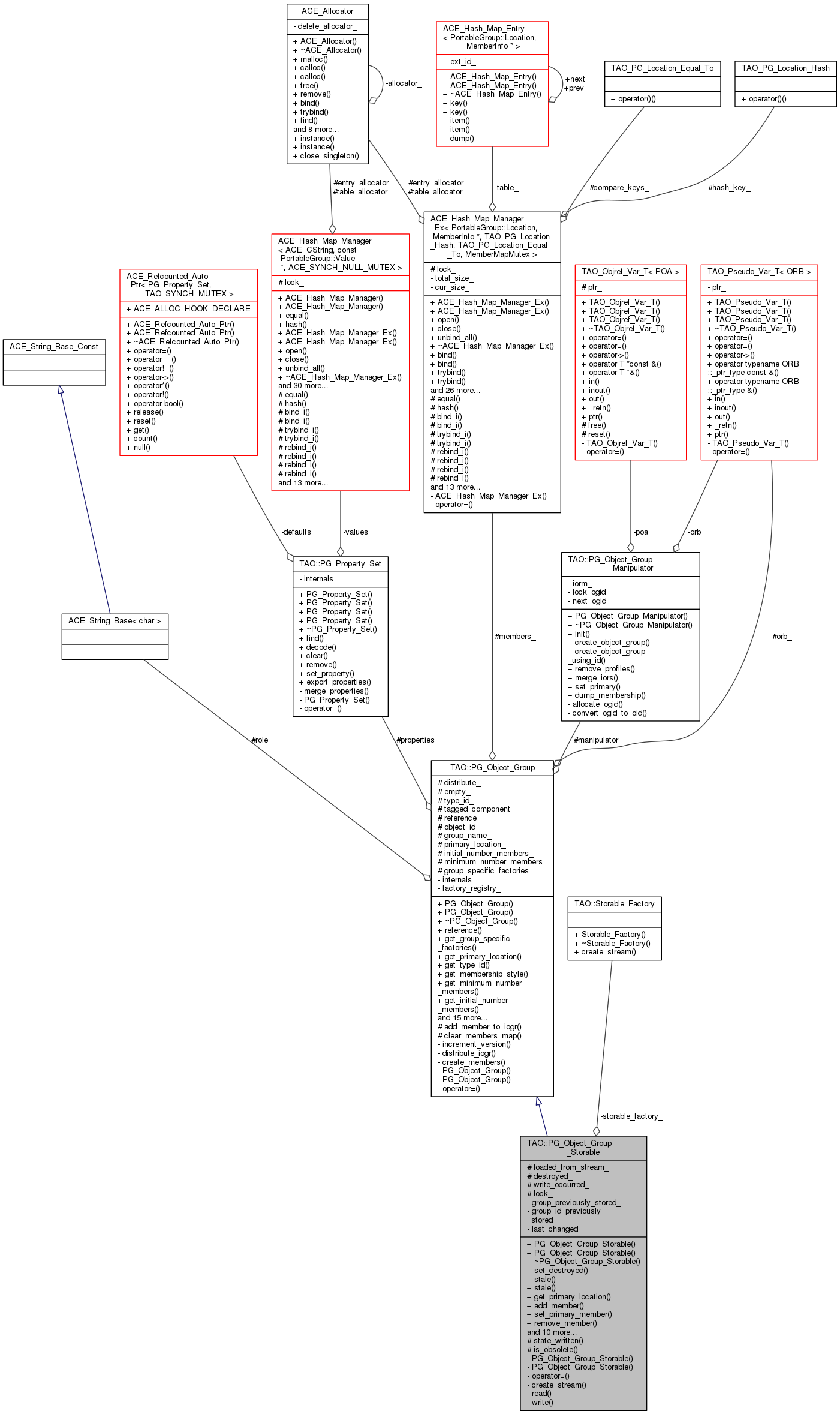

Collaboration diagram for TAO::PG_Object_Group_Storable:

Public Member Functions
	PG_Object_Group_Storable (CORBA::ORB_ptr orb, PortableGroup::FactoryRegistry_ptr factory_registry, TAO::PG_Object_Group_Manipulator &manipulator, CORBA::Object_ptr empty_group, const PortableGroup::TagGroupTaggedComponent &tagged_component, const char *type_id, const PortableGroup::Criteria &the_criteria, const TAO::PG_Property_Set_var &type_properties, TAO::Storable_Factory &storable_factory)

	PG_Object_Group_Storable (PortableGroup::ObjectGroupId group_id, CORBA::ORB_ptr orb, PortableGroup::FactoryRegistry_ptr factory_registry, TAO::PG_Object_Group_Manipulator &manipulator, TAO::Storable_Factory &storable_factory)

	~PG_Object_Group_Storable ()
	Destructor. More...

void	set_destroyed (bool destroyed)

virtual void	stale (bool is_stale)

virtual bool	stale ()

virtual const PortableGroup::Location &	get_primary_location ()

virtual void	add_member (const PortableGroup::Location &the_location, CORBA::Object_ptr member)

virtual int	set_primary_member (TAO_IOP::TAO_IOR_Property *prop, const PortableGroup::Location &the_location)

virtual void	remove_member (const PortableGroup::Location &the_location)

virtual void	create_member (const PortableGroup::Location &the_location, const char *type_id, const PortableGroup::Criteria &the_criteria)

virtual PortableGroup::Locations *	locations_of_members (void)

virtual CORBA::Object_ptr	get_member_reference (const PortableGroup::Location &the_location)

virtual void	initial_populate (void)

virtual void	minimum_populate (void)

virtual int	has_member_at (const PortableGroup::Location &location)

virtual void	distribute (int value)

virtual void	set_name (const char *group_name)

virtual const char *	get_name (void)

virtual PortableGroup::ObjectGroupId	get_object_group_id () const

Public Member Functions inherited from TAO::PG_Object_Group
	PG_Object_Group (CORBA::ORB_ptr orb, PortableGroup::FactoryRegistry_ptr factory_registry, TAO::PG_Object_Group_Manipulator &manipulator, CORBA::Object_ptr empty_group, const PortableGroup::TagGroupTaggedComponent &tagged_component, const char *type_id, const PortableGroup::Criteria &the_criteria, const TAO::PG_Property_Set_var &type_properties)

	PG_Object_Group (CORBA::ORB_ptr orb, PortableGroup::FactoryRegistry_ptr factory_registry, TAO::PG_Object_Group_Manipulator &manipulator)

virtual	~PG_Object_Group ()
	Destructor. More...

PortableGroup::ObjectGroup_ptr	reference () const
	return a duplicated reference to this group (IOGR) More...

void	get_group_specific_factories (PortableGroup::FactoryInfos &result) const

PortableGroup::TypeId	get_type_id () const

PortableGroup::MembershipStyleValue	get_membership_style () const

PortableGroup::MinimumNumberMembersValue	get_minimum_number_members () const

PortableGroup::InitialNumberMembersValue	get_initial_number_members () const

void	set_properties_dynamically (const PortableGroup::Properties &overrides)

void	get_properties (PortableGroup::Properties_var &result) const

Protected Member Functions
virtual void	state_written (void)

virtual bool	is_obsolete (time_t stored_time)

Protected Member Functions inherited from TAO::PG_Object_Group
virtual PortableGroup::ObjectGroup_ptr	add_member_to_iogr (CORBA::Object_ptr member)

void	clear_members_map (void)

Protected Attributes
bool	loaded_from_stream_

bool	destroyed_

bool	write_occurred_
	To set when state written out. More...

TAO_SYNCH_MUTEX	lock_

Protected Attributes inherited from TAO::PG_Object_Group
CORBA::ORB_var	orb_

TAO::PG_Object_Group_Manipulator &	manipulator_

int	distribute_
	boolean true if updates should be distributed More...

int	empty_
	boolean true if empty group More...

ACE_CString	role_

PortableGroup::TypeId_var	type_id_

PortableGroup::TagGroupTaggedComponent	tagged_component_

PortableGroup::ObjectGroup_var	reference_

PortableServer::ObjectId_var	object_id_

char *	group_name_

MemberMap	members_

PortableGroup::Location	primary_location_

TAO::PG_Property_Set	properties_

PortableGroup::InitialNumberMembersValue	initial_number_members_

PortableGroup::MinimumNumberMembersValue	minimum_number_members_

PortableGroup::FactoryInfos	group_specific_factories_

Private Member Functions
	PG_Object_Group_Storable ()

	PG_Object_Group_Storable (const PG_Object_Group_Storable &rhs)

PG_Object_Group_Storable &	operator= (const PG_Object_Group_Storable &rhs)

TAO::Storable_Base *	create_stream (const char *mode)

void	read (TAO::Storable_Base &stream)

void	write (TAO::Storable_Base &stream)

Private Attributes
bool	group_previously_stored_
	Indicate if instance of object group has been restored from store. More...

PortableGroup::ObjectGroupId	group_id_previously_stored_

TAO::Storable_Factory &	storable_factory_

time_t	last_changed_

Friends
class	Object_Group_File_Guard

Additional Inherited Members
Protected Types inherited from TAO::PG_Object_Group
typedef TAO_SYNCH_MUTEX	MemberMapMutex

typedef ACE_Hash_Map_Manager_Ex < PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex >	MemberMap

typedef ACE_Hash_Map_Entry < PortableGroup::Location, MemberInfo * >	MemberMap_Entry

typedef ACE_Hash_Map_Iterator_Ex < PortableGroup::Location, MemberInfo *, TAO_PG_Location_Hash, TAO_PG_Location_Equal_To, MemberMapMutex >	MemberMap_Iterator

Detailed Description

An object group whose state persists to a stream so that its state can be saved/retrieved between processes that use the group.

Constructor & Destructor Documentation

TAO::PG_Object_Group_Storable::PG_Object_Group_Storable	(	CORBA::ORB_ptr	orb,
		PortableGroup::FactoryRegistry_ptr	factory_registry,
		TAO::PG_Object_Group_Manipulator &	manipulator,
		CORBA::Object_ptr	empty_group,
		const PortableGroup::TagGroupTaggedComponent &	tagged_component,
		const char *	type_id,
		const PortableGroup::Criteria &	the_criteria,
		const TAO::PG_Property_Set_var &	type_properties,
		TAO::Storable_Factory &	storable_factory
	)

This constructor is suitable for creating an object group from scratch.

TAO::PG_Object_Group_Storable::PG_Object_Group_Storable	(	PortableGroup::ObjectGroupId	group_id,
		CORBA::ORB_ptr	orb,
		PortableGroup::FactoryRegistry_ptr	factory_registry,
		TAO::PG_Object_Group_Manipulator &	manipulator,
		TAO::Storable_Factory &	storable_factory
	)

This constructor is suitable for creating an object group from persistent store.

TAO::PG_Object_Group_Storable::~PG_Object_Group_Storable ( void )

Destructor.

TAO::PG_Object_Group_Storable::PG_Object_Group_Storable ( )

private

TAO::PG_Object_Group_Storable::PG_Object_Group_Storable ( const PG_Object_Group_Storable & rhs )

private

Member Function Documentation

void TAO::PG_Object_Group_Storable::add_member	(	const PortableGroup::Location &	the_location,
		CORBA::Object_ptr	member
	)

virtual

Add a new member to the group.

Parameters

the_location	the location for the new member
member	the member to be added

Reimplemented from TAO::PG_Object_Group.

void TAO::PG_Object_Group_Storable::create_member	(	const PortableGroup::Location &	the_location,
		const char *	type_id,
		const PortableGroup::Criteria &	the_criteria
	)

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

TAO::Storable_Base * TAO::PG_Object_Group_Storable::create_stream ( const char * mode )

private

void TAO::PG_Object_Group_Storable::distribute ( int value )

virtual

Tell the object group that it should distribute updates to the object group state.

Reimplemented from TAO::PG_Object_Group.

CORBA::Object_ptr TAO::PG_Object_Group_Storable::get_member_reference ( const PortableGroup::Location & the_location )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

const char * TAO::PG_Object_Group_Storable::get_name ( void )

virtual

Reimplemented from TAO::PG_Object_Group.

PortableGroup::ObjectGroupId TAO::PG_Object_Group_Storable::get_object_group_id ( void ) const

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

const PortableGroup::Location & TAO::PG_Object_Group_Storable::get_primary_location ( void )

virtual

get location of primary member

Reimplemented from TAO::PG_Object_Group.

int TAO::PG_Object_Group_Storable::has_member_at ( const PortableGroup::Location & location )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

void TAO::PG_Object_Group_Storable::initial_populate ( void )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

bool TAO::PG_Object_Group_Storable::is_obsolete ( time_t stored_time )

protectedvirtual

A callback invoked by the object group file guard to determine if this context is obsolete with respect to the peristent store.

PortableGroup::Locations * TAO::PG_Object_Group_Storable::locations_of_members ( void )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

void TAO::PG_Object_Group_Storable::minimum_populate ( void )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

PG_Object_Group_Storable& TAO::PG_Object_Group_Storable::operator= ( const PG_Object_Group_Storable & rhs )

private

void TAO::PG_Object_Group_Storable::read ( TAO::Storable_Base & stream )

private

void TAO::PG_Object_Group_Storable::remove_member ( const PortableGroup::Location & the_location )

virtual

@TODO DOC

Reimplemented from TAO::PG_Object_Group.

void TAO::PG_Object_Group_Storable::set_destroyed ( bool destroyed )

Indicate that this object group is to be permanently destroyed. During destruction the persistent store for this will then be removed. This is to distinguish between deletion from a process shutdown verses deletion from a destroy request.

void TAO::PG_Object_Group_Storable::set_name ( const char * group_name )

virtual

Reimplemented from TAO::PG_Object_Group.

int TAO::PG_Object_Group_Storable::set_primary_member	(	TAO_IOP::TAO_IOR_Property *	prop,
		const PortableGroup::Location &	the_location
	)

virtual

set the replica at the given location to be primary. Note: This should return void and throw FT::PrimaryNotSet but to avoid dependancies between PortableGroup and FaultTolerance it returns a boolean result. A false return means caller should throw FT::PrimaryNot_Set.

Reimplemented from TAO::PG_Object_Group.

void TAO::PG_Object_Group_Storable::stale ( bool is_stale )

virtual

Allow for replication persistence support by derived classes.

bool TAO::PG_Object_Group_Storable::stale ( )

virtual

void TAO::PG_Object_Group_Storable::state_written ( void )

protectedvirtual

Signals that this context was updated.

void TAO::PG_Object_Group_Storable::write ( TAO::Storable_Base & stream )

private

Friends And Related Function Documentation

friend class Object_Group_File_Guard

friend

Member Data Documentation

bool TAO::PG_Object_Group_Storable::destroyed_

protected

PortableGroup::ObjectGroupId TAO::PG_Object_Group_Storable::group_id_previously_stored_

private

bool TAO::PG_Object_Group_Storable::group_previously_stored_

private

Indicate if instance of object group has been restored from store.

time_t TAO::PG_Object_Group_Storable::last_changed_

private

bool TAO::PG_Object_Group_Storable::loaded_from_stream_

protected

TAO_SYNCH_MUTEX TAO::PG_Object_Group_Storable::lock_

protected

TAO::Storable_Factory& TAO::PG_Object_Group_Storable::storable_factory_

private

bool TAO::PG_Object_Group_Storable::write_occurred_

protected

To set when state written out.
