TAO_VDev Class Reference

Implements the VDev interface. One of these is created per connection, and represents device-specific parameters. More...

#include <AVStreams_i.h>

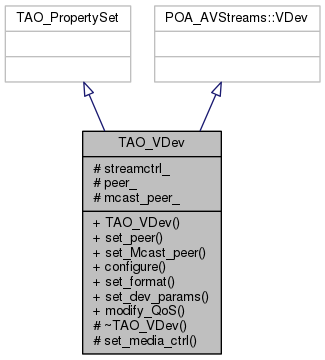

Inheritance diagram for TAO_VDev:

Collaboration diagram for TAO_VDev:

Public Member Functions
	TAO_VDev (void)
	Default Constructor. More...
virtual CORBA::Boolean	set_peer (AVStreams::StreamCtrl_ptr the_ctrl, AVStreams::VDev_ptr the_peer_dev, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_spec)
	Called to tell the vdev who the streamctrl, peer vdev is. More...
virtual CORBA::Boolean	set_Mcast_peer (AVStreams::StreamCtrl_ptr the_ctrl, AVStreams::MCastConfigIf_ptr a_mcastconfigif, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_spec)
	Used to set the streamctrl and multicast device. More...
virtual void	configure (const CosPropertyService::Property &the_config_mesg)
	Called by the peer VDev to configure the device (catch all) More...
virtual void	set_format (const char *flowName, const char *format_name)
	Used to set a format on a flowname. More...
virtual void	set_dev_params (const char *flowName, const CosPropertyService::Properties &new_params)
	Used to set device parameters. More...
virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_spec)
	Called to change QoS of the device. More...

Protected Member Functions
virtual	~TAO_VDev (void)
virtual CORBA::Boolean	set_media_ctrl (CORBA::Object_ptr media_ctrl)
	hook called after set_peer is done to set the media ctrl of the peer vdev. More...

Protected Attributes
AVStreams::StreamCtrl_var	streamctrl_
	My stream controller. More...
AVStreams::VDev_var	peer_
	My peer. More...
AVStreams::MCastConfigIf_var	mcast_peer_
	The multicast VDev peer. More...

Detailed Description

Implements the VDev interface. One of these is created per connection, and represents device-specific parameters.

Constructor & Destructor Documentation

TAO_VDev::TAO_VDev

(

void

)

Default Constructor.

TAO_VDev::~TAO_VDev ( void  )

protectedvirtual

Destructor for a servant should be protected or private. Use _remove_ref() to delete this servant.

Member Function Documentation

void TAO_VDev::configure ( const CosPropertyService::Property &  the_config_mesg )

virtual

Called by the peer VDev to configure the device (catch all)

CORBA::Boolean TAO_VDev::modify_QoS ( AVStreams::streamQoS &  the_qos, const AVStreams::flowSpec &  the_spec  )

virtual

Called to change QoS of the device.

void TAO_VDev::set_dev_params ( const char *  flowName, const CosPropertyService::Properties &  new_params  )

virtual

Used to set device parameters.

void TAO_VDev::set_format ( const char *  flowName, const char *  format_name  )

virtual

Used to set a format on a flowname.

CORBA::Boolean TAO_VDev::set_Mcast_peer ( AVStreams::StreamCtrl_ptr  the_ctrl, AVStreams::MCastConfigIf_ptr  a_mcastconfigif, AVStreams::streamQoS &  the_qos, const AVStreams::flowSpec &  the_spec  )

virtual

Used to set the streamctrl and multicast device.

CORBA::Boolean TAO_VDev::set_media_ctrl ( CORBA::Object_ptr  media_ctrl )

protectedvirtual

hook called after set_peer is done to set the media ctrl of the peer vdev.

CORBA::Boolean TAO_VDev::set_peer ( AVStreams::StreamCtrl_ptr  the_ctrl, AVStreams::VDev_ptr  the_peer_dev, AVStreams::streamQoS &  the_qos, const AVStreams::flowSpec &  the_spec  )

virtual

Called to tell the vdev who the streamctrl, peer vdev is.

Member Data Documentation

AVStreams::MCastConfigIf_var TAO_VDev::mcast_peer_

protected

The multicast VDev peer.

AVStreams::VDev_var TAO_VDev::peer_

protected

My peer.

AVStreams::StreamCtrl_var TAO_VDev::streamctrl_

protected

My stream controller.

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp
