RTCP_BYE_Packet Class Reference

The BYE RTCP packet is sent by a party when leaving an RTP session. More...

#include <RTCP_Packet.h>

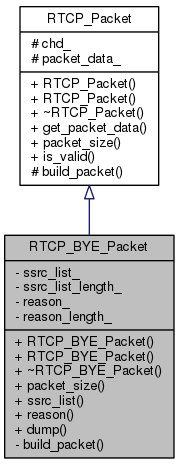

Inheritance diagram for RTCP_BYE_Packet:

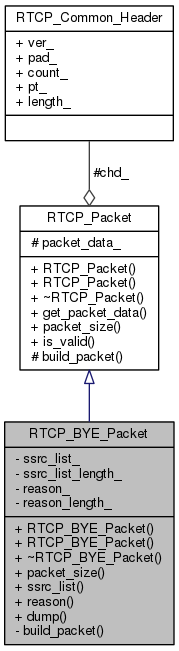

Collaboration diagram for RTCP_BYE_Packet:

Public Member Functions
	RTCP_BYE_Packet (ACE_UINT32 *srcList, unsigned char length, const char *text=0)
	RTCP_BYE_Packet (char *buffer, int *len)
	Constructor for incoming BYE RTCP packets. More...
virtual	~RTCP_BYE_Packet (void)
	Destructor. More...
unsigned int	packet_size (void)
	Returns the size of the packet in bytes. More...
void	ssrc_list (ACE_UINT32 **ssrc_list, unsigned char &length)
const char *	reason (void)
	Returns the reason for leaving the session. More...
void	dump (void)
	Prints the contents of the packet. More...
Public Member Functions inherited from RTCP_Packet
	RTCP_Packet (void)
	Constructor for outgoing RTCP packets. More...
	RTCP_Packet (char *buffer)
	Constructor for incoming RTCP packets. More...
virtual	~RTCP_Packet ()
	Destructor. More...
void	get_packet_data (char **buffer, ACE_UINT16 &length)
	Returns a pointer to a local buffer containing the packet. More...
int	is_valid (char is_first)

Private Member Functions
void	build_packet ()
	Used to create the byte representation of the RTCP packet. More...

Private Attributes
ACE_UINT32 *	ssrc_list_
	List of synchronization source ids that are leaving the session. More...
unsigned char	ssrc_list_length_
	The number of ssrc's that are leaving the session (1 for non-mixers). More...
char	reason_ [256]
	An optional reason for leaving the session. More...
unsigned char	reason_length_
	The number of bytes in the reason for leaving the session. More...

Additional Inherited Members
Protected Attributes inherited from RTCP_Packet
RTCP_Common_Header	chd_
	Header data common to all RTCP packets. More...
char *	packet_data_
	Buffer to hold byte representation of the RTCP packet. More...

Detailed Description

The BYE RTCP packet is sent by a party when leaving an RTP session.

Constructor & Destructor Documentation

RTCP_BYE_Packet::RTCP_BYE_Packet	(	ACE_UINT32 *	srcList,
		unsigned char	length,
		const char *	text = 0
	)

Constructor for outgoing BYE RTCP packets. Takes a synchronization source id list, the list length (1 for non-mixers), and an optional reason for leaving the session.

RTCP_BYE_Packet::RTCP_BYE_Packet	(	char *	buffer,
		int *	len
	)

Constructor for incoming BYE RTCP packets.

RTCP_BYE_Packet::~RTCP_BYE_Packet ( void  )

virtual

Destructor.

Member Function Documentation

void RTCP_BYE_Packet::build_packet ( void  )

privatevirtual

Used to create the byte representation of the RTCP packet.

Implements RTCP_Packet.

void RTCP_BYE_Packet::dump

(

void

)

Prints the contents of the packet.

unsigned int RTCP_BYE_Packet::packet_size ( void  )

virtual

Returns the size of the packet in bytes.

Implements RTCP_Packet.

const char * RTCP_BYE_Packet::reason

(

void

)

Returns the reason for leaving the session.

void RTCP_BYE_Packet::ssrc_list	(	ACE_UINT32 **	ssrc_list,
		unsigned char &	length
	)

Returns a pointer to a local list of synchronization source ids that are leaving the session.

Member Data Documentation

char RTCP_BYE_Packet::reason_[256]

private

An optional reason for leaving the session.

unsigned char RTCP_BYE_Packet::reason_length_

private

The number of bytes in the reason for leaving the session.

ACE_UINT32* RTCP_BYE_Packet::ssrc_list_

private

List of synchronization source ids that are leaving the session.

unsigned char RTCP_BYE_Packet::ssrc_list_length_

private

The number of ssrc's that are leaving the session (1 for non-mixers).

---

The documentation for this class was generated from the following files:

• RTCP_Packet.h
• RTCP_Packet.cpp
