TAO::DII_Invocation_Adapter Class Reference

Generic interface for the DII invocation object visible. More...

#include <DII_Invocation_Adapter.h>

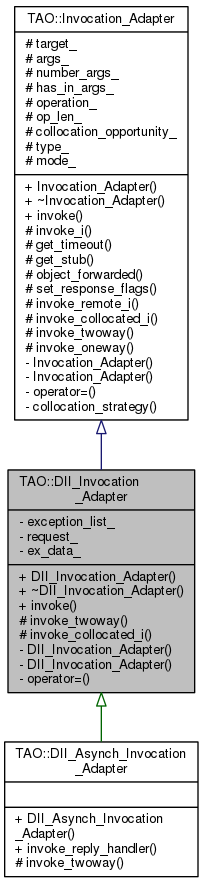

Inheritance diagram for TAO::DII_Invocation_Adapter:

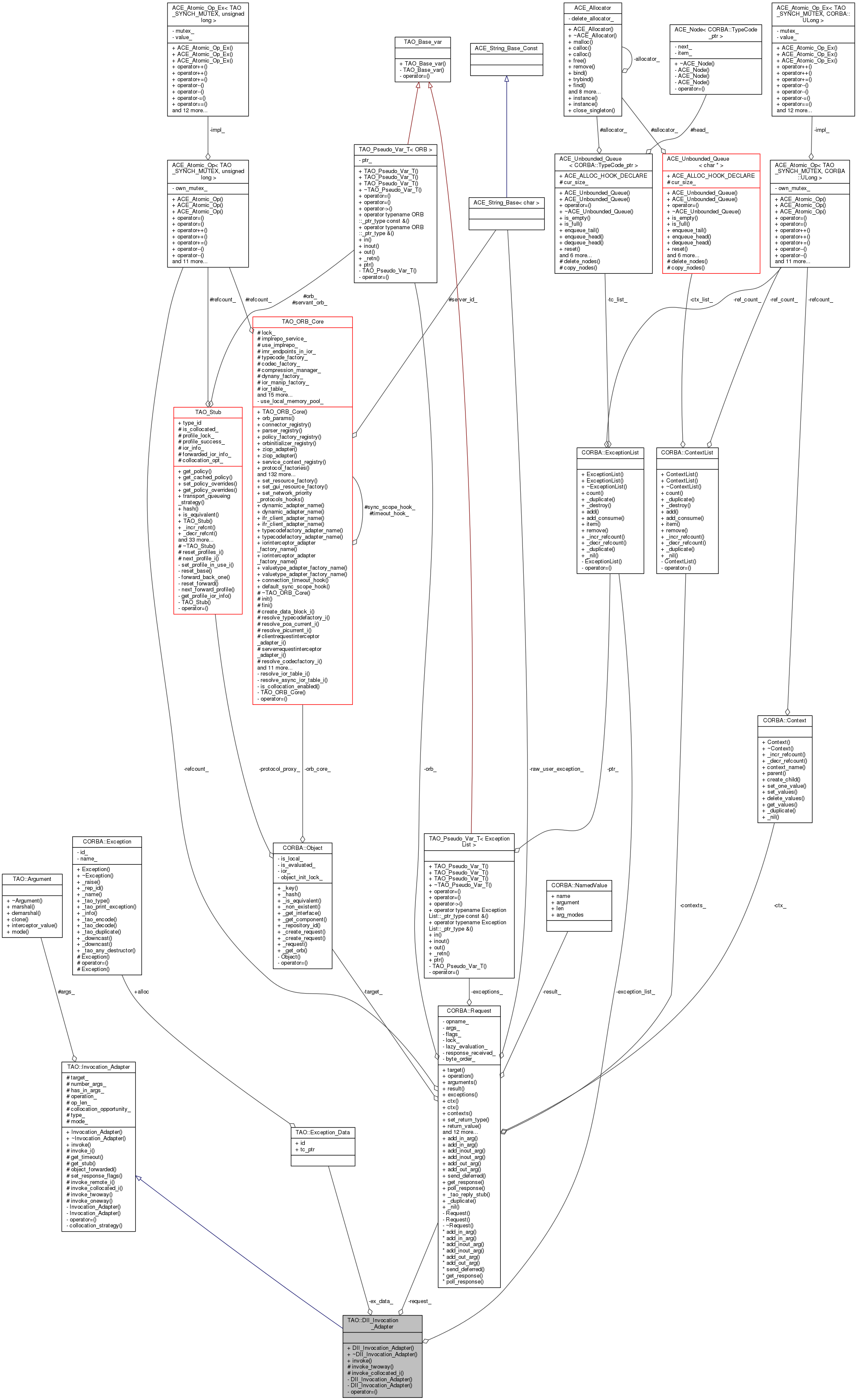

Collaboration diagram for TAO::DII_Invocation_Adapter:

Public Member Functions
	DII_Invocation_Adapter (CORBA::Object *target, Argument **args, int arg_number, const char *operation, size_t op_len, CORBA::ExceptionList *exception, CORBA::Request *r, Invocation_Mode mode=TAO_DII_INVOCATION)
virtual	~DII_Invocation_Adapter (void)
virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target. More...
Public Member Functions inherited from TAO::Invocation_Adapter
	Invocation_Adapter (CORBA::Object_ptr target, Argument **args, int arg_number, const char *operation, size_t op_len, int collocation_opportunity, TAO::Invocation_Type type=TAO_TWOWAY_INVOCATION, TAO::Invocation_Mode mode=TAO_SYNCHRONOUS_INVOCATION, bool has_in_args=true)
virtual	~Invocation_Adapter (void)

Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
Protected Member Functions inherited from TAO::Invocation_Adapter
virtual void	invoke_i (TAO_Stub *stub, TAO_Operation_Details &details)
bool	get_timeout (TAO_Stub *stub, ACE_Time_Value &val)
TAO_Stub *	get_stub (void) const
void	object_forwarded (CORBA::Object_var &effective_target, TAO_Stub *stub, CORBA::Boolean permanent_forward)
void	set_response_flags (TAO_Stub *stub, TAO_Operation_Details &details)
virtual Invocation_Status	invoke_remote_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_oneway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)

Private Member Functions
	DII_Invocation_Adapter (void)
	Dont allow default initializations. More...
	DII_Invocation_Adapter (const DII_Invocation_Adapter &)
DII_Invocation_Adapter &	operator= (const DII_Invocation_Adapter &)

Private Attributes
CORBA::ExceptionList *	exception_list_
CORBA::Request *	request_
TAO::Exception_Data *	ex_data_

Additional Inherited Members
Protected Attributes inherited from TAO::Invocation_Adapter
CORBA::Object_ptr	target_
Argument **const	args_
int const	number_args_
bool	has_in_args_
char const *	operation_
size_t const	op_len_
int const	collocation_opportunity_
Invocation_Type const	type_
Invocation_Mode const	mode_

Detailed Description

Generic interface for the DII invocation object visible.

Constructor & Destructor Documentation

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		CORBA::ExceptionList *	exception,
		CORBA::Request *	r,
		Invocation_Mode	mode = TAO_DII_INVOCATION
	)

The only constructor used by the IDL compiler and only way to create this adapter.

Parameters

target	Points to the object on which this invocation is being invoked.
args	Array of pointers to the argument list in the operation declaration. this includes the return, inout and out arguments.
arg_number	Number of arguments in the above array. This is the number of elements in the above array.
operation	The name of the operation being invoked.
op_len	Number of characters in the operation name. This is an optimization which helps us to avoid calling strlen () while creating a message format.
mode	Invocation mode. This information is also available in the IDL file and in the generated code.

TAO::DII_Invocation_Adapter::~DII_Invocation_Adapter ( void  )

virtual

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( void  )

private

Dont allow default initializations.

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( const DII_Invocation_Adapter &  )

private

Member Function Documentation

void TAO::DII_Invocation_Adapter::invoke ( TAO::Exception_Data *  ex, unsigned long  ex_count  )

virtual

Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Invocation_Adapter::invoke_collocated_i ( TAO_Stub *  stub, TAO_Operation_Details &  details, CORBA::Object_var &  effective_target, Collocation_Strategy  strat  )

protectedvirtual

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Invocation_Adapter::invoke_twoway ( TAO_Operation_Details &  op, CORBA::Object_var &  effective_target, Profile_Transport_Resolver &  r, ACE_Time_Value *&  max_wait_time, Invocation_Retry_State *  retry_state = 0  )

protectedvirtual

Reimplemented from TAO::Invocation_Adapter.

Reimplemented in TAO::DII_Asynch_Invocation_Adapter.

DII_Invocation_Adapter& TAO::DII_Invocation_Adapter::operator= ( const DII_Invocation_Adapter &  )

private

Member Data Documentation

TAO::Exception_Data* TAO::DII_Invocation_Adapter::ex_data_

private

CORBA::ExceptionList* TAO::DII_Invocation_Adapter::exception_list_

private

CORBA::Request* TAO::DII_Invocation_Adapter::request_

private

---

The documentation for this class was generated from the following files:

• DII_Invocation_Adapter.h
• DII_Invocation_Adapter.cpp
