ACE_Auto_Event Class Reference

Auto Events. More...

#include <Auto_Event.h>

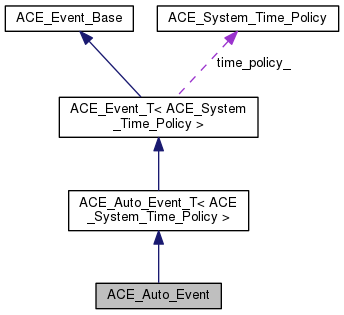

Inheritance diagram for ACE_Auto_Event:

Collaboration diagram for ACE_Auto_Event:

Public Member Functions
	ACE_Auto_Event (int initial_state=0, int type=USYNC_THREAD, const char *name=0, void *arg=0)
	Constructor which will create auto event. More...
	ACE_Auto_Event (int initial_state, int type, const wchar_t *name, void *arg=0)
	Constructor which will create auto event (wchar_t version) More...
virtual	~ACE_Auto_Event (void)
	Default dtor. More...
Public Member Functions inherited from ACE_Auto_Event_T< ACE_System_Time_Policy >
	ACE_Auto_Event_T (int initial_state=0, int type=USYNC_THREAD, const char *name=0, void *arg=0)
	Constructor which will create auto event. More...
	ACE_Auto_Event_T (int initial_state, int type, const wchar_t *name, void *arg=0)
	Constructor which will create auto event (wchar_t version) More...
virtual	~ACE_Auto_Event_T (void)
	Default dtor. More...
void	dump (void) const
	Dump the state of an object. More...
Public Member Functions inherited from ACE_Event_T< ACE_System_Time_Policy >
	ACE_Event_T (int manual_reset=0, int initial_state=0, int type=USYNC_THREAD, const ACE_TCHAR *name=0, void *arg=0, LPSECURITY_ATTRIBUTES sa=0)
	Constructor that creates event. More...
virtual	~ACE_Event_T (void)
	Implicitly destroy the event variable. More...
ACE_Time_Value_T < ACE_System_Time_Policy >	gettimeofday (void) const
void	set_time_policy (ACE_System_Time_Policyconst &time_policy)
Public Member Functions inherited from ACE_Event_Base
virtual	~ACE_Event_Base (void)
	Implicitly destroy the event variable. More...
int	remove (void)
ACE_event_t	handle (void) const
	Underlying handle to event. More...
void	handle (ACE_event_t new_handle)
int	wait (void)
int	wait (const ACE_Time_Value *abstime, int use_absolute_time=1)
int	signal (void)
int	pulse (void)
int	reset (void)
	Set to nonsignaled state. More...
void	dump (void) const
	Dump the state of an object. More...

Additional Inherited Members
Public Attributes inherited from ACE_Auto_Event_T< ACE_System_Time_Policy >
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...
Public Attributes inherited from ACE_Event_T< ACE_System_Time_Policy >
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...
Public Attributes inherited from ACE_Event_Base
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...
Protected Member Functions inherited from ACE_Event_Base
	ACE_Event_Base ()
	Only derived classes allowed to construct event. More...
Protected Attributes inherited from ACE_Event_T< ACE_System_Time_Policy >
ACE_System_Time_Policy	time_policy_
	The policy to return the current time of day. More...
Protected Attributes inherited from ACE_Event_Base
ACE_event_t	handle_
	The underlying handle. More...
bool	removed_

Detailed Description

Auto Events.

Specialization of Event mechanism which wakes up one waiting thread on signal. All platforms support process-scope locking support. However, only Win32 platforms support global naming and system-scope locking support.

Constructor & Destructor Documentation

ACE_Auto_Event::ACE_Auto_Event ( int  initial_state = 0, int  type = USYNC_THREAD, const char *  name = 0, void *  arg = 0  )

inline

Constructor which will create auto event.

ACE_Auto_Event::ACE_Auto_Event ( int  initial_state, int  type, const wchar_t *  name, void *  arg = 0  )

inline

Constructor which will create auto event (wchar_t version)

virtual ACE_Auto_Event::~ACE_Auto_Event ( void  )

inlinevirtual

Default dtor.

---

The documentation for this class was generated from the following file:

• Auto_Event.h
