This class is for deferred DII invocation. More...

#include <DII_Invocation_Adapter.h>

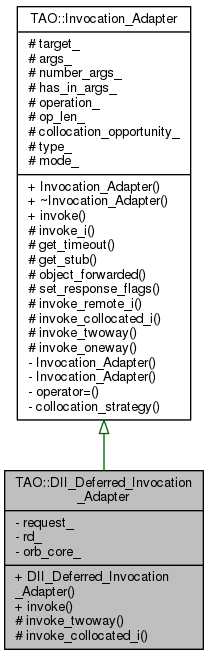

Inheritance diagram for TAO::DII_Deferred_Invocation_Adapter:

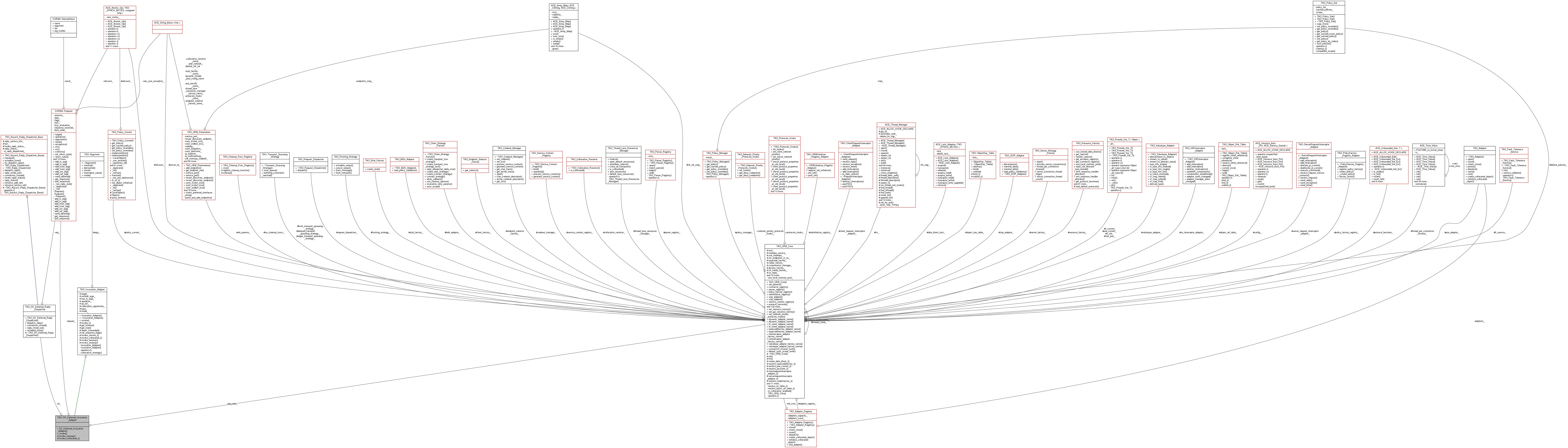

Collaboration diagram for TAO::DII_Deferred_Invocation_Adapter:

Public Member Functions
	DII_Deferred_Invocation_Adapter (CORBA::Object target, Argument args, int arg_number, const char operation, size_t op_len, int collocation_opportunity, TAO_ORB_Core oc, CORBA::Request req, TAO::Invocation_Mode mode=TAO_DII_DEFERRED_INVOCATION)

virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target. More...

Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value &max_wait_time, Invocation_Retry_State retry_state=0)

virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)

Protected Member Functions inherited from TAO::Invocation_Adapter
virtual void	invoke_i (TAO_Stub *stub, TAO_Operation_Details &details)

bool	get_timeout (TAO_Stub *stub, ACE_Time_Value &val)

TAO_Stub *	get_stub (void) const

void	object_forwarded (CORBA::Object_var &effective_target, TAO_Stub *stub, CORBA::Boolean permanent_forward)

void	set_response_flags (TAO_Stub *stub, TAO_Operation_Details &details)

virtual Invocation_Status	invoke_remote_i (TAO_Stub stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, ACE_Time_Value &max_wait_time, Invocation_Retry_State *retry_state=0)

virtual Invocation_Status	invoke_oneway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)

	Invocation_Adapter (CORBA::Object_ptr target, Argument *args, int arg_number, const char operation, size_t op_len, int collocation_opportunity, TAO::Invocation_Type type=TAO_TWOWAY_INVOCATION, TAO::Invocation_Mode mode=TAO_SYNCHRONOUS_INVOCATION, bool has_in_args=true)

virtual	~Invocation_Adapter (void)

Private Attributes
CORBA::Request *	request_

TAO_DII_Deferred_Reply_Dispatcher *	rd_
	Reply dispatcher for the current Invocation. More...

TAO_ORB_Core *const	orb_core_
	Cache the orb_core. More...

Additional Inherited Members
Protected Attributes inherited from TAO::Invocation_Adapter
CORBA::Object_ptr	target_

Argument **const	args_

int const	number_args_

bool	has_in_args_

char const *	operation_

size_t const	op_len_

int const	collocation_opportunity_

Invocation_Type const	type_

Invocation_Mode const	mode_

Detailed Description

This class is for deferred DII invocation.

Constructor & Destructor Documentation

TAO::DII_Deferred_Invocation_Adapter::DII_Deferred_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		int	collocation_opportunity,
		TAO_ORB_Core *	oc,
		CORBA::Request *	req,
		TAO::Invocation_Mode	mode = `TAO_DII_DEFERRED_INVOCATION`
	)

void TAO::DII_Deferred_Invocation_Adapter::invoke	(	TAO::Exception_Data *	ex,
		unsigned long	ex_count
	)

virtual

Invoke the target.

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_collocated_i	(	TAO_Stub *	stub,
		TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Collocation_Strategy	strat
	)

protectedvirtual

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_twoway	(	TAO_Operation_Details &	op,
		CORBA::Object_var &	effective_target,
		Profile_Transport_Resolver &	r,
		ACE_Time_Value *&	max_wait_time,
		Invocation_Retry_State *	retry_state = `0`
	)

protectedvirtual

TAO_ORB_Core* const TAO::DII_Deferred_Invocation_Adapter::orb_core_

private

Cache the orb_core.

TAO_DII_Deferred_Reply_Dispatcher* TAO::DII_Deferred_Invocation_Adapter::rd_

private

Reply dispatcher for the current Invocation.

CORBA::Request* TAO::DII_Deferred_Invocation_Adapter::request_

private

The documentation for this class was generated from the following files:
