This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies. More...

#include <default_client.h>

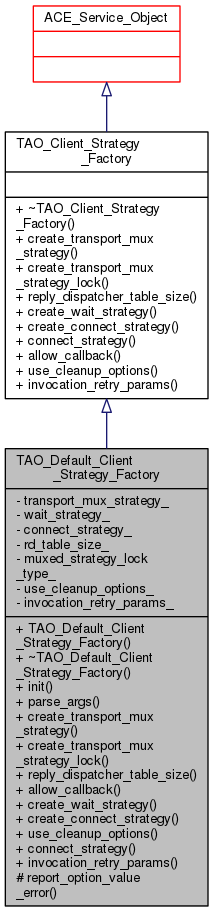

Inheritance diagram for TAO_Default_Client_Strategy_Factory:

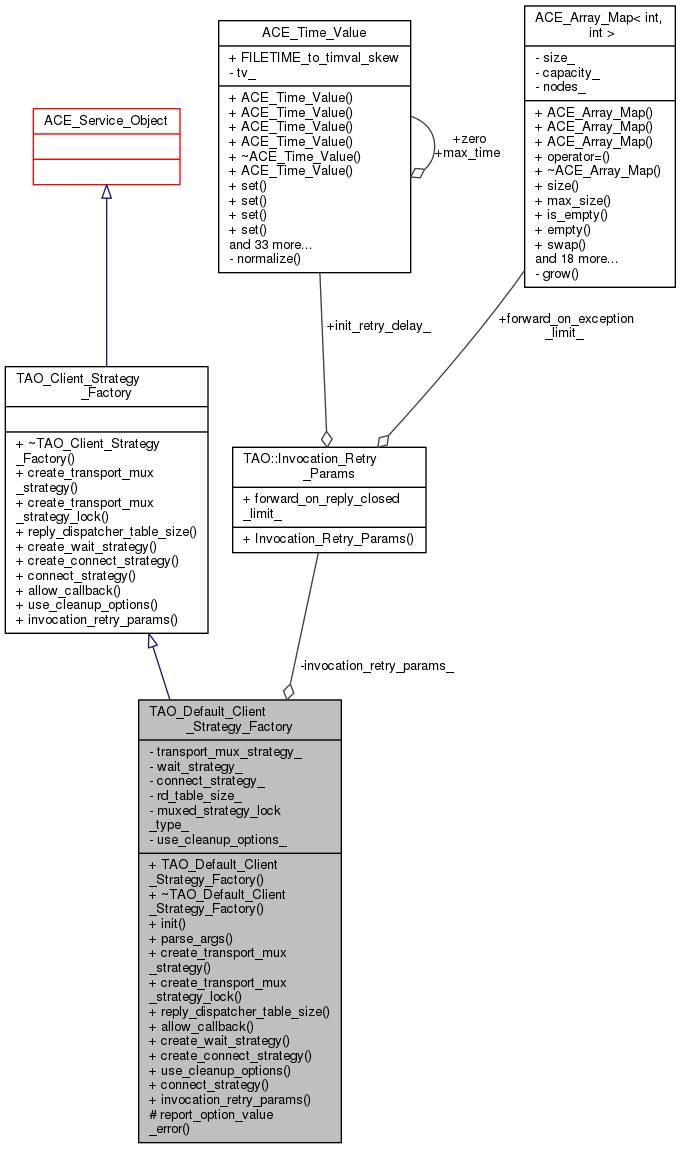

Collaboration diagram for TAO_Default_Client_Strategy_Factory:

Public Member Functions
	TAO_Default_Client_Strategy_Factory (void)
	Constructor. More...

virtual	~TAO_Default_Client_Strategy_Factory (void)
	Destructor. More...

virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook. More...

int	parse_args (int argc, ACE_TCHAR *argv[])
	Parse svc.conf arguments. More...

virtual TAO_Transport_Mux_Strategy *	create_transport_mux_strategy (TAO_Transport *transport)
	Create the correct client transport muxing strategy. More...

virtual ACE_Lock *	create_transport_mux_strategy_lock (void)
	Create the correct lock for request muxing strategy. More...

virtual int	reply_dispatcher_table_size (void) const
	Return the size of the reply dispatcher table. More...

virtual int	allow_callback (void)
	Does the client allow any form of callback? More...

virtual TAO_Wait_Strategy *	create_wait_strategy (TAO_Transport *transport)
	Create the correct client wait_for_reply strategy. More...

virtual TAO_Connect_Strategy *	create_connect_strategy (TAO_ORB_Core *)
	Create the correct client asynch_connect strategy. More...

virtual bool	use_cleanup_options (void) const
	Cleanup options for wait strategy. More...

virtual Connect_Strategy	connect_strategy (void) const
	Return the selected connection strategy option. More...

virtual const TAO::Invocation_Retry_Params &	invocation_retry_params (void) const

Public Member Functions inherited from TAO_Client_Strategy_Factory
virtual	~TAO_Client_Strategy_Factory (void)
	Destructor. More...

Protected Member Functions
void	report_option_value_error (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

Private Types
enum	Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }

enum	Transport_Mux_Strategy { TAO_MUXED_TMS, TAO_EXCLUSIVE_TMS }

enum	Wait_Strategy { TAO_WAIT_ON_LEADER_FOLLOWER, TAO_WAIT_ON_REACTOR, TAO_WAIT_ON_READ, TAO_WAIT_ON_LF_NO_UPCALL }

Private Attributes
Transport_Mux_Strategy	transport_mux_strategy_
	The client Request Mux Strategy. More...

Wait_Strategy	wait_strategy_
	The wait-for-reply strategy. More...

Connect_Strategy	connect_strategy_
	The connection initiation strategy. More...

int	rd_table_size_
	Size of the reply dispatcher table. More...

Lock_Type	muxed_strategy_lock_type_
	Type of lock for the muxed_strategy. More...

bool	use_cleanup_options_
	Cleanupoptions for RW strategy. More...

TAO::Invocation_Retry_Params	invocation_retry_params_
	Retry options when exceptions occur. More...

Additional Inherited Members
Public Types inherited from TAO_Client_Strategy_Factory
enum	Connect_Strategy { TAO_BLOCKED_CONNECT, TAO_REACTIVE_CONNECT, TAO_LEADER_FOLLOWER_CONNECT }

Detailed Description

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies.

Member Enumeration Documentation

enum TAO_Default_Client_Strategy_Factory::Lock_Type

private

Enumerator
TAO_NULL_LOCK
TAO_THREAD_LOCK

enum TAO_Default_Client_Strategy_Factory::Transport_Mux_Strategy

private

Enumerator
TAO_MUXED_TMS
TAO_EXCLUSIVE_TMS

enum TAO_Default_Client_Strategy_Factory::Wait_Strategy

private

Enumerator
TAO_WAIT_ON_LEADER_FOLLOWER
TAO_WAIT_ON_REACTOR
TAO_WAIT_ON_READ
TAO_WAIT_ON_LF_NO_UPCALL

Constructor & Destructor Documentation

TAO_Default_Client_Strategy_Factory::TAO_Default_Client_Strategy_Factory ( void )

Constructor.

TAO_Default_Client_Strategy_Factory::~TAO_Default_Client_Strategy_Factory ( void )

virtual

Destructor.

Member Function Documentation

int TAO_Default_Client_Strategy_Factory::allow_callback ( void )

virtual

Does the client allow any form of callback?

Implements TAO_Client_Strategy_Factory.

TAO_Client_Strategy_Factory::Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy ( void ) const

virtual

Return the selected connection strategy option.

Implements TAO_Client_Strategy_Factory.

TAO_Connect_Strategy * TAO_Default_Client_Strategy_Factory::create_connect_strategy ( TAO_ORB_Core * )

virtual

Create the correct client asynch_connect strategy.

Implements TAO_Client_Strategy_Factory.

TAO_Transport_Mux_Strategy * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy ( TAO_Transport * transport )

virtual

Create the correct client transport muxing strategy.

Implements TAO_Client_Strategy_Factory.

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy_lock ( void )

virtual

Create the correct lock for request muxing strategy.

Implements TAO_Client_Strategy_Factory.

TAO_Wait_Strategy * TAO_Default_Client_Strategy_Factory::create_wait_strategy ( TAO_Transport * transport )

virtual

Create the correct client wait_for_reply strategy.

Implements TAO_Client_Strategy_Factory.

int TAO_Default_Client_Strategy_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Dynamic linking hook.

const TAO::Invocation_Retry_Params & TAO_Default_Client_Strategy_Factory::invocation_retry_params ( void ) const

virtual

Return the parameters used to optionally retry invocation after an exception occurs.

Implements TAO_Client_Strategy_Factory.

int TAO_Default_Client_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)

Parse svc.conf arguments.

int TAO_Default_Client_Strategy_Factory::reply_dispatcher_table_size ( void ) const

virtual

Return the size of the reply dispatcher table.

Implements TAO_Client_Strategy_Factory.

void TAO_Default_Client_Strategy_Factory::report_option_value_error	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)

protected

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options ( void ) const

virtual

Cleanup options for wait strategy.

Only applicable to RW wait strategy

Implements TAO_Client_Strategy_Factory.

Member Data Documentation

Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy_

private

The connection initiation strategy.

TAO::Invocation_Retry_Params TAO_Default_Client_Strategy_Factory::invocation_retry_params_

private

Retry options when exceptions occur.

Lock_Type TAO_Default_Client_Strategy_Factory::muxed_strategy_lock_type_

private

Type of lock for the muxed_strategy.

int TAO_Default_Client_Strategy_Factory::rd_table_size_

private

Size of the reply dispatcher table.

Transport_Mux_Strategy TAO_Default_Client_Strategy_Factory::transport_mux_strategy_

private

The client Request Mux Strategy.

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options_

private

Cleanupoptions for RW strategy.

Wait_Strategy TAO_Default_Client_Strategy_Factory::wait_strategy_

private

The wait-for-reply strategy.

The documentation for this class was generated from the following files:
