TAO::SSLIOP::Protocol_Factory Class Reference

SSLIOP-specific protocol factory implementation. More...

#include <SSLIOP_Factory.h>

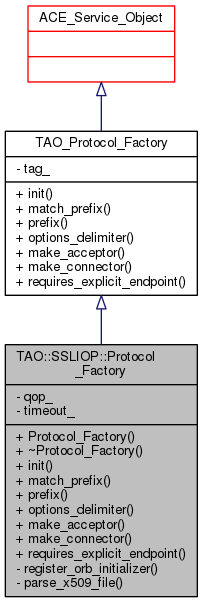

Inheritance diagram for TAO::SSLIOP::Protocol_Factory:

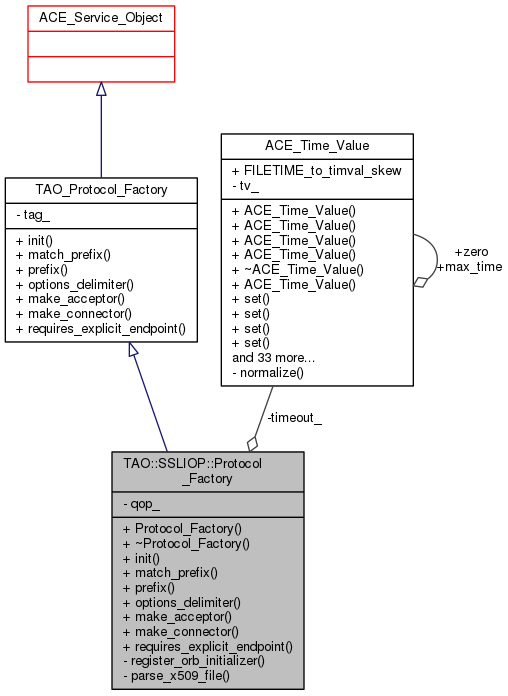

Collaboration diagram for TAO::SSLIOP::Protocol_Factory:

Public Member Functions
	Protocol_Factory (void)
	Constructor. More...
virtual	~Protocol_Factory (void)
	Destructor. More...
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook. More...
virtual int	match_prefix (const ACE_CString &prefix)
	Verify prefix is a match. More...
virtual const char *	prefix (void) const
	Returns the prefix used by the protocol. More...
virtual char	options_delimiter (void) const
virtual TAO_Acceptor *	make_acceptor (void)
virtual TAO_Connector *	make_connector (void)
virtual int	requires_explicit_endpoint (void) const

Private Member Functions
int	register_orb_initializer (CSIIOP::AssociationOptions csiv2_target_supports, CSIIOP::AssociationOptions csiv2_target_requires)
	Create and register the SSLIOP ORB initializer. More...

Static Private Member Functions
static int	parse_x509_file (char *arg, char **path)

Private Attributes
::Security::QOP	qop_
ACE_Time_Value	timeout_
	The accept() timeout. More...

Detailed Description

SSLIOP-specific protocol factory implementation.

This class implements the SSLIOP-specific protocol factory implementation for use in TAO's pluggable protocols framework.

Constructor & Destructor Documentation

TAO::SSLIOP::Protocol_Factory::Protocol_Factory

(

void

)

Constructor.

TAO::SSLIOP::Protocol_Factory::~Protocol_Factory ( void  )

virtual

Destructor.

Member Function Documentation

int TAO::SSLIOP::Protocol_Factory::init ( int  argc, ACE_TCHAR *  argv[]  )

virtual

Dynamic linking hook.

Implements TAO_Protocol_Factory.

TAO_Acceptor * TAO::SSLIOP::Protocol_Factory::make_acceptor ( void  )

virtual

Implements TAO_Protocol_Factory.

TAO_Connector * TAO::SSLIOP::Protocol_Factory::make_connector ( void  )

virtual

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::match_prefix ( const ACE_CString &  prefix )

virtual

Verify prefix is a match.

Implements TAO_Protocol_Factory.

char TAO::SSLIOP::Protocol_Factory::options_delimiter ( void  ) const

virtual

Return the character used to mark where an endpoint ends and where its options begin.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::parse_x509_file ( char *  arg, char **  path  )

staticprivate

Parse an X509 file path, which is expected to looks like: <X509Path> ::= <Prefix> ':' <Path> <Prefix> ::= 'PEM' | 'ASN1' <Path> ::= any-string Returns either SSL_FILETYPE_ASN1, SSL_FILETYPE_PEM or -1 if the prefix can not be recognized. The *path will point to the part of the original buffer, after the initial ':', or will contain 0, if no path was specified.

Beware: This function modifies the buffer pointed to by arg!

const char * TAO::SSLIOP::Protocol_Factory::prefix ( void  ) const

virtual

Returns the prefix used by the protocol.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::register_orb_initializer ( CSIIOP::AssociationOptions  csiv2_target_supports, CSIIOP::AssociationOptions  csiv2_target_requires  )

private

Create and register the SSLIOP ORB initializer.

int TAO::SSLIOP::Protocol_Factory::requires_explicit_endpoint ( void  ) const

virtual

Implements TAO_Protocol_Factory.

Member Data Documentation

::Security::QOP TAO::SSLIOP::Protocol_Factory::qop_

private

Default quality-of-protection settings for the SSLIOP pluggable protocol.

ACE_Time_Value TAO::SSLIOP::Protocol_Factory::timeout_

private

The accept() timeout.

This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.

---

The documentation for this class was generated from the following files:

• SSLIOP_Factory.h
• SSLIOP_Factory.cpp
