TAO::SSLIOP::Accept_Strategy Class Reference

SSLIOP-specific accept strategy that builds on the TAO_Accept_Strategy implementation. More...

#include <SSLIOP_Accept_Strategy.h>

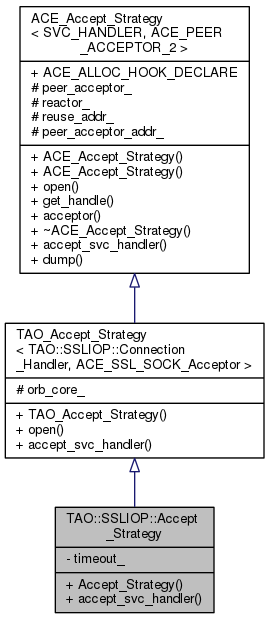

Inheritance diagram for TAO::SSLIOP::Accept_Strategy:

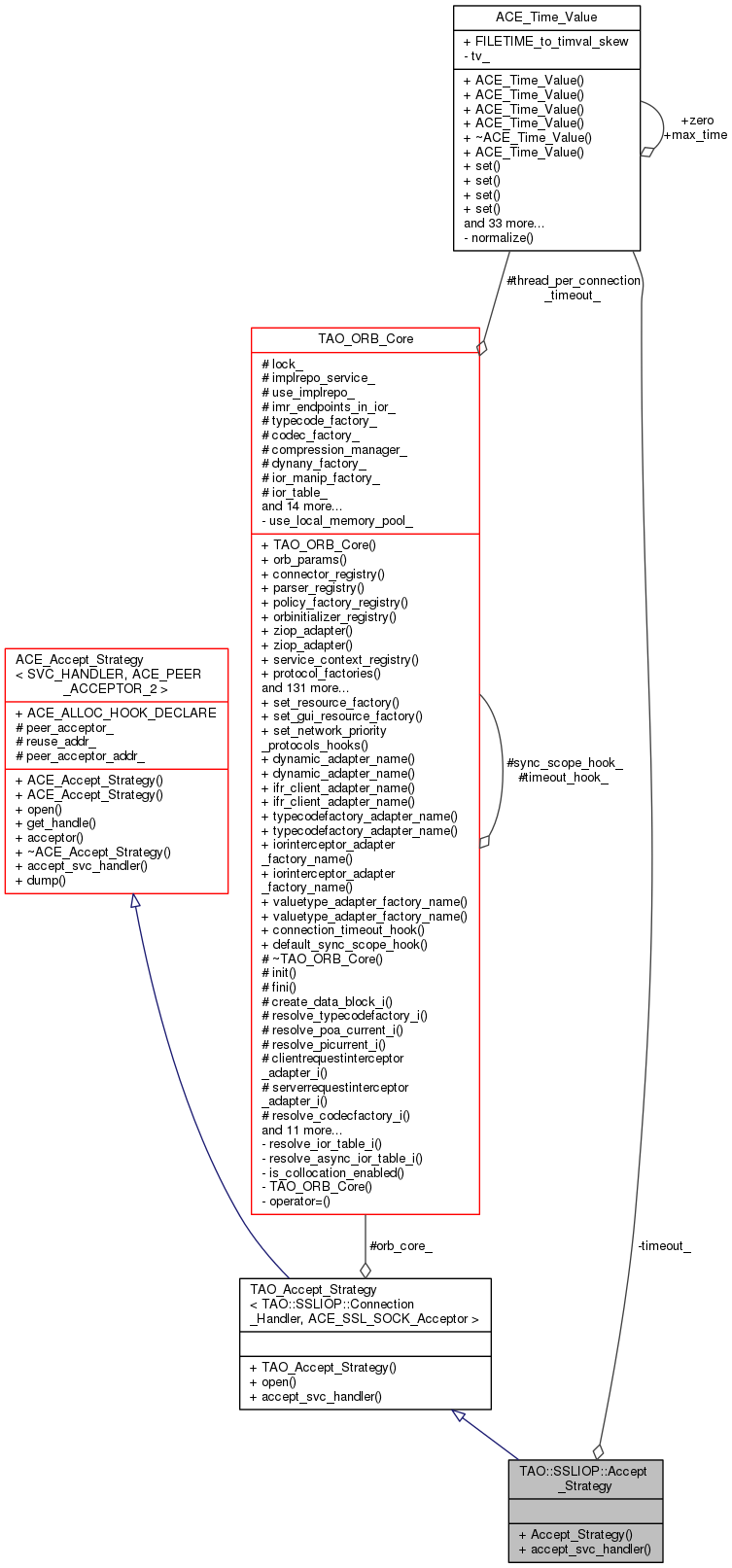

Collaboration diagram for TAO::SSLIOP::Accept_Strategy:

Public Member Functions
	Accept_Strategy (TAO_ORB_Core *orb_core, const ACE_Time_Value &timeout)
	Constructor. More...
virtual int	accept_svc_handler (handler_type *svc_handler)
Public Member Functions inherited from TAO_Accept_Strategy< TAO::SSLIOP::Connection_Handler, ACE_SSL_SOCK_Acceptor >
	TAO_Accept_Strategy (TAO_ORB_Core *orb_core)
int	open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool restart=false)
int	accept_svc_handler (SVC_HANDLER *svc_handler)
Public Member Functions inherited from ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >
	ACE_Accept_Strategy (ACE_Reactor *reactor=ACE_Reactor::instance())
	ACE_Accept_Strategy (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool restart=false, ACE_Reactor *reactor=ACE_Reactor::instance())
virtual ACE_HANDLE	get_handle (void) const
virtual ACE_PEER_ACCEPTOR &	acceptor (void) const
virtual	~ACE_Accept_Strategy (void)
void	dump (void) const

Private Attributes
const ACE_Time_Value	timeout_
	The accept() timeout. More...

Additional Inherited Members
Public Types inherited from ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >
typedef ACE_PEER_ACCEPTOR_ADDR	addr_type
typedef ACE_PEER_ACCEPTOR	acceptor_type
typedef SVC_HANDLER	handler_type
typedef SVC_HANDLER::stream_type	stream_type
Public Attributes inherited from ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >
	ACE_ALLOC_HOOK_DECLARE
Protected Types inherited from TAO_Accept_Strategy< TAO::SSLIOP::Connection_Handler, ACE_SSL_SOCK_Acceptor >
typedef ACE_Accept_Strategy < SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >	ACCEPT_STRATEGY_BASE
Protected Attributes inherited from TAO_Accept_Strategy< TAO::SSLIOP::Connection_Handler, ACE_SSL_SOCK_Acceptor >
TAO_ORB_Core *	orb_core_

Detailed Description

SSLIOP-specific accept strategy that builds on the TAO_Accept_Strategy implementation.

This accept strategy builds on on the TAO_Accept_Strategy implementation. It sub-classes that class, and overrides the accept_svc_handler() method so that a timeout value may be passed to the underlying peer acceptor. This is necessary to defend against a simple Denial-of-Service attack.

Since SSL requires two handshakes, one TCP and one SSL, it is possible for a malicious client to establish a TCP connection to the SSL port, and never complete the SSL handshake. The underlying SSL passive connection code would block/hang waiting for the SSL handshake to complete. Given enough incomplete connections where only the TCP handshake is completed, a server process could potentially run out of available file descriptors, thus preventing legitimate client connections from being established.

.

The timeout defense alluded to above bounds the time this sort of DoS attack lasts.

Constructor & Destructor Documentation

TAO::SSLIOP::Accept_Strategy::Accept_Strategy	(	TAO_ORB_Core *	orb_core,
		const ACE_Time_Value &	timeout
	)

Constructor.

Member Function Documentation

int TAO::SSLIOP::Accept_Strategy::accept_svc_handler ( handler_type *  svc_handler )

virtual

Overridden method that forces a passive connection timeout value to be passed to the underlying acceptor.

Member Data Documentation

const ACE_Time_Value TAO::SSLIOP::Accept_Strategy::timeout_

private

The accept() timeout.

This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.

---

The documentation for this class was generated from the following files:

• SSLIOP_Accept_Strategy.h
• SSLIOP_Accept_Strategy.cpp
