DAnCE::DAnCE_LocalityActivator_i Class Reference

Default server activator for CIAO component servers. More...

#include <LocalityActivator_Impl.h>

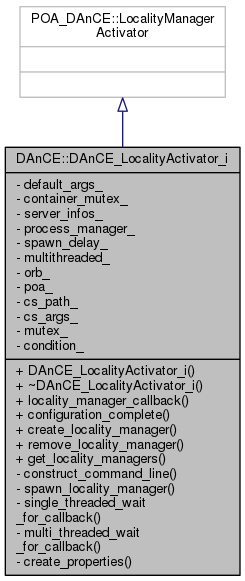

Inheritance diagram for DAnCE::DAnCE_LocalityActivator_i:

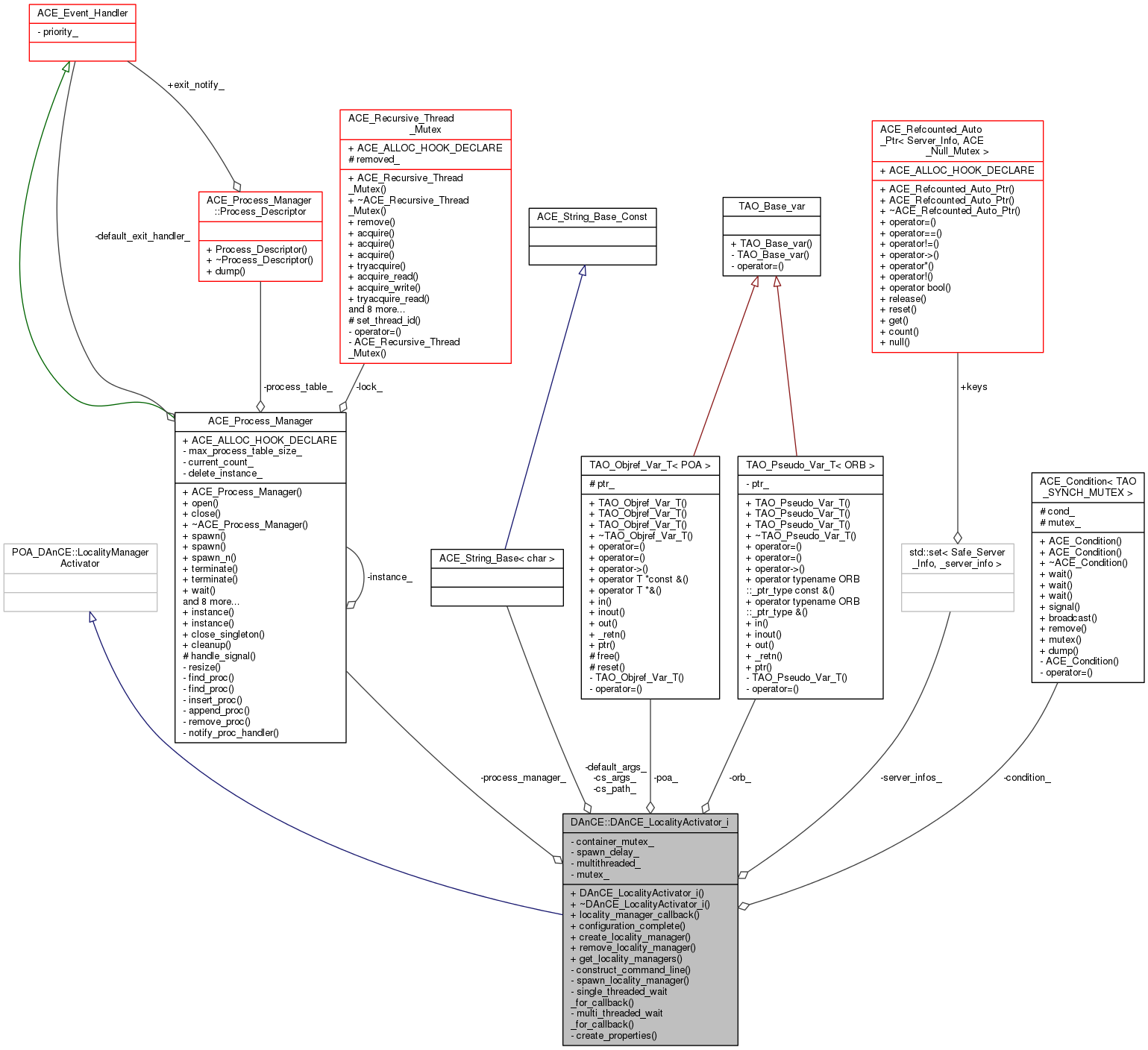

Collaboration diagram for DAnCE::DAnCE_LocalityActivator_i:

Classes
struct	_server_info
class	Server_Child_Handler
	The exit handler class for the locality manager child process to detect and report process exit. More...
struct	Server_Info

Public Member Functions
	DAnCE_LocalityActivator_i (CORBA::ULong def_spawn_delay, const char *default_cs_path, const char *cs_args, bool multithreaded, CORBA::ORB_ptr orb, PortableServer::POA_ptr poa_)
	Constructor. More...
virtual	~DAnCE_LocalityActivator_i (void)
	Destructor. More...
virtual void	locality_manager_callback (::DAnCE::LocalityManager_ptr serverref, const char *server_UUID,::Deployment::Properties_out config)
virtual void	configuration_complete (const char *server_UUID)
::DAnCE::LocalityManager_ptr	create_locality_manager (const ::Deployment::DeploymentPlan &plan, CORBA::ULong instanceRef, const ::Deployment::Properties &config)
void	remove_locality_manager (::DAnCE::LocalityManager_ptr server)
::DAnCE::LocalityManager *	get_locality_managers (void)

Private Types
typedef ACE_Refcounted_Auto_Ptr < Server_Info, ACE_Null_Mutex >	Safe_Server_Info
typedef std::set < Safe_Server_Info, _server_info >	SERVER_INFOS

Private Member Functions
ACE_CString	construct_command_line (Server_Info &si)
pid_t	spawn_locality_manager (Server_Child_Handler *exit_handler, const ACE_CString &cmd_line)
void	single_threaded_wait_for_callback (const Server_Info &si, ACE_Time_Value &timeout)
void	multi_threaded_wait_for_callback (Server_Info &si, ACE_Time_Value &timeout)
void	create_properties (const Server_Info &info, Deployment::Properties_out config)

Private Attributes
ACE_CString	default_args_
	Default args to pass to all componentservers. More...
TAO_SYNCH_MUTEX	container_mutex_
SERVER_INFOS	server_infos_
ACE_Process_Manager	process_manager_
CORBA::ULong	spawn_delay_
bool	multithreaded_
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
ACE_CString	cs_path_
ACE_CString	cs_args_
TAO_SYNCH_MUTEX	mutex_
ACE_Condition< TAO_SYNCH_MUTEX >	condition_

Detailed Description

Default server activator for CIAO component servers.

Author

William R. Otte wotte.nosp@m.@dre.nosp@m..vand.nosp@m.erbi.nosp@m.lt.ed.nosp@m.u Implements the default component server activation strategy which is to spawn new processes. This is not thread-safe, nor is it intended to be. Containers are reated serially, so there will be only one actor modifying data at a particular point in time.

Member Typedef Documentation

typedef ACE_Refcounted_Auto_Ptr<Server_Info, ACE_Null_Mutex> DAnCE::DAnCE_LocalityActivator_i::Safe_Server_Info

private

typedef std::set<Safe_Server_Info, _server_info> DAnCE::DAnCE_LocalityActivator_i::SERVER_INFOS

private

Constructor & Destructor Documentation

DAnCE::DAnCE_LocalityActivator_i::DAnCE_LocalityActivator_i	(	CORBA::ULong	def_spawn_delay,
		const char *	default_cs_path,
		const char *	cs_args,
		bool	multithreaded,
		CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa_
	)

Constructor.

DAnCE::DAnCE_LocalityActivator_i::~DAnCE_LocalityActivator_i ( void  )

virtual

Destructor.

Member Function Documentation

void DAnCE::DAnCE_LocalityActivator_i::configuration_complete ( const char *  server_UUID )

virtual

ACE_CString DAnCE::DAnCE_LocalityActivator_i::construct_command_line ( Server_Info &  si )

private

Builds command line options based on configuration information. May modify the uuid of the component server.

DAnCE::LocalityManager_ptr DAnCE::DAnCE_LocalityActivator_i::create_locality_manager	(	const ::Deployment::DeploymentPlan &	plan,
		CORBA::ULong	instanceRef,
		const ::Deployment::Properties &	config
	)

void DAnCE::DAnCE_LocalityActivator_i::create_properties ( const Server_Info &  info, Deployment::Properties_out  config  )

private

::DAnCE::LocalityManager* DAnCE::DAnCE_LocalityActivator_i::get_locality_managers

(

void

)

void DAnCE::DAnCE_LocalityActivator_i::locality_manager_callback ( ::DAnCE::LocalityManager_ptr  serverref, const char *  server_UUID, ::Deployment::Properties_out  config  )

virtual

void DAnCE::DAnCE_LocalityActivator_i::multi_threaded_wait_for_callback ( Server_Info &  si, ACE_Time_Value &  timeout  )

private

This method is only applicable when our program is configured as multiple threaded. Internally it waits on a conditional variable that could be modified by the callback servant which runs in another thread

void DAnCE::DAnCE_LocalityActivator_i::remove_locality_manager

(

::DAnCE::LocalityManager_ptr

server

)

void DAnCE::DAnCE_LocalityActivator_i::single_threaded_wait_for_callback ( const Server_Info &  si, ACE_Time_Value &  timeout  )

private

This method is only applicable when our program is configured as singled threaded . Internally it uses a perform_work blocking call to wait for NA object to call back

pid_t DAnCE::DAnCE_LocalityActivator_i::spawn_locality_manager ( Server_Child_Handler *  exit_handler, const ACE_CString &  cmd_line  )

private

Spawns the component server process, but does not wait for it to call back.

Member Data Documentation

ACE_Condition<TAO_SYNCH_MUTEX> DAnCE::DAnCE_LocalityActivator_i::condition_

private

TAO_SYNCH_MUTEX DAnCE::DAnCE_LocalityActivator_i::container_mutex_

private

ACE_CString DAnCE::DAnCE_LocalityActivator_i::cs_args_

private

ACE_CString DAnCE::DAnCE_LocalityActivator_i::cs_path_

private

ACE_CString DAnCE::DAnCE_LocalityActivator_i::default_args_

private

Default args to pass to all componentservers.

bool DAnCE::DAnCE_LocalityActivator_i::multithreaded_

private

TAO_SYNCH_MUTEX DAnCE::DAnCE_LocalityActivator_i::mutex_

private

CORBA::ORB_var DAnCE::DAnCE_LocalityActivator_i::orb_

private

PortableServer::POA_var DAnCE::DAnCE_LocalityActivator_i::poa_

private

ACE_Process_Manager DAnCE::DAnCE_LocalityActivator_i::process_manager_

private

SERVER_INFOS DAnCE::DAnCE_LocalityActivator_i::server_infos_

private

CORBA::ULong DAnCE::DAnCE_LocalityActivator_i::spawn_delay_

private

---

The documentation for this class was generated from the following files:

• LocalityActivator_Impl.h
• LocalityActivator_Impl.cpp
