TAO_EC_Gateway_Sched Class Reference

Extend the EC_Gateway_IIOP interface to support scheduling. More...

#include <EC_Gateway_Sched.h>

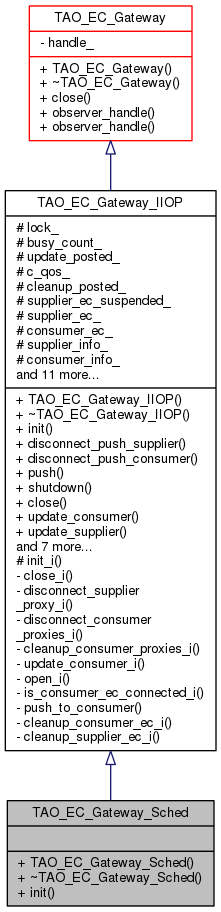

Inheritance diagram for TAO_EC_Gateway_Sched:

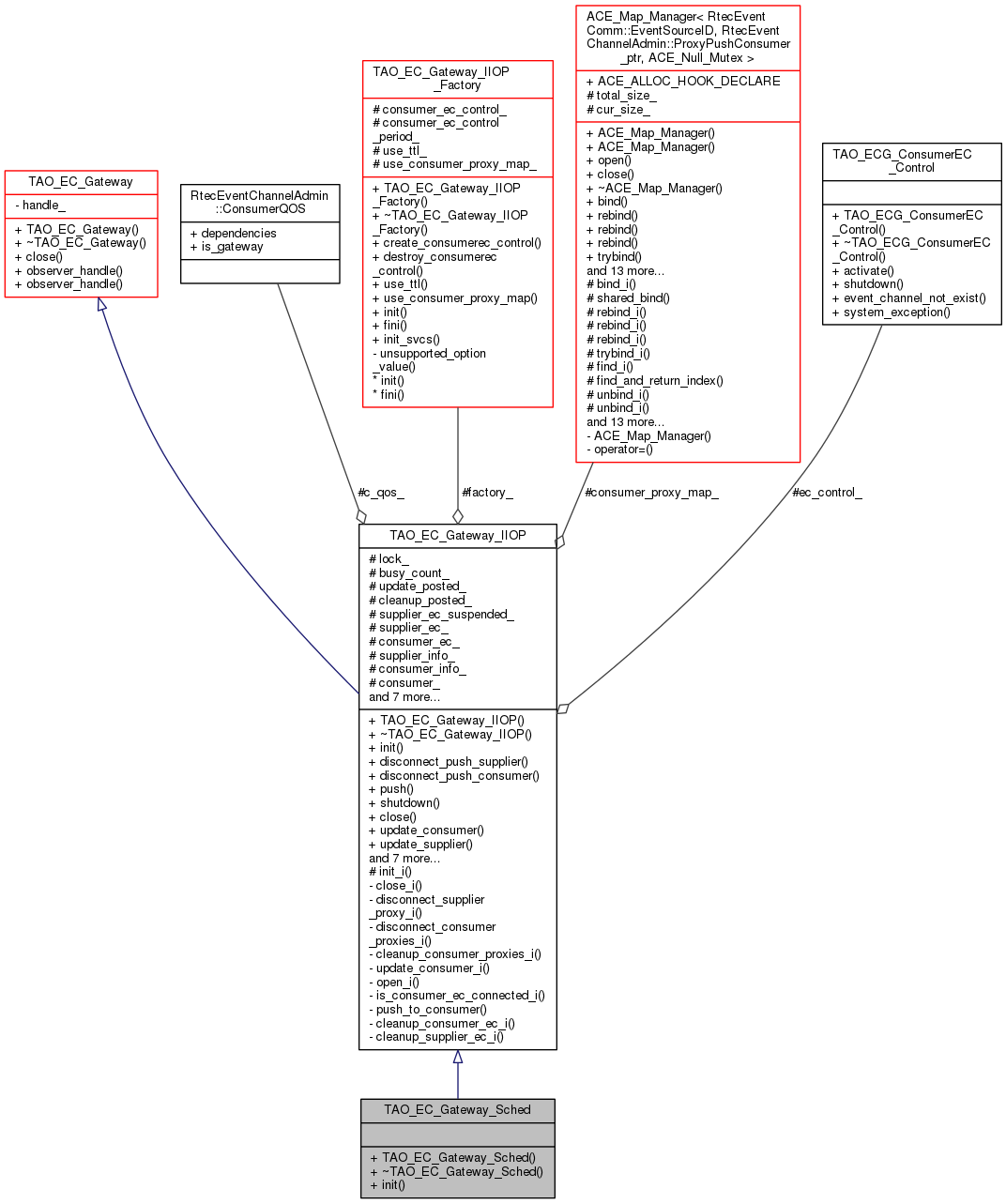

Collaboration diagram for TAO_EC_Gateway_Sched:

Public Member Functions
	TAO_EC_Gateway_Sched (void)
	~TAO_EC_Gateway_Sched (void)
void	init (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec, RtecScheduler::Scheduler_ptr supplier_sched, RtecScheduler::Scheduler_ptr consumer_sched, const char *consumer_name, const char *supplier_name)
Public Member Functions inherited from TAO_EC_Gateway_IIOP
	TAO_EC_Gateway_IIOP (void)
virtual	~TAO_EC_Gateway_IIOP (void)
int	init (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec)
void	disconnect_push_supplier (void)
	The channel is disconnecting. More...
void	disconnect_push_consumer (void)
	The channel is disconnecting. More...
void	push (const RtecEventComm::EventSet &events)
int	shutdown (void)
	Disconnect and shutdown the gateway. More...
virtual void	close (void)
virtual void	update_consumer (const RtecEventChannelAdmin::ConsumerQOS &sub)
virtual void	update_supplier (const RtecEventChannelAdmin::SupplierQOS &pub)
void	reconnect_consumer_ec (void)
CORBA::Boolean	consumer_ec_non_existent (CORBA::Boolean_out disconnected)
	Check whether the consumer event channel is non existent or not. More...
void	cleanup_consumer_proxies (void)
int	cleanup_consumer_ec (void)
int	cleanup_supplier_ec (void)
void	suspend_supplier_ec (void)
	Suspend the connection to the supplier ec. More...
void	resume_supplier_ec (void)
	Resume the connection to the supplier ec. More...
Public Member Functions inherited from TAO_EC_Gateway
	TAO_EC_Gateway (void)
	Default constructor. More...
virtual	~TAO_EC_Gateway (void)
	Destructor. More...
void	observer_handle (RtecEventChannelAdmin::Observer_Handle h)
	Obtain and modify the observer handle. More...
RtecEventChannelAdmin::Observer_Handle	observer_handle (void) const

Additional Inherited Members
Protected Types inherited from TAO_EC_Gateway_IIOP
typedef ACE_Map_Manager < RtecEventComm::EventSourceID, RtecEventChannelAdmin::ProxyPushConsumer_ptr, ACE_Null_Mutex >	Consumer_Map
typedef ACE_Map_Iterator < RtecEventComm::EventSourceID, RtecEventChannelAdmin::ProxyPushConsumer_ptr, ACE_Null_Mutex >	Consumer_Map_Iterator
Protected Member Functions inherited from TAO_EC_Gateway_IIOP
int	init_i (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec)
	Do the real work in init() More...
Protected Attributes inherited from TAO_EC_Gateway_IIOP
TAO_SYNCH_MUTEX	lock_
	Lock to synchronize internal changes. More...
CORBA::ULong	busy_count_
int	update_posted_
RtecEventChannelAdmin::ConsumerQOS	c_qos_
int	cleanup_posted_
int	supplier_ec_suspended_
RtecEventChannelAdmin::EventChannel_var	supplier_ec_
RtecEventChannelAdmin::EventChannel_var	consumer_ec_
	The event channel acting as consumer of this gateway. More...
RtecBase::handle_t	supplier_info_
	Our RT_Infos for the event channel that is the supplier. More...
RtecBase::handle_t	consumer_info_
	Our RT_Infos for the event channel that is the consumer. More...
ACE_PushConsumer_Adapter < TAO_EC_Gateway_IIOP >	consumer_
	Our consumer personality.... More...
bool	consumer_is_active_
	If it is true then we must deactivate the consumer. More...
ACE_PushSupplier_Adapter < TAO_EC_Gateway_IIOP >	supplier_
	Our supplier personality.... More...
bool	supplier_is_active_
	If it is true then we must deactivate the supplier. More...
Consumer_Map	consumer_proxy_map_
RtecEventChannelAdmin::ProxyPushConsumer_var	default_consumer_proxy_
RtecEventChannelAdmin::ProxyPushSupplier_var	supplier_proxy_
TAO_ECG_ConsumerEC_Control *	ec_control_
TAO_EC_Gateway_IIOP_Factory *	factory_
	The Gateway IIOP Factory for all the settings. More...
int	use_ttl_
	If 1, we use the TTL flags, if 0, we just ignore TTL. More...
int	use_consumer_proxy_map_

Detailed Description

Extend the EC_Gateway_IIOP interface to support scheduling.

Constructor & Destructor Documentation

TAO_EC_Gateway_Sched::TAO_EC_Gateway_Sched

(

void

)

TAO_EC_Gateway_Sched::~TAO_EC_Gateway_Sched

(

void

)

Member Function Documentation

void TAO_EC_Gateway_Sched::init	(	RtecEventChannelAdmin::EventChannel_ptr	supplier_ec,
		RtecEventChannelAdmin::EventChannel_ptr	consumer_ec,
		RtecScheduler::Scheduler_ptr	supplier_sched,
		RtecScheduler::Scheduler_ptr	consumer_sched,
		const char *	consumer_name,
		const char *	supplier_name
	)

To do its job this class requires to know the local and remote ECs it will connect to; furthermore it also requires to build RT_Infos for the local and remote schedulers.

Todo:

part of the RT_Info is hardcoded, we need to make it parametric.

---

The documentation for this class was generated from the following files:

• EC_Gateway_Sched.h
• EC_Gateway_Sched.cpp
