The bitmask filter. More...

#include <EC_Bitmask_Filter.h>

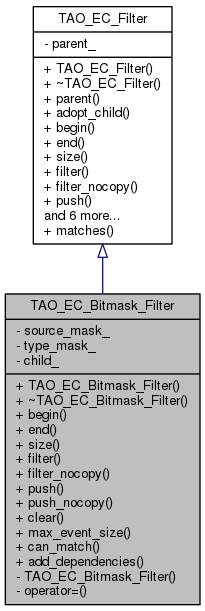

Inheritance diagram for TAO_EC_Bitmask_Filter:

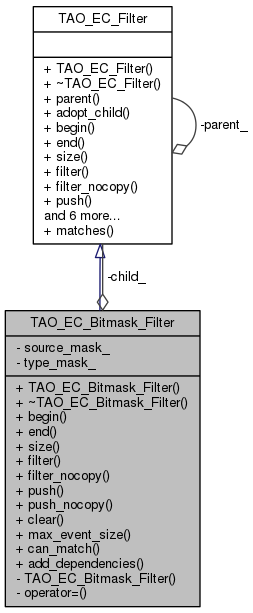

Collaboration diagram for TAO_EC_Bitmask_Filter:

Public Member Functions
	TAO_EC_Bitmask_Filter (CORBA::ULong source_mask, CORBA::ULong type_mask, TAO_EC_Filter *child)

virtual	~TAO_EC_Bitmask_Filter (void)
	Destructor. More...

virtual ChildrenIterator	begin (void) const

virtual ChildrenIterator	end (void) const

virtual int	size (void) const

virtual int	filter (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual int	filter_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	push (const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	push_nocopy (RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info)

virtual void	clear (void)

virtual CORBA::ULong	max_event_size (void) const
	Returns the maximum size of the events pushed by this filter. More...

virtual int	can_match (const RtecEventComm::EventHeader &header) const

virtual int	add_dependencies (const RtecEventComm::EventHeader &header, const TAO_EC_QOS_Info &qos_info)

Public Member Functions inherited from TAO_EC_Filter
	TAO_EC_Filter (void)
	constructor... More...

virtual	~TAO_EC_Filter (void)
	destructor... More...

TAO_EC_Filter *	parent (void) const
	Obtain the parent of this filter. More...

void	adopt_child (TAO_EC_Filter *child)
	Become the parent of child. More...

virtual void	get_qos_info (TAO_EC_QOS_Info &qos_info)

Private Member Functions
	TAO_EC_Bitmask_Filter (const TAO_EC_Bitmask_Filter &)

TAO_EC_Bitmask_Filter &	operator= (const TAO_EC_Bitmask_Filter &)

Private Attributes
CORBA::ULong	source_mask_
	The bitmasks. More...

CORBA::ULong	type_mask_

TAO_EC_Filter *	child_
	The children. More...

Additional Inherited Members
Public Types inherited from TAO_EC_Filter
typedef TAO_EC_Filter *	value_type

typedef TAO_EC_Filter *const	const_value_type

typedef const_value_type *	ChildrenIterator

Static Public Member Functions inherited from TAO_EC_Filter
static int	matches (const RtecEventComm::EventHeader &rhs, const RtecEventComm::EventHeader &lhs)

Detailed Description

The bitmask filter.

This filter quickly rejects events that do not match a given bitmask. If the event is not rejected based on the mask then the child is consulted to finally accept or reject the event. When composed with the Null_Filter it accepts any events that satisfy: (event.header.type & type_mask) != 0 && (event.header.type & source_mask) != 0

Memory Management

It assumes ownership of the child.

Constructor & Destructor Documentation

TAO_EC_Bitmask_Filter::TAO_EC_Bitmask_Filter	(	CORBA::ULong	source_mask,
		CORBA::ULong	type_mask,
		TAO_EC_Filter *	child
	)

Constructor. Events that do not satisfy:

(e.header.source & source_mask) != 0 && (e.header.type & type_mask) != 0

are immediately rejected, other events are recursively tested using the child node. It assumes ownership of the child.

TAO_EC_Bitmask_Filter::~TAO_EC_Bitmask_Filter ( void )

virtual

Destructor.

TAO_EC_Bitmask_Filter::TAO_EC_Bitmask_Filter ( const TAO_EC_Bitmask_Filter & )

private

Member Function Documentation

int TAO_EC_Bitmask_Filter::add_dependencies	(	const RtecEventComm::EventHeader &	header,
		const TAO_EC_QOS_Info &	qos_info
	)

virtual

This is used for computing the scheduling dependencies:

Leaf filters check if the header could be matched, similar to the can_match() method; if it does they return 1, and 0 otherwise. Intermediate nodes always return 0.

This is used to build precise dependencies between the suppliers and the leaf of the filters that accept that event. Notice that only the nodes doing scheduling recurse through the list, so in configurations that do no require scheduling the recursion stops fairly soon.

Implements TAO_EC_Filter.

TAO_EC_Filter::ChildrenIterator TAO_EC_Bitmask_Filter::begin ( void ) const

virtual

STL-like iterators Filters follow the Composite pattern. All filters expose the same interface as if they all had children, but for simple filters the iterators return an empty range.

Reimplemented from TAO_EC_Filter.

int TAO_EC_Bitmask_Filter::can_match ( const RtecEventComm::EventHeader & header ) const

virtual

Returns 0 if an event with that header could never be accepted. This can used by the suppliers to filter out consumers that couldn't possibly be interested in their events. The rt_info and

Implements TAO_EC_Filter.

void TAO_EC_Bitmask_Filter::clear ( void )

virtual

Clear any saved state, must reset and assume no events have been received.

Implements TAO_EC_Filter.

TAO_EC_Filter::ChildrenIterator TAO_EC_Bitmask_Filter::end ( void ) const

virtual

Reimplemented from TAO_EC_Filter.

int TAO_EC_Bitmask_Filter::filter	(	const RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Filter this event, returns 1 if the event is accepted, 0 otherwise. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Attention: There seems to be a disparity in interfaces: Supplier always push event sets of size 1 to the EC_ProxyPushSupplier, and EC_Filters do not implement handling of sets of more than 1 event. Then, why is this not enforced by the interface by having EC_ProxyPushSupplier take an event rather than a set?

Implements TAO_EC_Filter.

int TAO_EC_Bitmask_Filter::filter_nocopy	(	RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Implements TAO_EC_Filter.

CORBA::ULong TAO_EC_Bitmask_Filter::max_event_size ( void ) const

virtual

Returns the maximum size of the events pushed by this filter.

Implements TAO_EC_Filter.

TAO_EC_Bitmask_Filter& TAO_EC_Bitmask_Filter::operator= ( const TAO_EC_Bitmask_Filter & )

private

void TAO_EC_Bitmask_Filter::push	(	const RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

This is called by the children when they accept an event and which to pass it up. Notice that there are two versions of the method, if the event is not const then filter can take ownership of the event.

Implements TAO_EC_Filter.

void TAO_EC_Bitmask_Filter::push_nocopy	(	RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &	qos_info
	)

virtual

Implements TAO_EC_Filter.

int TAO_EC_Bitmask_Filter::size ( void ) const

virtual

Reimplemented from TAO_EC_Filter.

Member Data Documentation

TAO_EC_Filter* TAO_EC_Bitmask_Filter::child_

private

The children.

CORBA::ULong TAO_EC_Bitmask_Filter::source_mask_

private

The bitmasks.

CORBA::ULong TAO_EC_Bitmask_Filter::type_mask_

private

The documentation for this class was generated from the following files:
