Base class abstraction for Events flowing through the EventChannel. More...

#include <Event.h>

Inheritance diagram for TAO_Notify_Event:

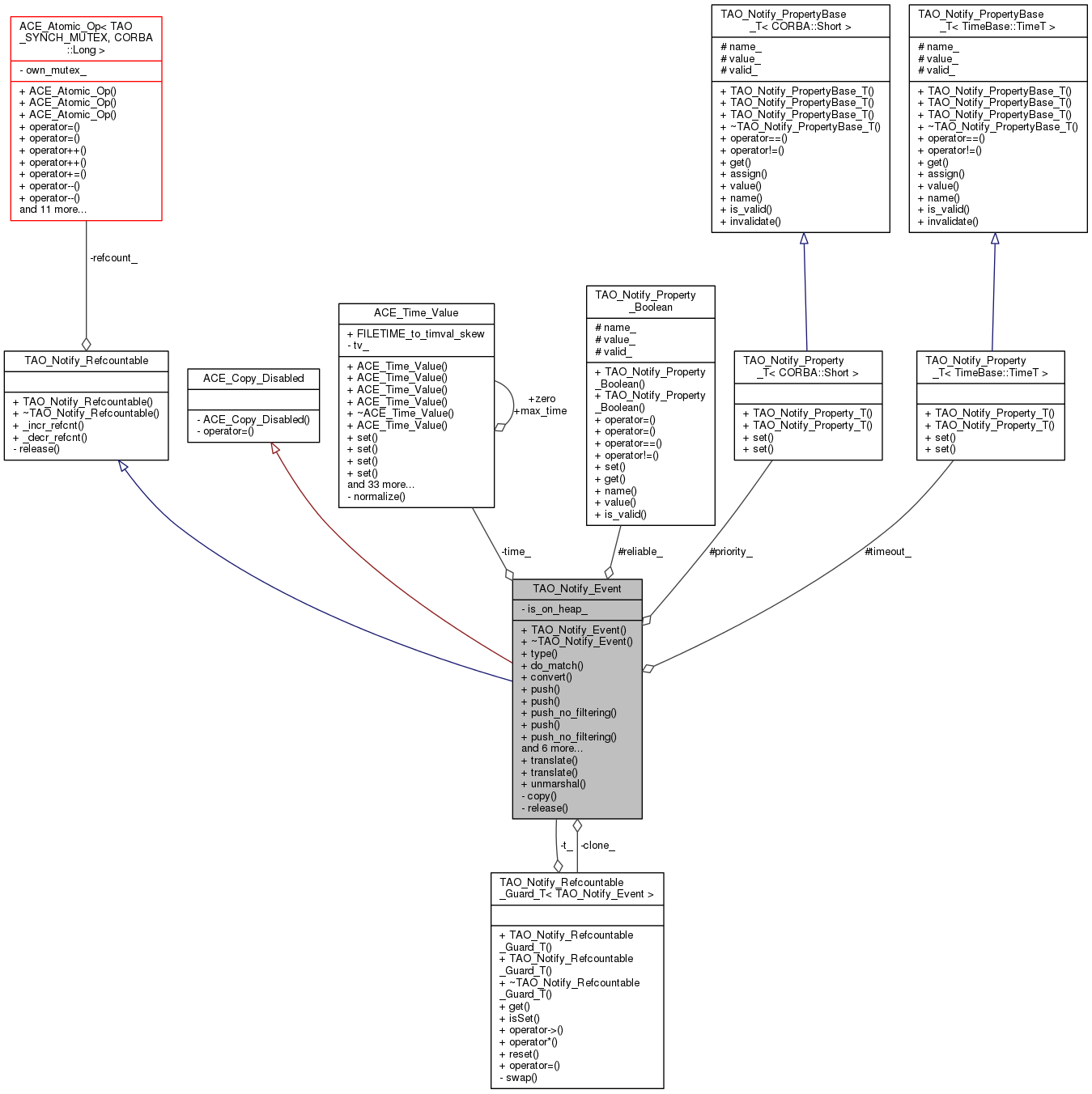

Collaboration diagram for TAO_Notify_Event:

Public Types
enum	{ MARSHAL_ANY =1, MARSHAL_STRUCTURED =2 }

typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Event >	Ptr

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_Event (void)
	Constructor. More...

virtual	~TAO_Notify_Event ()
	Destructor. More...

virtual const TAO_Notify_EventType &	type (void) const =0
	Get the event type. More...

virtual CORBA::Boolean	do_match (CosNotifyFilter::Filter_ptr filter) const =0
	Returns true if the filter matches. More...

virtual void	convert (CosNotification::StructuredEvent &notification) const =0
	Convert to CosNotification::Structured type. More...

virtual void	push (TAO_Notify_Consumer *consumer) const =0
	Push event to consumer. More...

virtual void	push (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface. More...

virtual void	push_no_filtering (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface. More...

virtual void	push (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface. More...

virtual void	push_no_filtering (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface. More...

TAO_Notify_Event *	queueable_copy (void) const

virtual void	marshal (TAO_OutputCDR &cdr) const =0
	marshal this event into a CDR buffer (for persistence) More...

const TAO_Notify_Property_Short &	priority (void) const

const TAO_Notify_Property_Time &	timeout (void) const
	Timeout. More...

const TAO_Notify_Property_Boolean &	reliable (void) const
	Reliable. More...

const ACE_Time_Value &	creation_time (void) const
	Event creation time. More...

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt (void)

CORBA::ULong	_decr_refcnt (void)

Static Public Member Functions
static void	translate (const CORBA::Any &any, CosNotification::StructuredEvent &notification)
	Translate Any to Structured. More...

static void	translate (const CosNotification::StructuredEvent &notification, CORBA::Any &any)
	Translate Structured to Any. More...

static TAO_Notify_Event *	unmarshal (TAO_InputCDR &cdr)
	Unmarshal an event from a CDR. (for persistence) More...

Protected Attributes
TAO_Notify_Property_Short	priority_
	= QoS properties More...

TAO_Notify_Property_Time	timeout_
	Timeout. More...

TAO_Notify_Property_Boolean	reliable_
	Reliability. More...

Private Member Functions
virtual TAO_Notify_Event *	copy (void) const =0
	Return a pointer to a copy of this event on the heap. More...

virtual void	release (void)
	The release method is called when the refcount reaches 0. More...

Private Attributes
Ptr	clone_

bool	is_on_heap_

ACE_Time_Value	time_

Detailed Description

Base class abstraction for Events flowing through the EventChannel.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Event> TAO_Notify_Event::Ptr

Member Enumeration Documentation

anonymous enum

Enumerator
MARSHAL_ANY
MARSHAL_STRUCTURED

Constructor & Destructor Documentation

TAO_Notify_Event::TAO_Notify_Event ( void )

Constructor.

TAO_Notify_Event::~TAO_Notify_Event ( )

virtual

Destructor.

Member Function Documentation

virtual void TAO_Notify_Event::convert ( CosNotification::StructuredEvent & notification ) const

pure virtual

Convert to CosNotification::Structured type.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual TAO_Notify_Event* TAO_Notify_Event::copy ( void ) const

privatepure virtual

Return a pointer to a copy of this event on the heap.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

const ACE_Time_Value & TAO_Notify_Event::creation_time ( void ) const

Event creation time.

virtual CORBA::Boolean TAO_Notify_Event::do_match ( CosNotifyFilter::Filter_ptr filter ) const

pure virtual

Returns true if the filter matches.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::marshal ( TAO_OutputCDR & cdr ) const

pure virtual

marshal this event into a CDR buffer (for persistence)

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

const TAO_Notify_Property_Short & TAO_Notify_Event::priority ( void ) const

= Accessors Priority

virtual void TAO_Notify_Event::push ( TAO_Notify_Consumer * consumer ) const

pure virtual

Push event to consumer.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ) const

pure virtual

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ) const

pure virtual

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ) const

pure virtual

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ) const

pure virtual

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

TAO_Notify_Event * TAO_Notify_Event::queueable_copy ( void ) const

Return a pointer to a copy of this event on the heap. The event is not owned by the caller, so it should not be deleted or released.

void TAO_Notify_Event::release ( void )

privatevirtual

The release method is called when the refcount reaches 0.

Implements TAO_Notify_Refcountable.

const TAO_Notify_Property_Boolean & TAO_Notify_Event::reliable ( void ) const

Reliable.

const TAO_Notify_Property_Time & TAO_Notify_Event::timeout ( void ) const

Timeout.

void TAO_Notify_Event::translate	(	const CORBA::Any &	any,
		CosNotification::StructuredEvent &	notification
	)

static

Translate Any to Structured.

void TAO_Notify_Event::translate	(	const CosNotification::StructuredEvent &	notification,
		CORBA::Any &	any
	)

static

Translate Structured to Any.

virtual const TAO_Notify_EventType& TAO_Notify_Event::type ( void ) const

pure virtual

Get the event type.

Implemented in TAO_Notify_StructuredEvent_No_Copy, and TAO_Notify_AnyEvent_No_Copy.

TAO_Notify_Event * TAO_Notify_Event::unmarshal ( TAO_InputCDR & cdr )

static

Unmarshal an event from a CDR. (for persistence)

Member Data Documentation

Ptr TAO_Notify_Event::clone_

mutableprivate

bool TAO_Notify_Event::is_on_heap_

private

TAO_Notify_Property_Short TAO_Notify_Event::priority_

protected

= QoS properties

Priority.

TAO_Notify_Property_Boolean TAO_Notify_Event::reliable_

protected

Reliability.

ACE_Time_Value TAO_Notify_Event::time_

private

TAO_Notify_Property_Time TAO_Notify_Event::timeout_

protected

Timeout.

The documentation for this class was generated from the following files:
